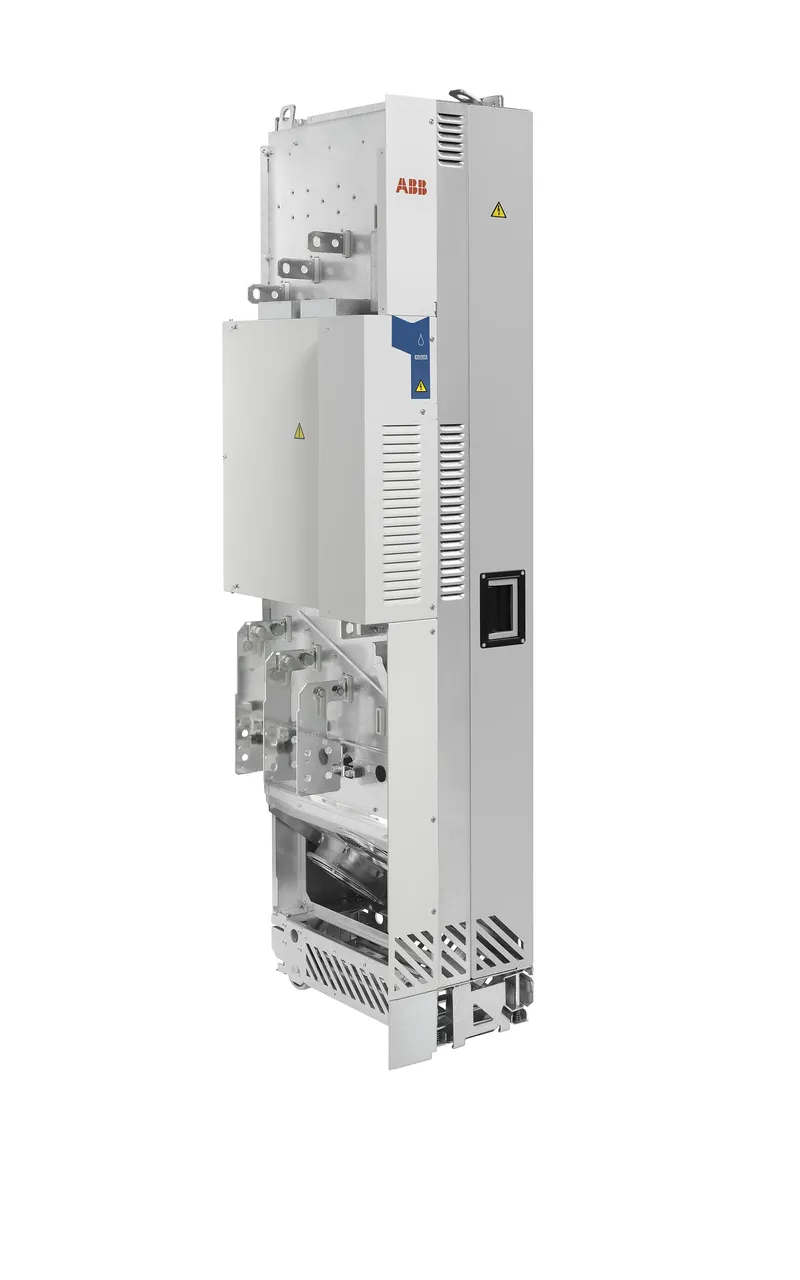

ABB ACQ580-04-725A-4

LV AC wall-mounted drive for water and wastewater, UL: Pld 600 Hp, 705 A, 460 V ( )

MPN: ACQ580-04-725A-4
Category: ACQ580-04

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACQ580-04-725A-4?

The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.

Specifications

Ordering

Customs Tariff Number	85044080
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-04-725A-4, PLD 600HP, I2LD 705A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	441 lb
Product Net Depth / Length	21 in
Product Net Height	66.88 in
Product Net Width	12.2 in

Technical

Number of Phases	3-phase
Degree of Protection	IP00
Enclosure Type NEMA	Open Type
Frequency (f)	50/60 Hz Hz
Frame Size	Undefined
Input Voltage (Uin)	440 … 480 V V

Technical UL

Output Current, Heavy-Duty Use (UL)	600 A A
Output Current, Light-Overload Use (UL)	705 A A
Output Power, Heavy-Duty Use (UL)	600 Hp
Output Power, Light-Overload Use (UL)	600 Hp

External Classifications and Standards

UNSPSC

39121007
