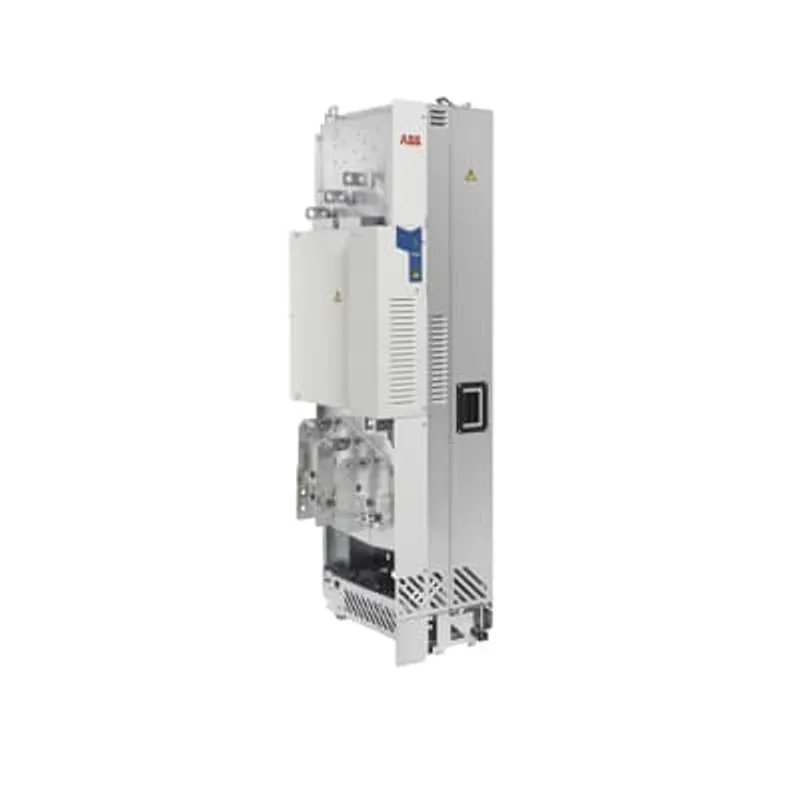

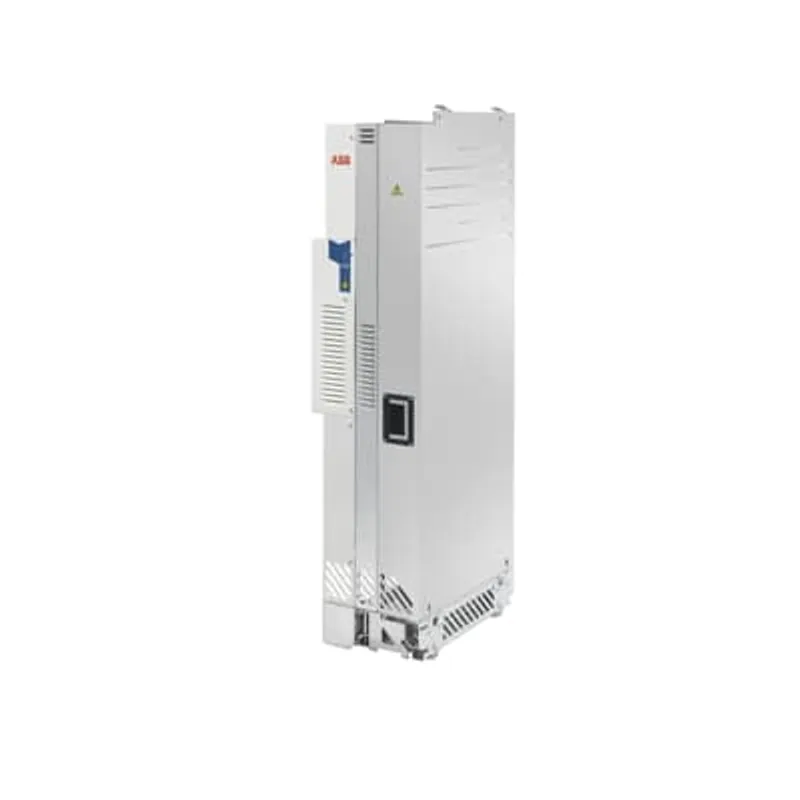

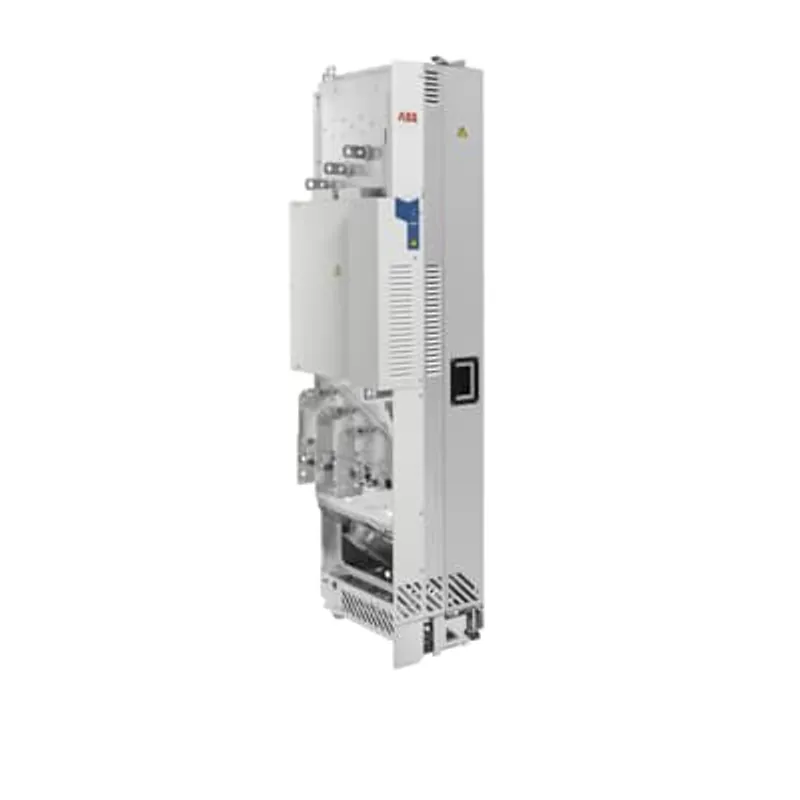

ABB ACQ580-04-585A-4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drive module for water and wastewater |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 357 kg |
Shipping & availability
When can ACQ580-04-585A-4 be shipped?
ACQ580-04-585A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACQ580-04-585A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACQ580-04-585A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ580-04-585A-4, subject to availability and destination.
The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Specifications
Specifications
| Customs Tariff Number | 85044080 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACQ580-04-585A-4, PLD 450HP, I2LD 573A |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 357 lb |
| Product Net Depth / Length | 21 in |
| Product Net Height | 59 in |
| Product Net Width | 12.2 in |
| Number of Phases | 3-phase |
| Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type |
| Frequency (f) | 50/60 Hz |
| Frame Size | Undefined |
| Input Voltage (Uin) | 440 … 480 V |
| Output Current, Heavy-Duty Use (UL) | 450 A |
| Output Current, Light-Overload Use (UL) | 573 A |
| Output Power, Heavy-Duty Use (UL) | 450 Hp |
| Output Power, Light-Overload Use (UL) | 450 Hp |
| UNSPSC | 39121007 |
