ABB 1SFL457010R7011

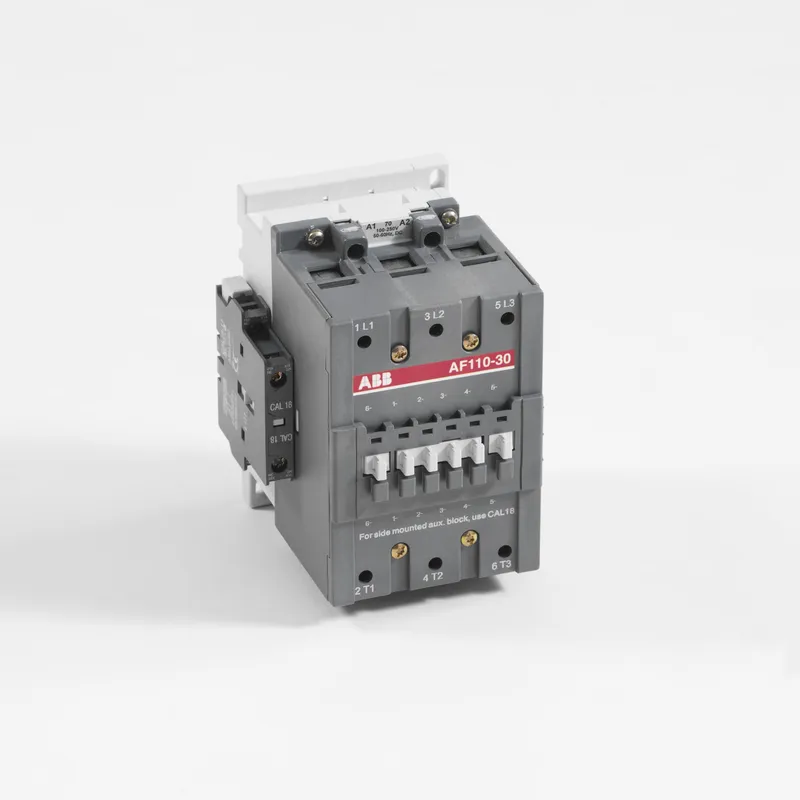

AF110-30-11RT 100-250V Contactor
- MPN
- 1SFL457010R7011
- EAN
- 7320500237236
- Category
- ABB AF Contactors
Price and lead time confirmed within 1 business day
Discontinued by ABB — we can still source the original 1SFL457010R7011 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB 1SFL457010R7011?
A 3-pole contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 600 V. Operated with 48 ... 130 V, 50Hz/60Hz and DC. Equipped with 1 N.O and 1 N.C. auxiliary contacts.
Lifecycle: ABB lists this product as inactive (discontinued). PartnerPLC sources discontinued ABB parts — request a quote for availability, or ask us about the current ABB successor.
Specifications
General
| Order code (ABB product ID) | 1SFL457010R7011 |
| Type | AF110-30-11RT 100-250V |
| Lifecycle | Discontinued (inactive at ABB) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Replacement Product ID (NEW) | 1SFL427002R1311 |
Dimensions
| Product Net Width | 102 mm |
| Product Net Depth / Length | 123.5 mm |
| Product Net Height | 148 mm |
| Product Net Weight | 1.9 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Current AC-1 (I<sub>e</sub>) | (690 V) 40 °C 160 A, (690 V) 55 °C 145 A, (690 V) 70 °C 130 A |
| Rated Operational Current AC-3 (I<sub>e</sub>) | (415 V) 55 °C 110 A, (440 V) 55 °C 100 A, (500 V) 55 °C 100 A, (690 V) 55 °C 82 A, (1000 V) 55 °C 30 A, (380 / 400 V) 55 °C 110 A, (220 / 230 / 240 V) 55 °C 110 |
| Rated Operational Power AC-3 (P<sub>e</sub>) | (415 V) 59 kW, (440 V) 59 kW, (500 V) 59 kW, (690 V) 75 kW, (1000 V) 40 kW, (380 / 400 V) 55 kW, (220 / 230 / 240 V) 30 kW |
| Maximum Electrical Switching Frequency | 300 cycles per hour |
| Mechanical Durability | 10 million |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 350 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 400 W |
| Power Loss | at Rated Operating Conditions per Pole 3.5 W |
| Terminal Type | Ring-Tongue Terminals |
| Product Name | Block Contactor |
Technical UL/CSA
| General Use Rating UL/CSA | (600 V AC) 140 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 hp, (208 V AC) Three Phase 30 hp, (220 ... 240 V AC) Three Phase 40, (440 ... 480 V AC) Three Phase 75 hp, (550 ... 600 V AC) Three Phase 100 hp |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 96 A, (550 ... 600 V AC) Three Phase 99 A |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4755 >> Contactors |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
1SFL457010R7011: frequently asked questions
Can I still buy the 1SFL457010R7011 now that it is discontinued?
Yes. ABB has discontinued the 1SFL457010R7011, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 1SFL457010R7011 be shipped?
1SFL457010R7011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFL457010R7011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFL457010R7011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL457010R7011, subject to availability and destination.
