MPN	Order code (ABB product ID)	Type	Product Net Width	Product Net Weight	Rated Control Circuit Voltage (U<sub>c</sub>)

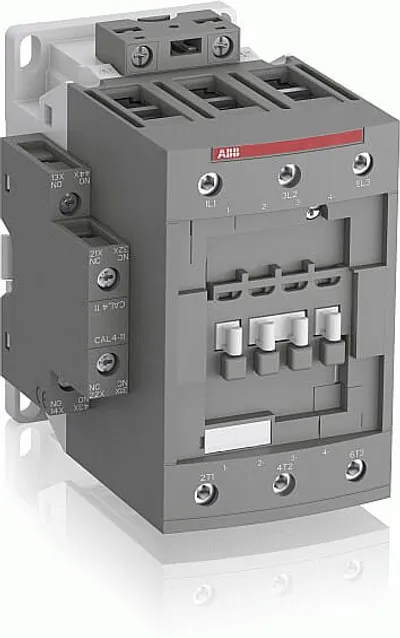

1SBL401001R8411	1SBL401001R8411	AFC96-30-11-84	82 mm	1.25 kg	50 Hz 110 V, 60 Hz 110 ... 120 V
1SBL401001R8511	1SBL401001R8511	AFC96-30-11-85	82 mm	1.25 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SBL401001R8811	1SBL401001R8811	AFC96-30-11-88	82 mm	1.25 kg	50 Hz 230 ... 240 V, 60 Hz 240 ... 260 V
1SBL401001R8111	1SBL401001R8111	AFC96-30-11-81	82 mm	1.25 kg	50 Hz 24 V, 60 Hz 24 V
1SBL401001R8011	1SBL401001R8011	AFC96-30-11-80	82 mm	1.25 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
1SBL401001R8611	1SBL401001R8611	AFC96-30-11-86	82 mm	1.25 kg	50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
1SBL401001R5111	1SBL401001R5111	AFC96-30-11-51	82 mm	1.25 kg	50 Hz 400 ... 415 V, 60 Hz 480 V
1SBL401001R4211	1SBL401001R4211	AFC96-30-11-42	82 mm	1.25 kg	50 Hz 230 ... 240 V, 60 Hz 277 V
1SBL401001R5511	1SBL401001R5511	AFC96-30-11-55	82 mm	1.25 kg	50 Hz 500 V, 60 Hz 600 V
1SBL401001R3411	1SBL401001R3411	AFC96-30-11-34	82 mm	1.25 kg	50 Hz 175 V, 60 Hz 208 V

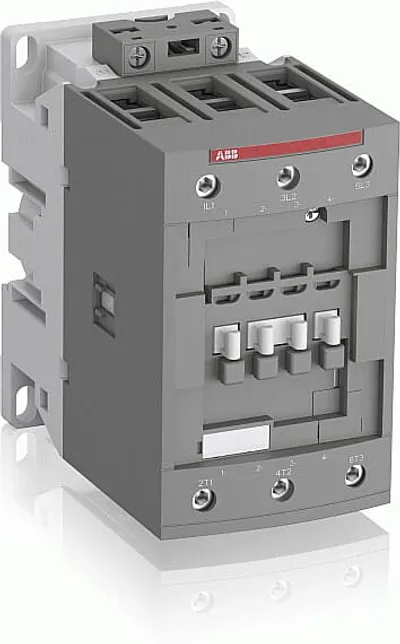

1SBL401001R8800	1SBL401001R8800	AFC96-30-00-88	70 mm	1.21 kg	50 Hz 230 ... 240 V, 60 Hz 240 ... 260 V
1SBL401001R8500	1SBL401001R8500	AFC96-30-00-85	70 mm	1.21 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SBL401001R8600	1SBL401001R8600	AFC96-30-00-86	70 mm	1.21 kg	50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
1SBL401001R8000	1SBL401001R8000	AFC96-30-00-80	70 mm	1.21 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
1SBL401001R8400	1SBL401001R8400	AFC96-30-00-84	70 mm	1.21 kg	50 Hz 110 V, 60 Hz 110 ... 120 V
1SBL401001R8100	1SBL401001R8100	AFC96-30-00-81	70 mm	1.21 kg	50 Hz 24 V, 60 Hz 24 V
1SBL401001R5500	1SBL401001R5500	AFC96-30-00-55	70 mm	1.21 kg	50 Hz 500 V, 60 Hz 600 V
1SBL401001R4200	1SBL401001R4200	AFC96-30-00-42	70 mm	1.21 kg	50 Hz 230 ... 240 V, 60 Hz 277 V
1SBL401001R5100	1SBL401001R5100	AFC96-30-00-51	70 mm	1.21 kg	50 Hz 400 ... 415 V, 60 Hz 480 V

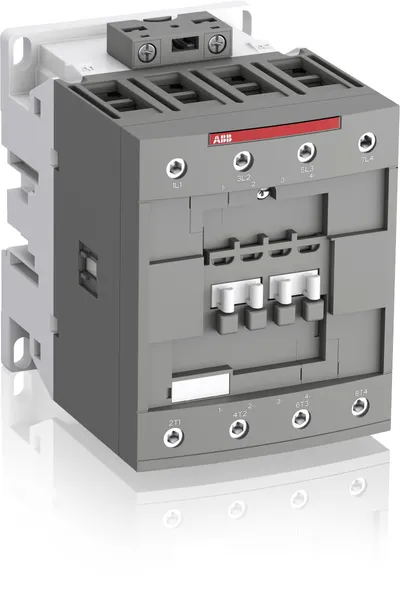

1SBL391201R8500	1SBL391201R8500	AFC80-40-00-85	90 mm	1.45 kg	50 Hz 380 ... 400 V, 60 Hz 400 ... 415 V
1SBL391201R8600	1SBL391201R8600	AFC80-40-00-86	90 mm	1.45 kg	50 Hz 400 ... 415 V, 60 Hz 415 ... 440 V
1SBL391201R8800	1SBL391201R8800	AFC80-40-00-88	90 mm	1.45 kg	50 Hz 230 ... 240 V, 60 Hz 240 ... 260 V
1SBL401001R3400	1SBL401001R3400	AFC96-30-00-34	70 mm	1.21 kg	50 Hz 175 V, 60 Hz 208 V
1SBL391201R8000	1SBL391201R8000	AFC80-40-00-80	90 mm	1.45 kg	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V

Common to all listed parts

Lifecycle	Active (current ABB product)
Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Product Net Depth / Length	116 mm
Product Net Height	125.5 mm
Number of Main Contacts NC	0
Rated Operational Voltage	Main Circuit 1000 V
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V
