ABB 1SAZ311201R2003

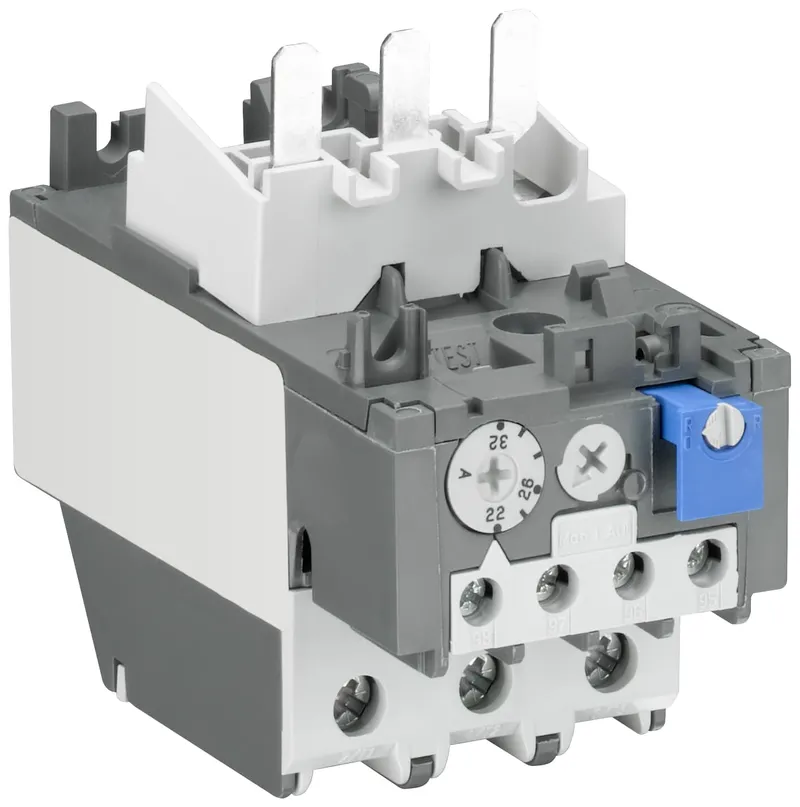

TA42DU-42M Thermal Overload Relay
- MPN
- 1SAZ311201R2003
- EAN
- 4013614482618
- Category
- ABB Thermal Overload Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAZ311201R2003?
TA42DU-42M (29.0-42.0A) thermal overload relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory.
Specifications
General
| Order code (ABB product ID) | 1SAZ311201R2003 |
| Type | TA42DU-42M |
| Lifecycle | Active (current ABB product) |
| Country of origin | India |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
Dimensions
| Product Net Width | 54 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 111 mm |
| Product Net Weight | 0.335 kg |
Technical
| Rated Operational Voltage | Main Circuit 690 V AC, Main Circuit 440 V DC |
| Rated Operational Current (I<sub>e</sub>) | 42 A |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | Auxiliary Circuit NC 10 A, Auxiliary Circuit NO 6 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (120 V) NC 3 A, (120 V) NO 1.5 A, (240 V) NC 3 A, (240 V) NO 1.2 A, (400 V) NC 0.75 A, (400 V) NO 0.37 A, (440 V) NC 0.75 A, (440 V) NO 0.37 A, (500 V) NC 0.3 A, (500 V) NO 0.25 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP20 |
| Connecting Capacity Auxiliary Circuit | Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 0.75 ... 4 mm² |
| Wire Stripping Length | Auxiliary Circuit 9 mm, Main Circuit 14 mm |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 1, Main Circuit Pozidriv 2 |
| Power Loss | at Rated Operating Conditions per Pole 1.5 ... 3.2 W |
| Suitable For | AX32, AX40 |
| Standards | CSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 508 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600, (NO:) C600 |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 8-1 AWG, Stranded 1/2x 8-1 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb, Main Circuit 40 in·lb |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °C, Operation Compensated -25 ... +55 °C, Storage -40 ... +70 °C |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 9 | EC000106 - Thermal overload relay |
| ETIM 10 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 |
| UNSPSC | 39121520 |
| IDEA Granular Category Code (IGCC) | 5364 >> Overload relay |
| E-Number (Finland) | 3707419 |
