Home / ABB / ABB Thermal Overload Relays

ABB Thermal Overload Relays Parts

Showing 1–24 of 177 parts

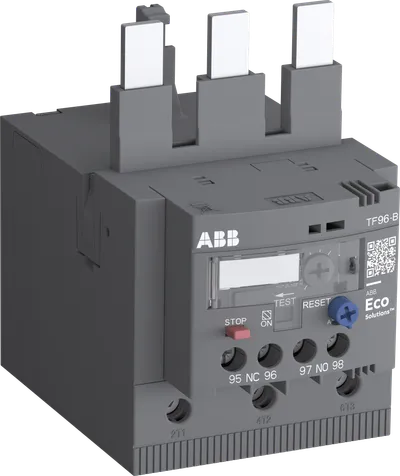

ABB 1SAZ921201R1006 – TF96-96B Thermal Overload Relay 84 ... 96 A
ABB
1SAZ921201R1006

TF96-96B Thermal Overload Relay 84 ... 96 A

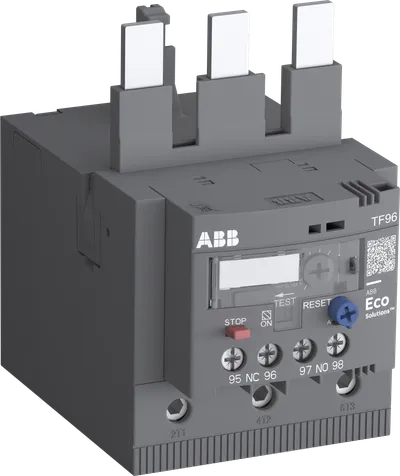

ABB 1SAZ911201R1004 – TF96-78 Thermal Overload Relay 65 ... 78 A
ABB
1SAZ911201R1004

TF96-78 Thermal Overload Relay 65 ... 78 A

ABB 1SAZ911201R1005 – TF96-87 Thermal Overload Relay 75 ... 87 A
ABB
1SAZ911201R1005

TF96-87 Thermal Overload Relay 75 ... 87 A

ABB 1SAZ911201R1006 – TF96-96 Thermal Overload Relay 84 ... 96 A
ABB
1SAZ911201R1006

TF96-96 Thermal Overload Relay 84 ... 96 A

ABB 1SAZ921201R1005 – TF96-87B Thermal Overload Relay 75 ... 87 A
ABB
1SAZ921201R1005

TF96-87B Thermal Overload Relay 75 ... 87 A

ABB 1SAZ911201R1003 – TF96-68 Thermal Overload Relay 57 ... 68 A
ABB
1SAZ911201R1003

TF96-68 Thermal Overload Relay 57 ... 68 A

ABB 1SAZ921201R1004 – TF96-78B Thermal Overload Relay 65 ... 78 A
ABB
1SAZ921201R1004

TF96-78B Thermal Overload Relay 65 ... 78 A

ABB 1SAZ921201R1002 – TF96-60B Thermal Overload Relay 48 ... 60 A
ABB
1SAZ921201R1002

TF96-60B Thermal Overload Relay 48 ... 60 A

ABB 1SAZ921201R1001 – TF96-51B Thermal Overload Relay 40 ... 51 A
ABB
1SAZ921201R1001

TF96-51B Thermal Overload Relay 40 ... 51 A

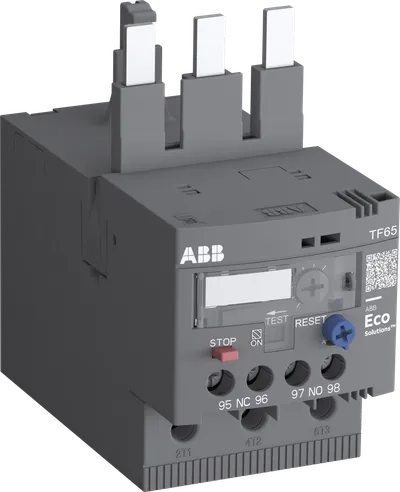

ABB 1SAZ811201R1002 – TF65-33 Thermal Overload Relay 25 ... 33 A
ABB
1SAZ811201R1002

TF65-33 Thermal Overload Relay 25 ... 33 A

ABB 1SAZ921201R1003 – TF96-68B Thermal Overload Relay 57 ... 68 A
ABB
1SAZ921201R1003

TF96-68B Thermal Overload Relay 57 ... 68 A

ABB 1SAZ911201R1002 – TF96-60 Thermal Overload Relay 48 ... 60 A
ABB
1SAZ911201R1002

TF96-60 Thermal Overload Relay 48 ... 60 A

ABB 1SAZ911201R1001 – TF96-51 Thermal Overload Relay 40 ... 51 A
ABB
1SAZ911201R1001

TF96-51 Thermal Overload Relay 40 ... 51 A

ABB 1SAZ811201R1009 – TF65-72 Thermal Overload Relay 64 ... 72 A
ABB
1SAZ811201R1009

TF65-72 Thermal Overload Relay 64 ... 72 A

ABB 1SAZ811201R1007 – TF65-67 Thermal Overload Relay 57 ... 67 A
ABB
1SAZ811201R1007

TF65-67 Thermal Overload Relay 57 ... 67 A

ABB 1SAZ811201R1005 – TF65-53 Thermal Overload Relay 44 ... 53 A
ABB
1SAZ811201R1005

TF65-53 Thermal Overload Relay 44 ... 53 A

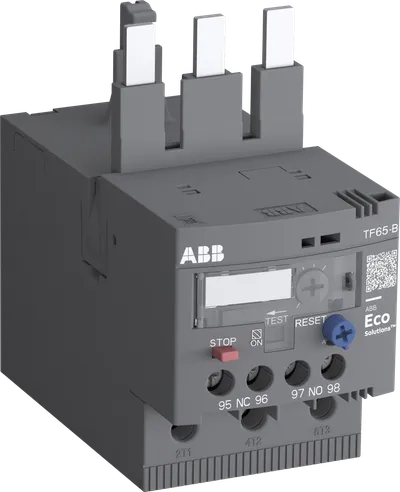

ABB 1SAZ821201R1006 – TF65-60B Thermal Overload Relay 50 ... 60 A
ABB
1SAZ821201R1006

TF65-60B Thermal Overload Relay 50 ... 60 A

ABB 1SAZ821201R1007 – TF65-67B Thermal Overload Relay 57 ... 67 A
ABB
1SAZ821201R1007

TF65-67B Thermal Overload Relay 57 ... 67 A

ABB 1SAZ811201R1006 – TF65-60 Thermal Overload Relay 50 ... 60 A
ABB
1SAZ811201R1006

TF65-60 Thermal Overload Relay 50 ... 60 A

ABB 1SAZ811201R1003 – TF65-40 Thermal Overload Relay 30 ... 40 A
ABB
1SAZ811201R1003

TF65-40 Thermal Overload Relay 30 ... 40 A

ABB 1SAZ811201R1004 – TF65-47 Thermal Overload Relay 36 ... 47 A
ABB
1SAZ811201R1004

TF65-47 Thermal Overload Relay 36 ... 47 A

ABB 1SAZ821201R1005 – TF65-53B Thermal Overload Relay 44 ... 53 A
ABB
1SAZ821201R1005

TF65-53B Thermal Overload Relay 44 ... 53 A

ABB 1SAZ821201R1003 – TF65-40B Thermal Overload Relay 30 ... 40 A
ABB
1SAZ821201R1003

TF65-40B Thermal Overload Relay 30 ... 40 A

ABB 1SAZ821201R1004 – TF65-47B Thermal Overload Relay 36 ... 47 A
ABB
1SAZ821201R1004

TF65-47B Thermal Overload Relay 36 ... 47 A

Compare ABB Thermal Overload Relays

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (ABB product ID)TypeProduct Net WidthSetting RangeRated Operational Current (I<sub>e</sub>)
1SAZ921201R10061SAZ921201R1006TF96-96B106.3 mm84 ... 96 A96 A
1SAZ911201R10041SAZ911201R1004TF96-7869.9 mm65 ... 78 A78 A
1SAZ911201R10051SAZ911201R1005TF96-8769.9 mm75 ... 87 A87 A
1SAZ911201R10061SAZ911201R1006TF96-9669.9 mm84 ... 96 A96 A
1SAZ921201R10051SAZ921201R1005TF96-87B106.3 mm75 ... 87 A87 A
1SAZ911201R10031SAZ911201R1003TF96-6869.9 mm57 ... 68 A68 A
1SAZ921201R10041SAZ921201R1004TF96-78B106.3 mm65 ... 78 A78 A
1SAZ921201R10021SAZ921201R1002TF96-60B106.3 mm48 ... 60 A60 A
1SAZ921201R10011SAZ921201R1001TF96-51B106.3 mm40 ... 51 A51 A
1SAZ811201R10021SAZ811201R1002TF65-3354.9 mm25 ... 33 A33 A
1SAZ921201R10031SAZ921201R1003TF96-68B106.3 mm57 ... 68 A68 A
1SAZ911201R10021SAZ911201R1002TF96-6069.9 mm48 ... 60 A60 A
1SAZ911201R10011SAZ911201R1001TF96-5169.9 mm40 ... 51 A51 A
1SAZ811201R10091SAZ811201R1009TF65-7254.9 mm64 ... 72 A72 A
1SAZ811201R10071SAZ811201R1007TF65-6754.9 mm57 ... 67 A67 A
1SAZ811201R10051SAZ811201R1005TF65-5354.9 mm44 ... 53 A53 A
1SAZ821201R10061SAZ821201R1006TF65-60B106.9 mm50 ... 60 A60 A
1SAZ821201R10071SAZ821201R1007TF65-67B106.9 mm57 ... 67 A67 A
1SAZ811201R10061SAZ811201R1006TF65-6054.9 mm50 ... 60 A60 A
1SAZ811201R10031SAZ811201R1003TF65-4054.9 mm30 ... 40 A40 A
1SAZ811201R10041SAZ811201R1004TF65-4754.9 mm36 ... 47 A47 A
1SAZ821201R10051SAZ821201R1005TF65-53B106.9 mm44 ... 53 A53 A
1SAZ821201R10031SAZ821201R1003TF65-40B106.9 mm30 ... 40 A40 A
1SAZ821201R10041SAZ821201R1004TF65-47B106.9 mm36 ... 47 A47 A

Common to all listed parts

LifecycleActive (current ABB product)
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Rated Operational VoltageAuxiliary Circuit 600 V AC/DC, Main Circuit 690 V AC, Main Circuit 440 V DC
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Auxiliary Circuit 6 kV, Main Circuit 8 kV
Rated Insulation Voltage (U<sub>i</sub>)690 V
Number of Poles3P
Number of Auxiliary Contacts NC1
