Available on request
CP630
MPN: 1SAP530100R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP530100R0001 be shipped?
1SAP530100R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP530100R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP530100R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP530100R0001, subject to availability and destination.

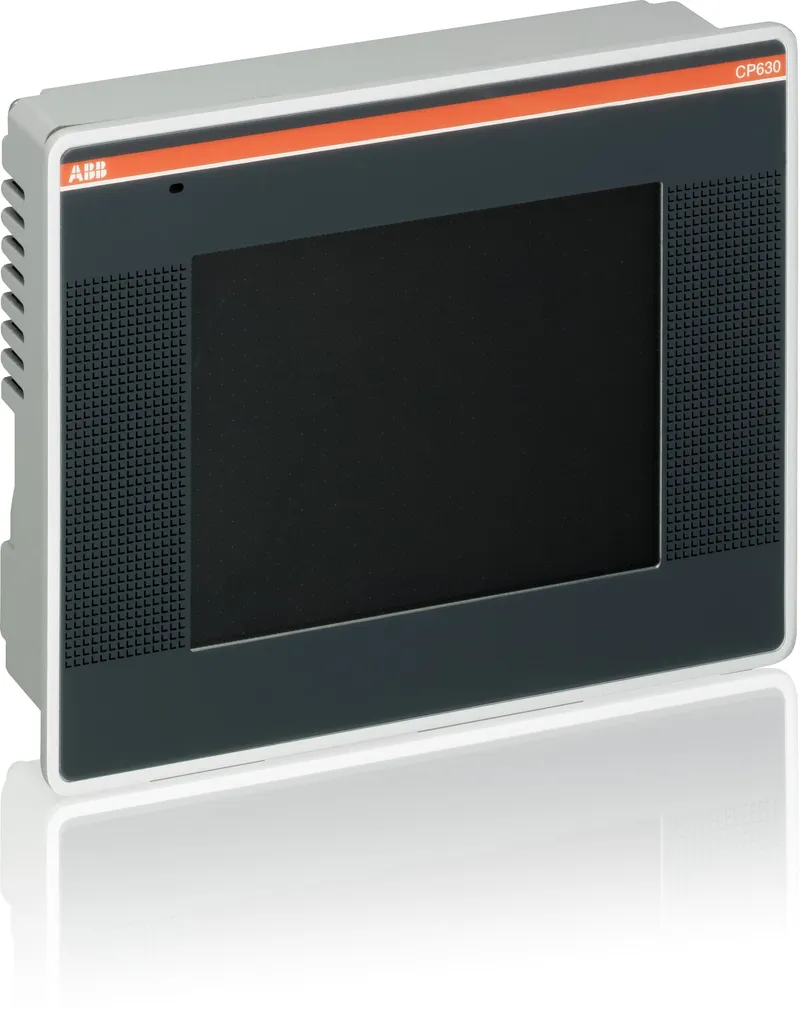

CP630 Control Panel 5.7" TFT touch screen, 64 K colors, 320 x 240 pixel, PB610 runtime license
Specifications
Additional Information
| ABB Type Designation | CP630 |
| Ambient Air Temperature | Operation 0 ... +50 °C, Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication Interface | 2x Ethernet 100 MBit, 1x RS232/422/485, 2x USB 2.0 Host, 1x SD card slot, 2x Expansion slot |
| Country or Territory of Origin | Italy, Germany |
| Customs Tariff Number | 85371091 |
| Declaration of Conformity - C-Tick | 1SAA960002-3301 |
| Declaration of Conformity - KCC | 1SAA960002-4801 |
| Degree of Protection | acc. to IEC 60529 Front IP66, acc. to IEC 60529 Housing IP20 |
| EAN | 4016779864886 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 1.3 kg kg |
| Housing Material | Front side: Zamak, Reverse side: Aluminium |
| Invoice Description | CP630 Control Panel 5.7" TFT touch scree |
| Made To Order | No |
| Maximum Order Quantity | 0 piece |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 280 mm mm |
| Package Level 1 Height | 120 mm mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 210 mm mm |
| Power Consumption (@Pcons) | 16.8 W W |
| Power Supply | 24 (18 ... 30) V DC V |
| Product Main Type | CP630 |
| Product Name | Control Panels |
| Product Net Depth / Length | 51 mm mm |
| Product Net Height | 147 mm mm |
| Product Net Weight | 0.82 kg kg |
| Product Net Width | 187 mm mm |
| Product Type | PLC-CP600 |
| Programming Software | PB610 Panel Builder 600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| SCIP | 6e63d2b2-83a5-4f6e-969e-6084fda13d6c Germany |
| Screen Color | 64k colors |
| Screen Resolution | 320 x 240 pixel |
| Screen Size | 4:3 screen 5.7 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service Life | 40000 hour |
| Short Description | CP630 Control Panel 5.7" TFT touch screen |
| Stocked At (Warehouses) | Menden, Germany, Hangzhou, China, Bairro Santo Antonio, Brazil |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| USB Port 2 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
