CP620-WEB
MPN: 1SAP520200R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP520200R0001 be shipped?
1SAP520200R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP520200R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP520200R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP520200R0001, subject to availability and destination.

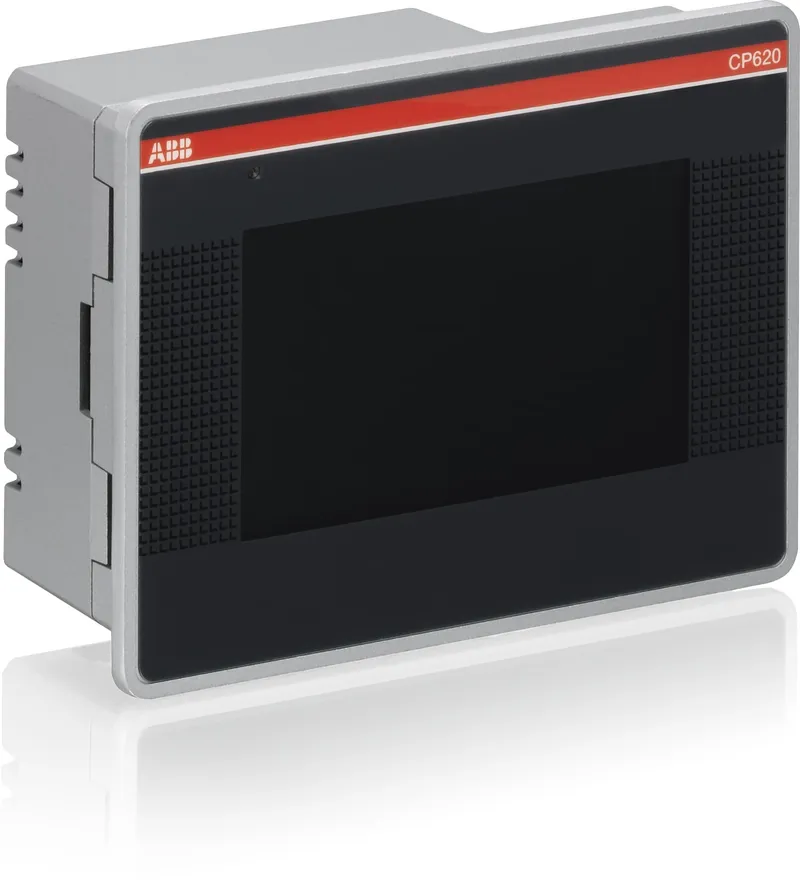

CP620-WEB Control Panel 4.3" TFT touch screen, 64 K colors, 480 x 272 pixel, microbrowser for V2.3 webserver
Specifications
Additional Information
| ABB Type Designation | CP620-WEB |
| Ambient Air Temperature | Operation 0 ... +50 °C, Storage -20 ... +70 °C |
| CN8 | 85371091 |
| Communication Interface | 2x Ethernet 100 MBit, 1x RS232/422/485, 1x USB 2.0 Host, 1x SD card slot, 1x Expansion slot |
| Country or Territory of Origin | Italy, Germany |
| Customs Tariff Number | 85371091 |
| Declaration of Conformity - C-Tick | 1SAA960002-3301 |
| Declaration of Conformity - KCC | 1SAA960002-4801 |
| Degree of Protection | acc. to IEC 60529 Front IP66, acc. to IEC 60529 Housing IP20 |
| EAN | 4016779864879 |
| eClass | 27-33-02-01 |
| Frame Size | Undefined |
| Gross Weight | 1.3 kg kg |
| Housing Material | Front side: Zamak, Reverse side: Zamak |
| Invoice Description | CP620-WEB Control Panel 4.3" microbr.f. V2.3 webserver |
| Made To Order | No |
| Memory Size User Data | 128 MB |
| Memory Size User Program | 256 MB |
| Memory Type User Data | Flash Disk |
| Memory Type User Program | DDR RAM |
| Minimum Order Quantity | 1 piece |
| Mounting Type | Front face |
| Order Multiple | 1 piece |
| Package Level 1 Depth / Length | 260 mm mm |
| Package Level 1 Height | 120 mm mm |
| Package Level 1 Units | 1 carton |
| Package Level 1 Width | 190 mm mm |
| Power Consumption (@Pcons) | 9.6 W W |
| Power Supply | 24 (18 ... 30) V DC V |
| Product Main Type | CP620 |
| Product Name | Control Panels |
| Product Net Depth / Length | 56 mm mm |
| Product Net Height | 107 mm mm |
| Product Net Weight | 0.88 kg kg |
| Product Net Width | 147 mm mm |
| Product Type | PLC-CP600 |
| Quote Only | No |
| Real-time Clock | Hardware clock, battery back-up |
| SCIP | 0ddd2a5c-93fb-44ee-85ef-0181c498fe89 Germany |
| Screen Color | 64k colors |
| Screen Resolution | 480 x 272 pixel |
| Screen Size | 16:9 wide screen 4.3 in |
| Screen Type | TFT color, LED backlight, touch screen |
| Security | Password protection with 8 user levels |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | RS232/RS422/RS485 |
| Service Life | 40000 hour |
| Short Description | CP620-WEB Control Panel 4.3" microbr.f. V2.3websv. |
| Stocked At (Warehouses) | Menden, Germany, Hangzhou, China, Bairro Santo Antonio, Brazil |
| UNSPSC | 32151703 |
| USB Port 1 Type | Host, version 2.0 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
