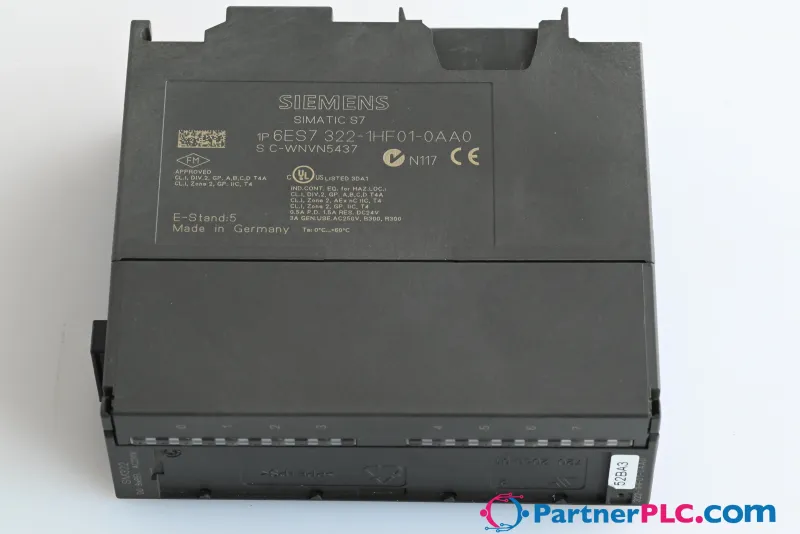

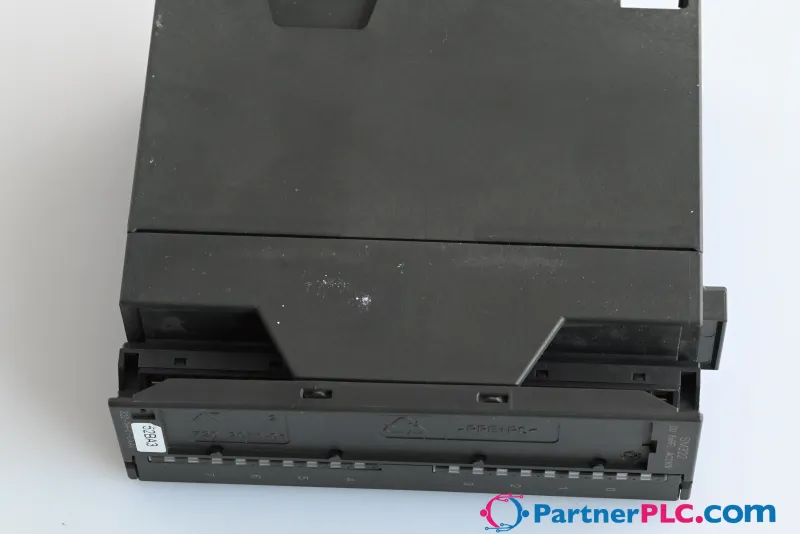

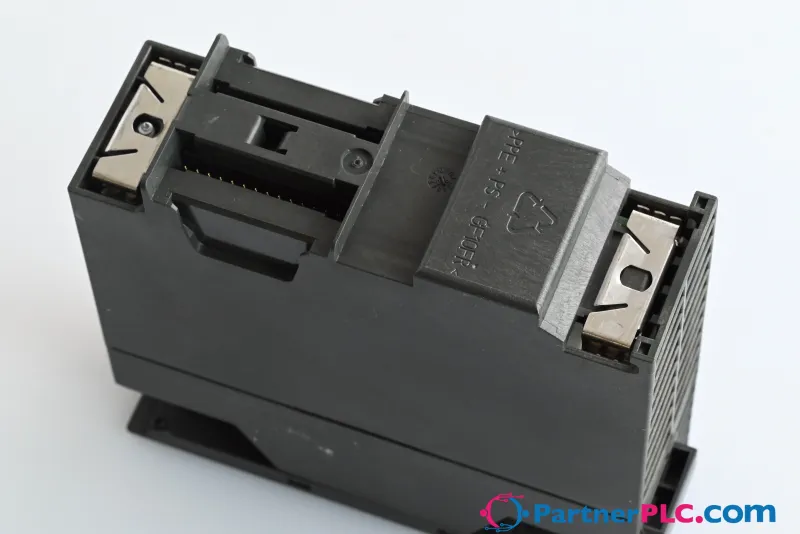

Siemens 6ES7322-1HF01-0AA0
- MPN
- 6ES7322-1HF01-0AA0
- Category
- Digital I/O Modules
€21.20excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7322-1HF01-0AA0?
Siemens 6ES7322-1HF01-0AA0
Specifications
Supply voltage
| Technical Product Detail Page | https://i.siemens.com/1P6ES7322-1HF01-0AA0 |
| Rated value (DC) | 24 V |
Input current
| from supply voltage L+, max. | 160 mA |
| from backplane bus 5 V DC, max. | 40 mA |
Power loss
| Power loss, typ. | 3.2 W |
Digital outputs
| Number of digital outputs | 8; Relays |
| Short-circuit protection | No |
| Controlling a digital input | Yes |
| on lamp load, max. | 50 W |
| Low energy/fluorescent lamps with electronic control gear | 10x 58 W |
| Fluorescent tubes, conventionally compensated | 1x 58 W |
| Fluorescent tubes, uncompensated | 10x 58 W |
| for signal "1" rated value | 2 A |
| for signal "1" minimum load current | 5 mA |
| for uprating | No |
| for redundant control of a load | Yes |
| with resistive load, max. | 2 Hz |
| with inductive load, max. | 0.5 Hz |
| With inductive load (to IEC 60947-5-1, DC13/AC15), max. | 0.5 Hz |
| on lamp load, max. | 2 Hz |
| mechanical, max. | 10 Hz |
| Rated supply voltage of relay coil L+ (DC) | 24 V; 110 mA |
| Contact connection (internal) | Yes; SIOV-CU4032 K275G |
| Number of operating cycles, max. | 300 000; 230 V AC: 100 000; 120 V AC: 200 000; 24 V DC: 300 000 (at 2 A) |
| — with inductive load, max. | 2 A; 2 A (230 V AC), 2 A (24 V DC) |
| — with resistive load, max. | 2 A |
| — Thermal continuous current, max. | 3 A |
| shielded, max. | 1 000 m |
| unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Alarms | No |
| Diagnostics function | No |
| Diagnostic alarm | No |
| Wire break | No |
| short-circuit | No |
| Fuse blown | No |
| Missing load voltage | No |
| Rated load voltage PWR (green) | No |
| Fuse OK FSG (green) | No |
| Status indicator digital output (green) | Yes |
Potential separation
| between the channels | Yes |
| between the channels, in groups of | 2 |
| between the channels and backplane bus | Yes; Optocoupler |
Isolation
| Isolation tested with | 1 500 V AC |
Connection method
| required front connector | 20-pin |
Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
Weights
| Weight, approx. | 190 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7322-1HF01-0AA0: frequently asked questions
Can I still buy the 6ES7322-1HF01-0AA0 now that it is discontinued?
Yes. Siemens has discontinued the 6ES7322-1HF01-0AA0, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 6ES7322-1HF01-0AA0 be shipped?
6ES7322-1HF01-0AA0 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 6ES7322-1HF01-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6ES7322-1HF01-0AA0.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7322-1HF01-0AA0, subject to availability and destination.
