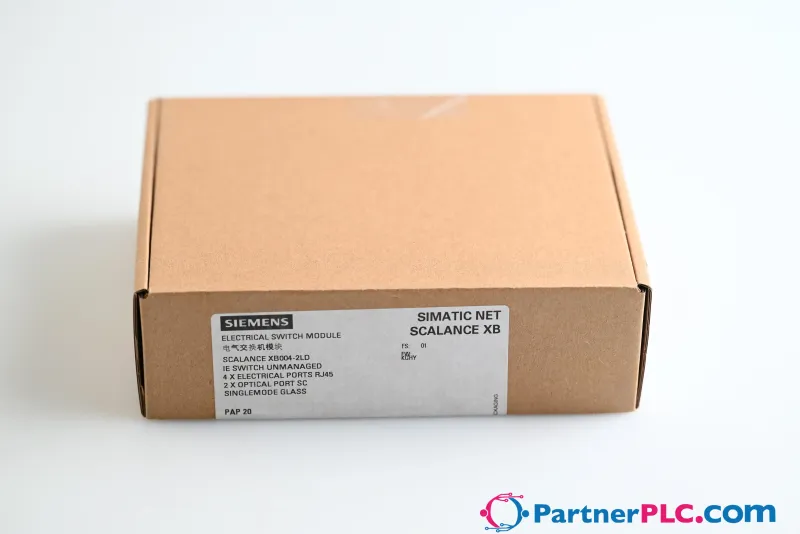

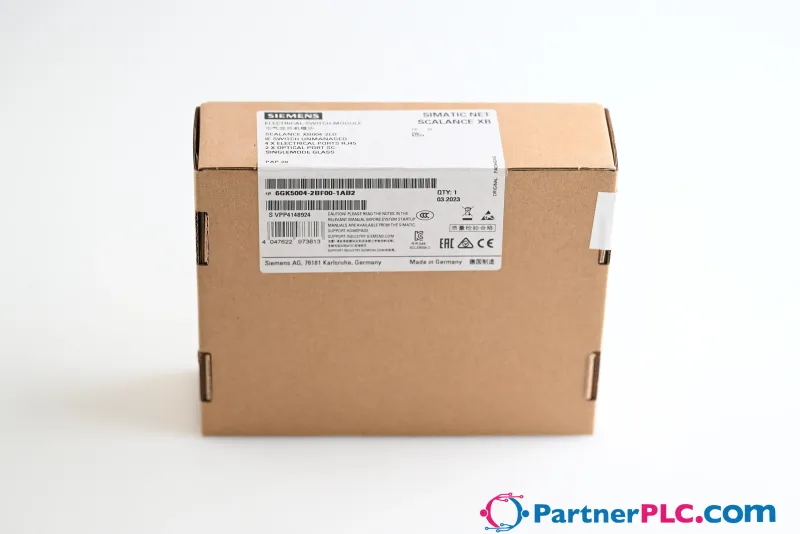

Siemens 6GK5004-2BF00-1AB2
- MPN
- 6GK5004-2BF00-1AB2
- Category
- Communication Modules
€471.70excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5004-2BF00-1AB2?
Siemens 6GK5004-2BF00-1AB2
Specifications
product type designation
| Technical Product Detail Page | https://i.siemens.com/1P6GK5004-2BF00-1AB2 |
| product brand name | SCALANCE |
| product type designation | XB004-2LD |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5004-2BF00-1AB2 |
transfer rate
| transfer rate | 10, 100 Mbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 4; RJ45 |
| number of 100 Mbit/s SC ports — for multimode | 0 |
| number of 100 Mbit/s SC ports — for single mode (LD) | 2 |
| transmission method / of the optical interface | 100BaseLX LD |
interfaces / other
| number of electrical connections — for power supply | 1 |
| type of electrical connection — for power supply | 3-pole terminal block |
supply voltage, current consumption, power loss
| type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 1 / rated value | 24 V |
| power loss [W] / 1 / rated value | 2.4 W |
| supply voltage / 1 / voltage range | 19.2 ... 28.8 |
| consumed current / 1 / maximum | 0.1 A |
| type of electrical connection / 1 / for power supply | 3-pole terminal block |
| product component / 1 / fusing at power supply input | Yes |
| fuse protection type / 1 / at input for supply voltage | 0,6 A / 60 V |
| type of voltage / 2 / of the supply voltage | AC |
| supply voltage / 2 / voltage range | 19.2 ... 28.8 |
ambient conditions
| ambient temperature — during operation | -10 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
design, dimensions and weights
| design | Box |
| width | 45 mm |
| height | 100 mm |
| depth | 87 mm |
| net weight | 0.205 kg |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
| fastening method — S7-1500 rail mounting | No |
product functions / management, configuration, engineering
| product function — multiport mirroring | No |
| product function — CoS | Yes |
| product function — switch-managed | No |
| PROFINET conformity class | A |
product functions / redundancy
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| standard — for EMC interference emission | EN 61000-6-4 |
standards, specifications, approvals / hazardous environments
| certificate of suitability — ATEX | Yes |
| certificate of suitability — UKEX | Yes |
| certificate of suitability — IECEx | Yes |
| certificate of suitability — CCC / for hazardous zone according to GB standard | Yes |
| certificate of suitability — FM registration | Yes |
standards, specifications, approvals / other
| certificate of suitability — RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 141.3 kg |
| global warming potential [CO2 eq] — during manufacturing | 15.99 kg |
| global warming potential [CO2 eq] — during operation | 125.18 kg |
| global warming potential [CO2 eq] — after end of life | 0.15 kg |
product functions / general
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5004-2BF00-1AB2: frequently asked questions
When can 6GK5004-2BF00-1AB2 be shipped?
6GK5004-2BF00-1AB2 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 6GK5004-2BF00-1AB2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6GK5004-2BF00-1AB2.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5004-2BF00-1AB2, subject to availability and destination.
