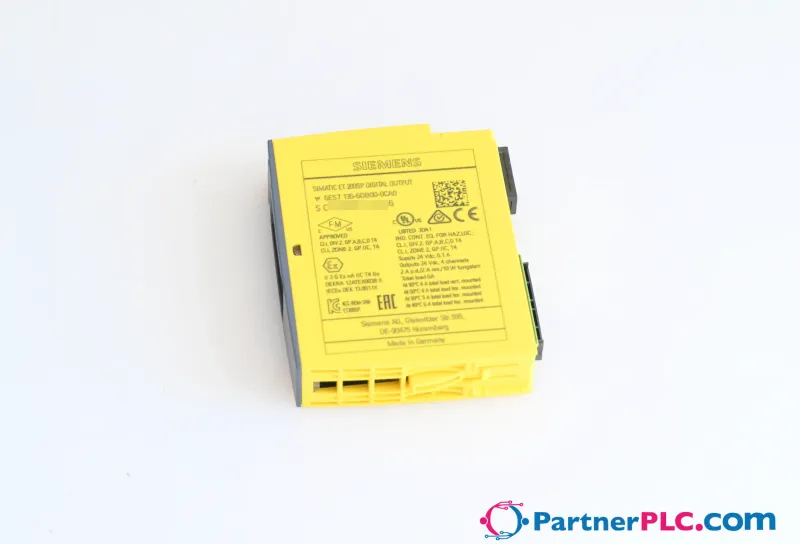

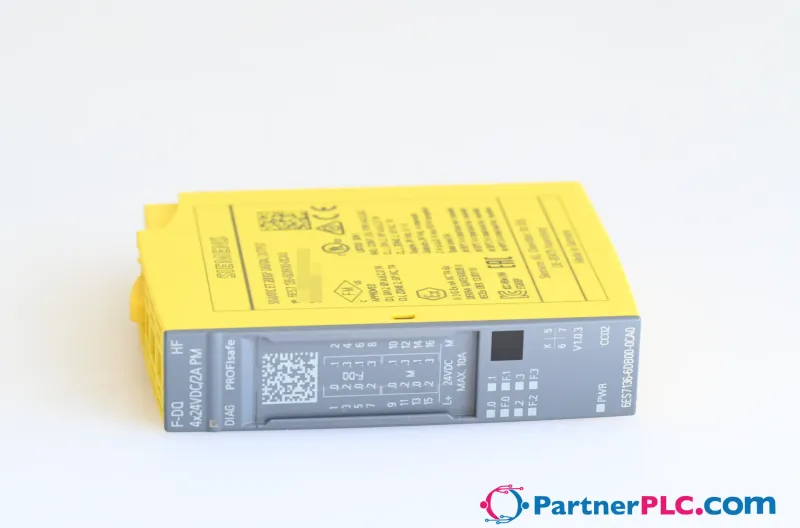

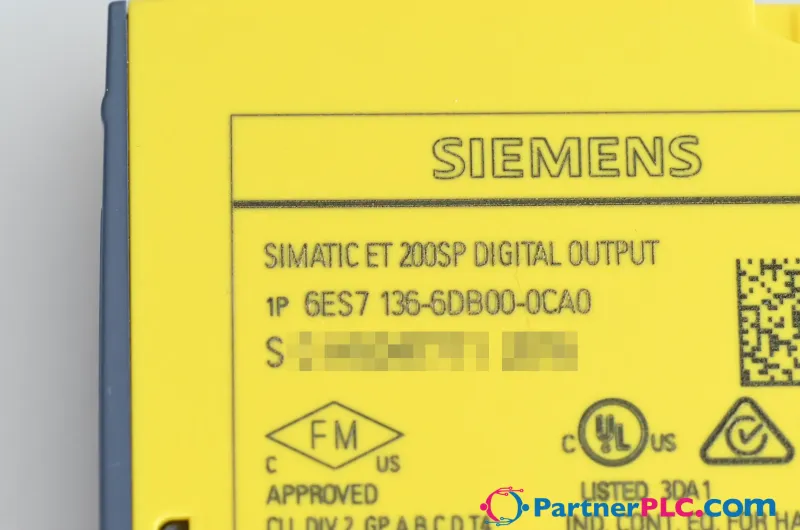

Siemens 6ES7136-6DB00-0CA0
- MPN
- 6ES7136-6DB00-0CA0
- Category
- Digital I/O Modules
€104.94excl. VAT & shipping
In stock — 3 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7136-6DB00-0CA0?
Material number: X67DM1321 Description: 8 digital channels, configurable as inputs or outputs Outputs with short circuit protection All outputs with single-channel diagnostics Configurable input delay 2 additional channels with counter functions This module is equipped with 8 digital channels that can be configured either as inputs or outputs. The inputs are designed for a sink circuit, and the outputs are designed for a source circuit.
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6ES7136-6DB00-0CA0 |
| Product type designation | F-DQ 4x24VDC/2A PM HF |
| usable BaseUnits | BU type A0 |
| I&M data | Yes; I&M0 to I&M3 |
| STEP 7 TIA Portal configurable/integrated from version | V12 |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - |
| PROFINET from GSD version/GSD revision | V2.31 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| power supply according to NEC Class 2 required | No |
Input current
| Current consumption (rated value) | 75 mA; without load |
| Current consumption, max. | 21 mA; From the backplane bus |
Output voltage
| Rated value (DC) | 24 V |
Power
| Power consumption from the backplane bus | 70 mW |
Power loss
| Power loss, typ. | 4 W |
Address area
| Inputs | 5 byte |
| Outputs | 5 byte |
Hardware configuration
| Automatic encoding | Yes |
| Electronic coding element type F | Yes |
Digital outputs
| Type of digital output | Transistor |
| Number of digital outputs | 4 |
| Digital outputs, parameterizable | Yes |
| Short-circuit protection | Yes |
| Response threshold, typ. | > 3.3 A |
| Open-circuit detection | Yes |
| Response threshold, typ. | 8 mA |
| Overload protection | Yes |
| Response threshold, typ. | 2.9 A |
| Limitation of inductive shutdown voltage to | Typ. -2x 47 V |
| Controlling a digital input | Yes; digital output, according to IEC 61131-2, type 2 |
| with resistive load, max. | 2 A |
| on lamp load, max. | 10 W |
| lower limit | 12 Ω |
| upper limit | 2 000 Ω |
| for signal "1", min. | 24 V; L+ (-0.5 V) |
| for signal "1" rated value | 2 A |
| for signal "0" residual current, max. | 0.5 mA |
| with resistive load, max. | 30 Hz; Symmetrical |
| with inductive load, max. | 0.1 Hz; according to IEC 60947-5-1, DC-13, symmetrical |
| on lamp load, max. | 10 Hz; Symmetrical |
| Current per channel, max. | 2 A; note derating data in the manual |
| Current per module, max. | 6 A; note derating data in the manual |
| shielded, max. | 1 000 m |
| unshielded, max. | 500 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes; See Chapter "Alarms/diagnostic messages" in the manual |
| Substitute values connectable | No |
| Diagnostic alarm | Yes |
| Hardware interrupt | No |
| RUN LED | Yes; green LED |
| ERROR LED | Yes; red LED |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| Channel status display | Yes; green LED |
| for channel diagnostics | Yes; red LED |
| for module diagnostics | Yes; green/red DIAG LED |
Potential separation
| between the channels | No |
| between the channels and backplane bus | Yes |
| between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 707 V DC (type test) |
Standards, approvals, certificates
| Suitable for safety functions | Yes |
| environmental product declaration | Yes |
| — global warming potential, (total) [CO2 eq] | 88.3 kg |
| — global warming potential, (during production) [CO2 eq] | 13.1 kg |
| — global warming potential, (during operation) [CO2 eq] | 76.6 kg |
| — global warming potential, (after end of life cycle) [CO2 eq] | -1.37 kg |
| Performance level according to ISO 13849-1 | PLe |
| SIL acc. to IEC 61508 | SIL 3 |
| — Low demand mode: PFDavg in accordance with SIL2 | < 2.00E-04 |
| — Low demand mode: PFDavg in accordance with SIL3 | < 2.00E-05 |
| — High demand/continuous mode: PFH in accordance with SIL2 | < 1.00E-08 1/h |
| — High demand/continuous mode: PFH in accordance with SIL3 | < 1.00E-09 1/h |
Ambient conditions
| horizontal installation, min. | 0 °C |
| horizontal installation, max. | 60 °C |
| vertical installation, min. | 0 °C |
| vertical installation, max. | 50 °C |
| Installation altitude above sea level, max. | 4 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
Dimensions
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
Weights
| Weight, approx. | 57 g |
