Home / B&R / B&R X67DI1371.L12 – 16 digital inputs; For all standard sensors with M12…

Used

B&R X67DI1371.L12 – 16 digital inputs; For all standard sensors with M12…

Name: B&R X67DI1371.L12 – 16 digital inputs; For all standard sensors with M12…
Brand: B&R
SKU: X67DI1371.L12
Price: 316.94 EUR
Availability: InStock

MPN: X67DI1371.L12 · Brand: B&R

€316.94 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 5 available
Category	Digital I/O Modules
Warranty	3-month
Weight	0.25 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67DI1371.L12 be shipped?

X67DI1371.L12 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X67DI1371.L12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X67DI1371.L12.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67DI1371.L12, subject to availability and destination.

• 16 digital inputs

• For all standard sensors with M12 connectors

• 1:1 replacement for passive distributors

• Extremely short cycle times

• Integrated sensor supply with short circuit protection

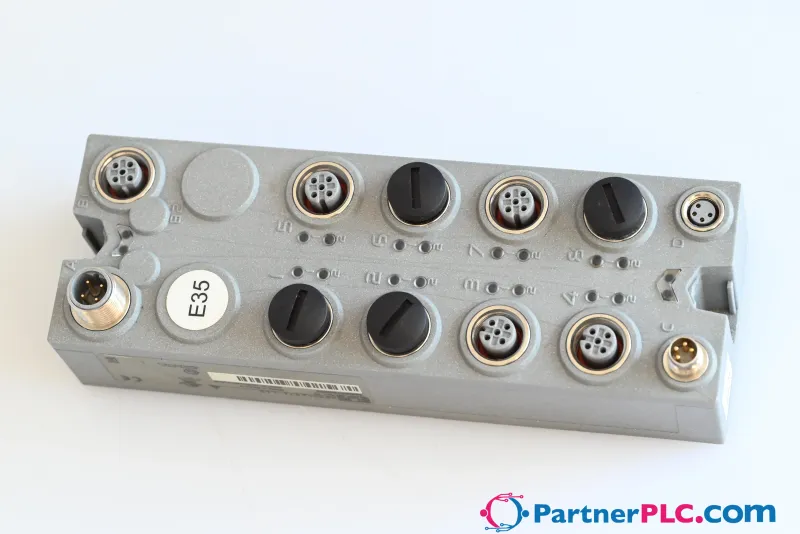

This module is a digital input module with high integration density. The module is equipped with 16 inputs and M12 connectors.

Specifications

Short description

I/O module

16 digital inputs 24 VDC

General information

Diagnostics – I/O power supply	Yes, using LED status indicator
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	8x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	0.5 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1A1B
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor power supply	Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors and actuators connected to the module is not permitted to exceed 12 W.">
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Digital inputs

Input filter – Hardware	≤100 μs
Input filter – Software	1 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	18 to 30 VDC
Input current at 24 VDC	Typ. 7 mA
Input circuit	Sink
Input resistance	Typ. 3 kΩ
Sensor power supply	0.5 A summation current
Insulation voltage between channel and bus	500 V eff

Sensor power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	155 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	320 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet X67DI1371.L12	PDF · 1 MB · 3.20 (11/24/2025) - EN
X67 System User´s Manual	PDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X67 High Density

ZIP · 705 KB · 1.0 (05/15/2006)

Certificates (7)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL CoC X67	PDF · 345 KB · 2026_01 (01/29/2026)
EU Declaration ATEX X67	PDF · 191 KB · 2021-04 (07/02/2021)
EU Declaration PLC X67	PDF · 674 KB · 2024-02 (02/02/2024)
TÜV 05 ATEX 7201 X	PDF · 5 MB · 1.10 (03/24/2021)
UK Declaration PLC X67	PDF · 469 KB · 2024-02 (02/02/2024)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
