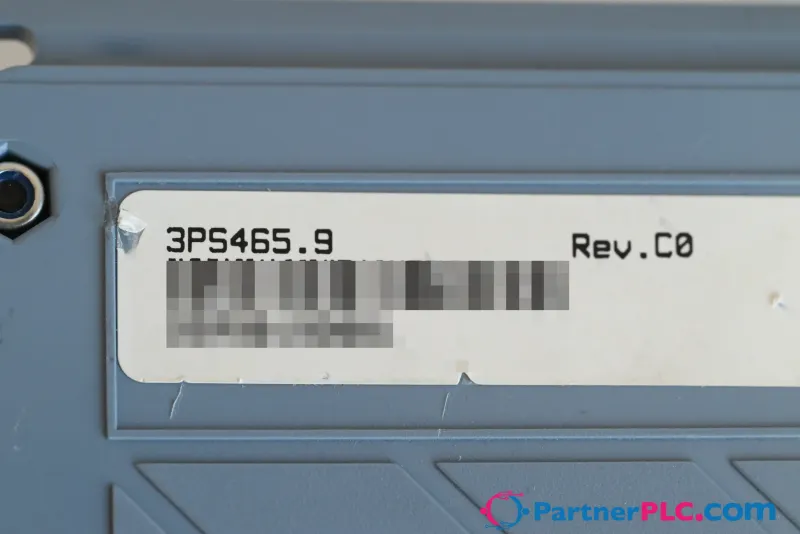

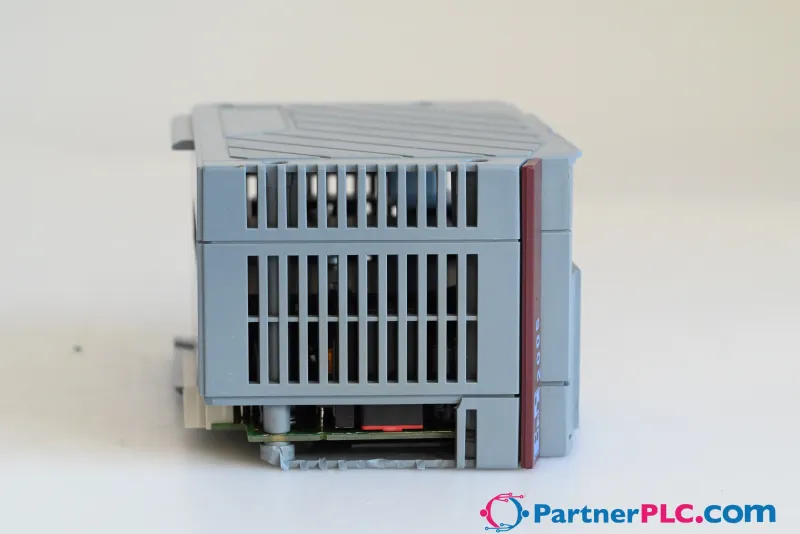

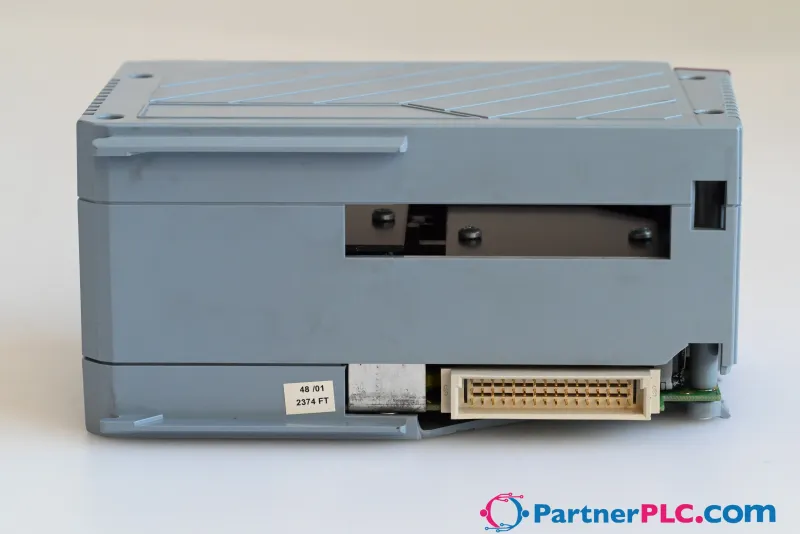

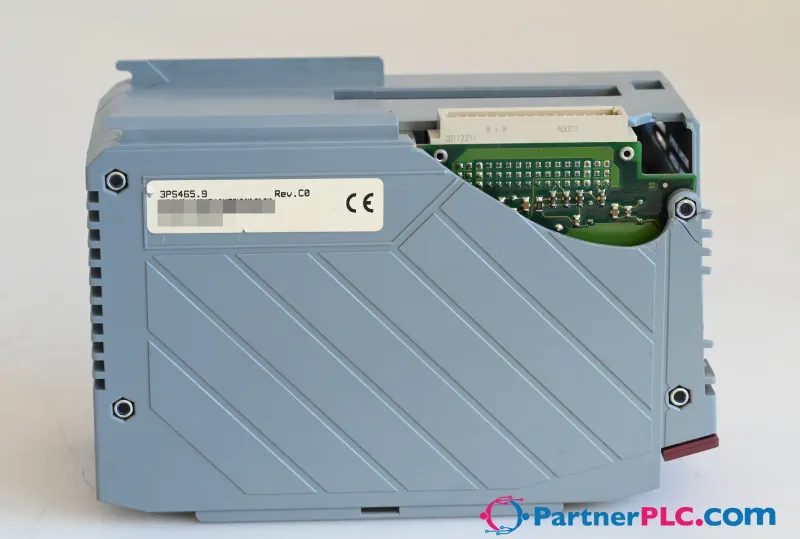

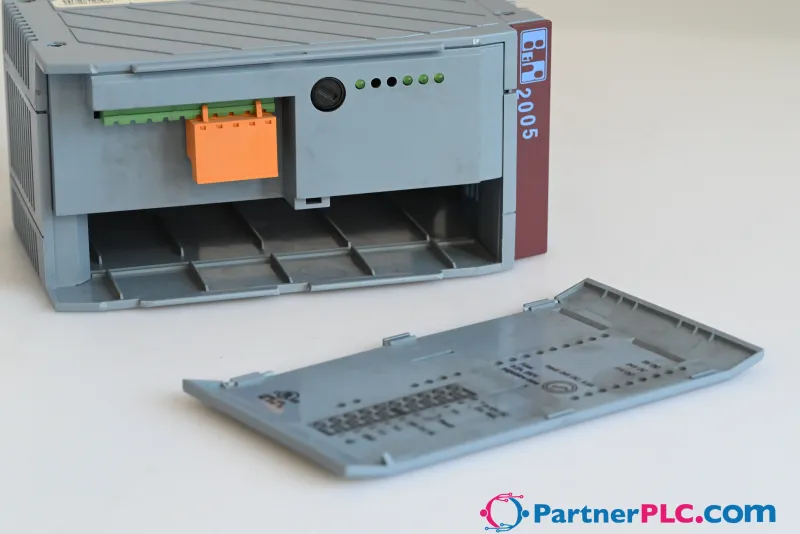

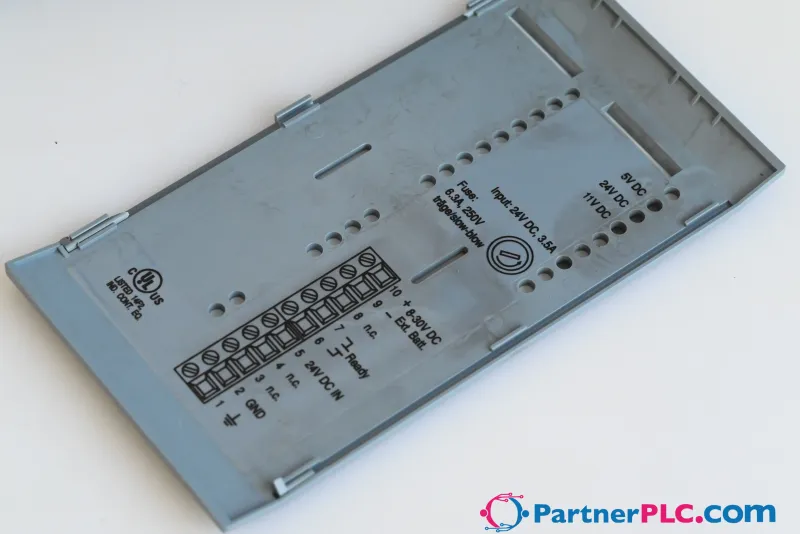

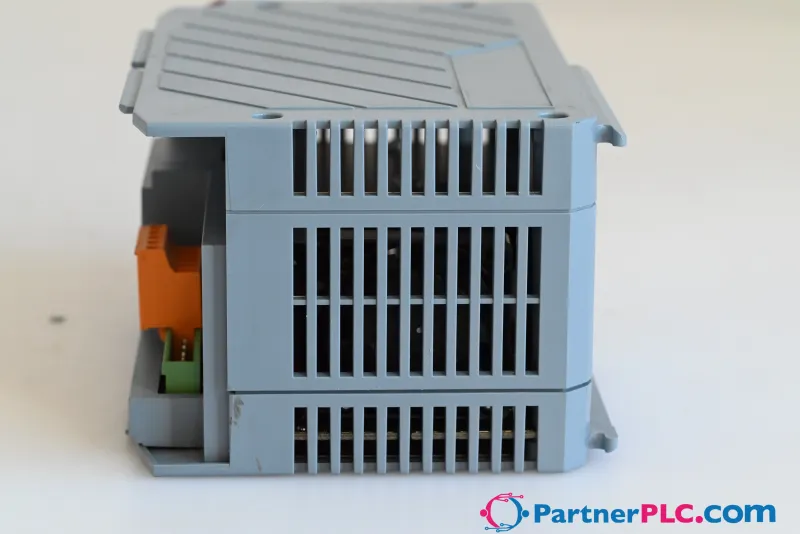

B&R 3PS465.9 has exterior broken Used Rev. C0 – 2005 power supply module, 24 VDC, 50 W, with expansion slot
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Power Supplies |
| Warranty | 3-month |
| Weight | 0.85 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3PS465.9 has exterior broken be shipped?
3PS465.9 has exterior broken is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 3PS465.9 has exterior broken in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 3PS465.9 has exterior broken.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3PS465.9 has exterior broken, subject to availability and destination.
2005 power supply module, 24 VDC, 50 W, with expansion slot
Specifications
Short description
| Power supply module | 24 VDC with expansion slot |
General information
| Output power – 24 VDC | 50.0 W |
| Output power – 5 VDC | 40.0 W |
| Output power – Total | 60.0 W |
| Electrical isolation – Power supply unit - Input voltage | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | Input voltage OK, output voltage OK |
Power supply unit
| Input voltage range | 18 to 30 VDC |
| Input current | Max. 3.5 A |
| Overload characteristics | Short-circuit-proof, overload-proof, reverse polarity protection |
| Contact for READY relay | Yes, designed as normally open contact |
| Fuse | 6.3 A slow-blow / 250 V |
| Additional functions | External retention of RAM by supplying 12 V (min. 8 V / max. 30 V) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 double-width |
| Slot – Base unit | 1 + 2 |
| Slot – Expansion unit | 1 + 2 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3PS465.9 | PDF · 562 KB · 1.0 (06/08/2004) - EN |
