B&R 3CP382.60-1
- MPN
- 3CP382.60-1
- Category
- CPU & Controllers
€412.34excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 3CP382.60-1?
Material number: 3CP382.60-1 Description: 2005 CPU, Pentium III 500, 64 MB DRAM, 512 KB SRAM, exchangeable application memory: CompactFlash, 3 insert slots for aPCI-modules, 1 USB interface, 1 RS232 interface, 1 Ethernet interface 100 Base-T, order program memory separately.
Specifications
Short description
| Interfaces | 1x RS232, 1x Ethernet, 1x USB |
| System module | CPU |
| CPU | Pentium III 500 |
General information
| Diagnostics – Battery | Yes, using LED status indicator and software |
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – CompactFlash | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes |
| Power consumption – 24 VDC | 4.0 W |
| Power consumption – 5 VDC | 13.0 W |
| Power consumption – Total | 17.0 W without memory card and without interface module |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – IF1 - IF3 | No |
| Electrical isolation – IF2 - IF3 | Yes |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Electrical isolation – PLC - IF3 | No |
| Certifications – CE | Yes |

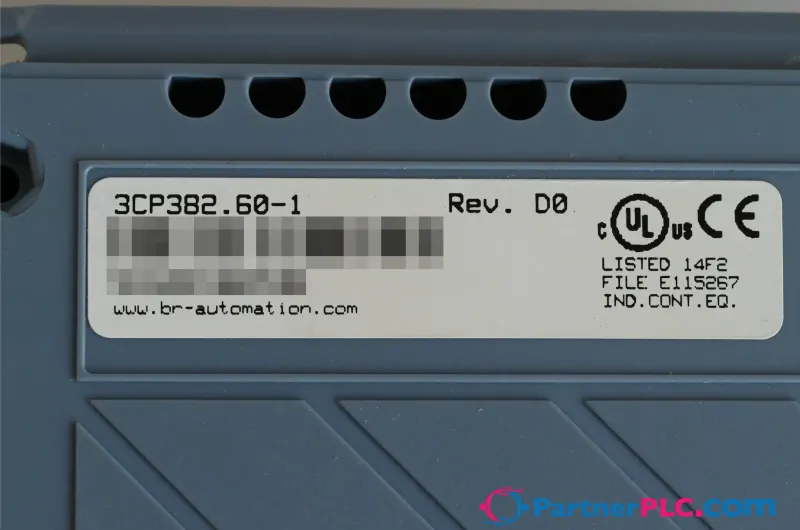

| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | CPU function, battery, CompactFlash, Ethernet |
Controller
| Processor – L2 cache | 256 kB |
| Data buffering – Battery monitoring | Yes |
| Data buffering – Lithium battery | At least 3 years |
| Standard memory – RAM | 64 MB DRAM |
| Standard memory – User RAM | 496 kB SRAM |
| CompactFlash slot | 1 |
| L1 cache for data and program code | 2x 16 kB |
| Real-time clock | Nonvolatile, resolution 1 s |
| Insert slots | 3 for IF7xx aPCI interface modules |
| FPU | Yes |
| Integrated I/O processor | Processes I/O data points in the background |
| Reset button | Yes |
| Remanent variables | 256 kB |
| Shortest task class cycle time | 200 µs |
| Typical instruction cycle time | 0.012 µs |
Interfaces
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | 9-pin male DSUB connector |
| Interface IF1 – Max. transfer rate | 115.2 kbit/s |
| Interface IF2 – Type | Ethernet |
| Interface IF2 – Variant | Shielded RJ45 port |
| Interface IF2 – Line length | Max. 100 m between two stations (segment length) |
| Interface IF2 – Transfer rate | 10/100 Mbit/s |
| Interface IF3 – Type | USB 1.1 |
| Interface IF3 – Quantity | 1 |
| Interface IF3 – Variant | Type A |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 60°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 triple-width |
| Slot – Base unit | 3 to 5 |
| Slot – Expansion unit | No |
| Note | Order application memory (CompactFlash) separately, backup battery included in delivery |
Accessories
Required accessories (order separately)
| 0CFCRD.8192E.02 | CompactFlash cards — CompactFlash 8 GB extended temp. |
| 0CFCRD.4096E.02 | CompactFlash cards — CompactFlash 4096 MB extended temp. |
| 0CFCRD.2048E.02 | CompactFlash cards — CompactFlash 2048 MB extended temp. |
| 0CFCRD.1024E.02 | CompactFlash cards — CompactFlash 1024 MB extended temp. |
| 0CFCRD.0512E.02 | CompactFlash cards — CompactFlash 512 MB extended temp. |
| 0CFCRD.016GE.02 | CompactFlash cards — CompactFlash 16 GB extended temp. |
Optional accessories (2)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
