B&R 3AT450.6

2005 analog input module, 4 inputs, Pt100 (4-wire connections), -50 to +450°C

MPN: 3AT450.6
Category: Servo & Motion Control

€232.14excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 3AT450.6?

Material number: 3AT450.6 Description: 2005 analog input module, 4 inputs, Pt100 (4-wire connections), -50 to +450°C, order 1x terminal block TB170 separately!

Specifications

Short description

I/O module

4 inputs for Pt100 resistance measurement

General information

Diagnostics – Converter	Yes, using LED status indicator
Power consumption – 24 VDC	3.0 W
Power consumption – 5 VDC	1.0 W
Power consumption – Total	4.0 W
Electrical isolation – Channel - Channel	No
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	Converter function, measuring time

Resistance measurement temperature inputs

Input	Resistance measurement for 4-wire connections
Digital converter resolution	13500 steps internally
Conversion time	100 ms at 20 ms measurement time / 85 ms at 16.67 ms measurement time
Output format	INT
Sensor	Pt100: -50 to 450°C
Basic accuracy	±0.1% at 20°C (note: Based on the measurement range.)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.

Accessories

Required accessories (order separately)

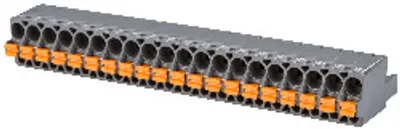

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3AT450.6PDF · 422 KB · 1.0 (06/08/2004) - EN
