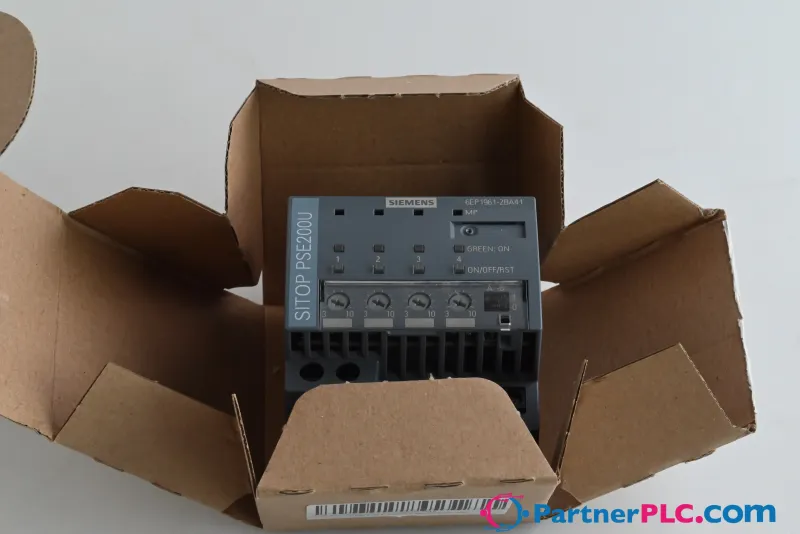

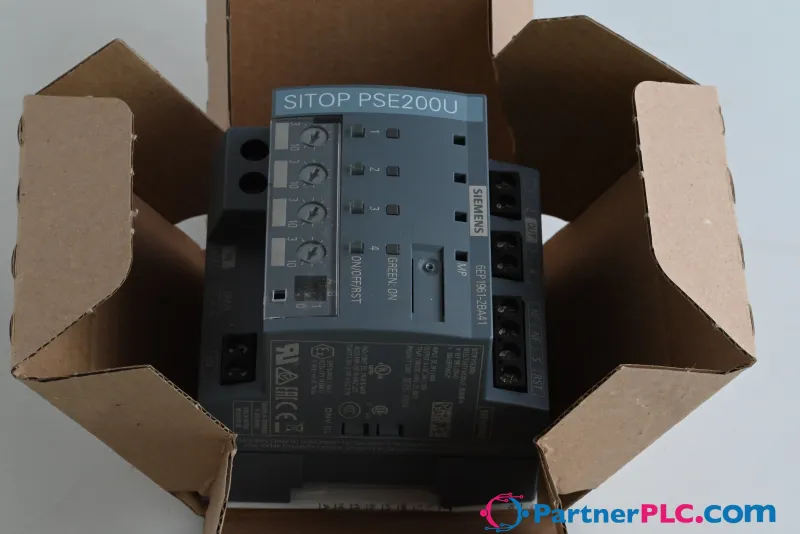

Selectivity module, 4 x 10 A Single-channel signaling
input
type of the power supply network
Controlled DC voltage
supply voltage at DC rated value
24 V
input voltage at DC
22 ... 30 V
overvoltage overload capability
35 V
input current at rated input voltage 24 V rated value
40 A
output
voltage curve at output
controlled DC voltage
formula for output voltage
Vin - approx. 0.2 V
relative overall tolerance of the voltage note
In accordance with the supplying input voltage
number of outputs
4
output current up to 60 °C per output rated value
10 A
adjustable current response value current of the current-dependent overload release
3 ... 10 A
type of response value setting
via potentiometer
response delay maximum
5 s
product feature parallel switching of outputs
No
type of outputs connection
simultaneous switch-on of all outputs after power-up of the supply voltage > 20 V, delay time of 25 ms, 100 ms, or "load-optimized" via DIP switch configurable for sequential switch-on
efficiency
efficiency in percent
99 %
power loss [W] at rated output voltage for rated value of the output current typical
10 W
switch-off characteristic
switching characteristic — of the excess current
Iout = 1.0 ...1.5 x set value, switch-off after approx. 5 s
switching characteristic — of the current limitation
Iout = 1.5 x set value, switch-off after typ. 100 ms
switching characteristic — of the immediate switch-off
Iout > set value and Vin < 20 V, switch-off after approx. 0.5 ms
residual current at switch-off typical
1 mA
design of the reset device/resetting mechanism
via sensor per output
remote reset function
non-isolated 24 V input (signal level "high" at > 15 V)
protection and monitoring
fuse protection type at input
15 A per output (not accessible)
display version for normal operation
Three-color LED per output: green LED for "Output switched through"; yellow LED for "Output switched off manually"; red LED for "Output switched off due to overcurrent"
design of the switching contact for signaling function
Status signal output (pulse/pause signal, can be evaluated via Simatic function block)
safety
galvanic isolation between input and output at switch-off
global warming potential [CO2 eq] — during manufacturing
8.7 kg
global warming potential [CO2 eq] — during operation
274 kg
global warming potential [CO2 eq] — after end of life
0.2 kg
Siemens eco profile (SEP)
Siemens EcoTech
ambient conditions
ambient temperature — during operation
-25 ... +60 °C; with natural convection
ambient temperature — during transport
-40 ... +85 °C
ambient temperature — during storage
-40 ... +85 °C
environmental category according to IEC 60721
Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connection
screw terminal
type of electrical connection — at input
+24 V: 2 screw terminals for 0.5 ... 16 mm²; 0 V: 2 screw terminals for 0.5 ... 4 mm²
type of electrical connection — at output
Output 1 ... 4: 1 screw terminal each for 0.5 ... 4 mm²
type of electrical connection — for auxiliary contacts
Remote reset: 1 screw terminal for 0.5 ... 4 mm²
type of electrical connection — for signaling contact
1 screw terminal for 0.5 ... 4 mm²
mechanical data
width × height × depth of the enclosure
72 × 80 × 72 mm
installation width × mounting height
72 mm × 180 mm
required spacing — top
50 mm
required spacing — bottom
50 mm
required spacing — left
0 mm
required spacing — right
0 mm
fastening method
Snaps onto DIN rail EN 60715 35x7.5/15
fastening method — DIN-rail mounting
Yes
fastening method — S7 rail mounting
No
fastening method — wall mounting
No
housing can be lined up
Yes
net weight
0.2 kg
accessories
mechanical accessories
Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
further information internet links
internet link — to website: Industry Mall
https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool
https://www.siemens.com/tstcloud
internet link — to web page: power supplies
https://siemens.com/sitop
internet link — to website: CAx-Download-Manager
https://siemens.com/cax
internet link — to website: Industry Online Support
https://support.industry.siemens.com
identification link
Yes; acc. to IEC 61406-1:2022
additional information
other information
Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
