Home / B&R / B&R x20ca0e61.00030 New without box Rev. C1 – POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m

New

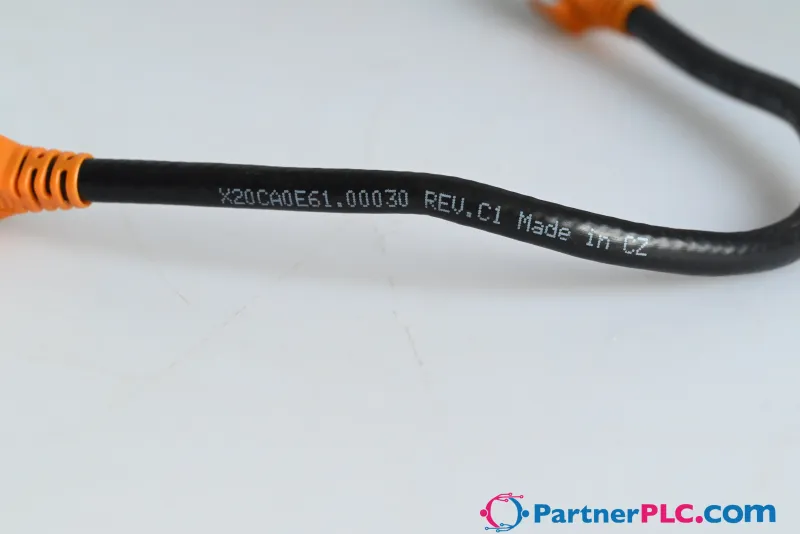

B&R x20ca0e61.00030 New without box Rev. C1 – POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m

Name: B&R x20ca0e61.00030 New without box Rev. C1 – POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m
Brand: B&R
SKU: x20ca0e61.00030
Price: 47.70 EUR
Availability: InStock

MPN: x20ca0e61.00030 · Brand: B&R

€47.70 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Category	Accessories
Warranty	12-month
Weight	0.02 kg
Country of origin	CZ

Shipping & availability

When can x20ca0e61.00030 be shipped?

x20ca0e61.00030 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up x20ca0e61.00030 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like x20ca0e61.00030.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for x20ca0e61.00030, subject to availability and destination.

POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m

Specifications

Short description

Accessories

POWERLINK/Ethernet connection cable RJ45 to RJ45, 0.3 m

General information

Cable cross section – AWG	4x 2x 26 AWG
Cable cross section – mm²	4x 2x 0.16 mm²
Durability	Flame-retardant per IEC 60332-3-24; RoHS 2011/65/EU
Type	Connection cable

Cable construction

Outer jacket – Material	PVC
Outer jacket – Color	Black (RAL 9005)
Wires – Wire insulation	Polyethylene (PE)
Wires – Wire colors	Blue-white, blue, orange-white, orange, green-white, green, brown-white, brown
Wires – Shield	Overlapping aluminum-clad foil, tinned copper braiding, ≥85% coverage
Wires – Type	Tinned copper strand 26/7 AWG
Wires – Stranding	Pair stranding - 4 pairs; Blue-white with blue, orange-white with orange, green-white with green, brown-white with brown
Inner jacket	Halogen-free, flame-retardant

Electrical properties

Test voltage – Wire - Wire	1000 V
Test voltage – Wire - Shield	1000 V
Operating voltage	Max. 125 V
Conductor resistance	≤145 Ω/km at 20°C
Transfer properties	Category 5e / Class D up to 100 MHz per ISO/IEC 11801
Transfer rate	10/100/1000 Mbit/s
Insulation resistance	≥5 GΩ/km at 20°C

Operating conditions

Degree of protection per EN 60529 – Cables	IP65
Degree of protection per EN 60529 – RJ45 connector	IP20, only when properly connected

Ambient conditions

Temperature – Transport	-40 to 80°C
Temperature – Fixed installation	-40 to 80°C
Temperature – Flexible installation	-10 to 60°C

Mechanical properties

Dimensions – Length	0.3 m
Dimensions – Diameter	6.7 mm ±0.2 mm
Bend radius – Fixed installation	≥4x outer diameter
Bend radius – Flexible installation	≥8x outer diameter
Weight	0.058 kg/m

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

X20 System User´s Manual

PDF · 50 MB · 4.40 (03/10/2026) - EN

Certificates (3)

E470046 UL POWERLINK cable	PDF · 59 KB · 1.00 (06/09/2022) - EN
E549520 UL X20 POWERLINK cable	PDF · 279 KB · 1.00 (02/12/2026)
EU Declaration ACOPOSmicro	PDF · 201 KB · 2024-04 (04/23/2024)
