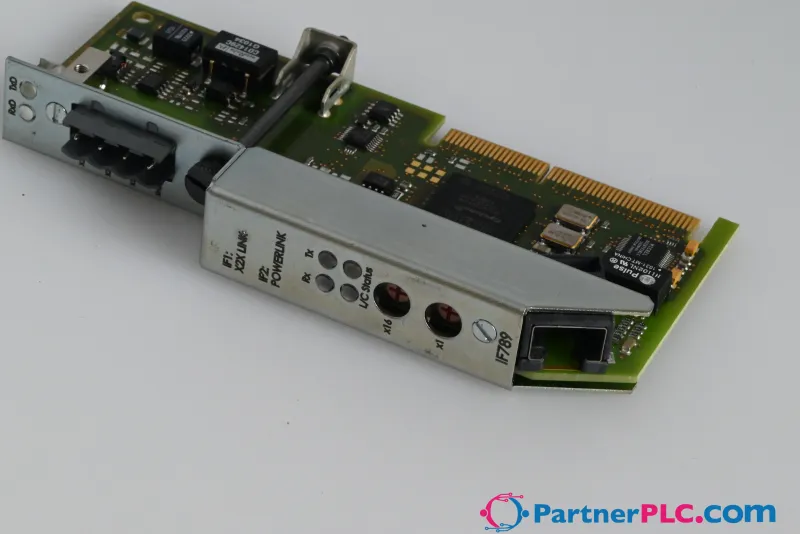

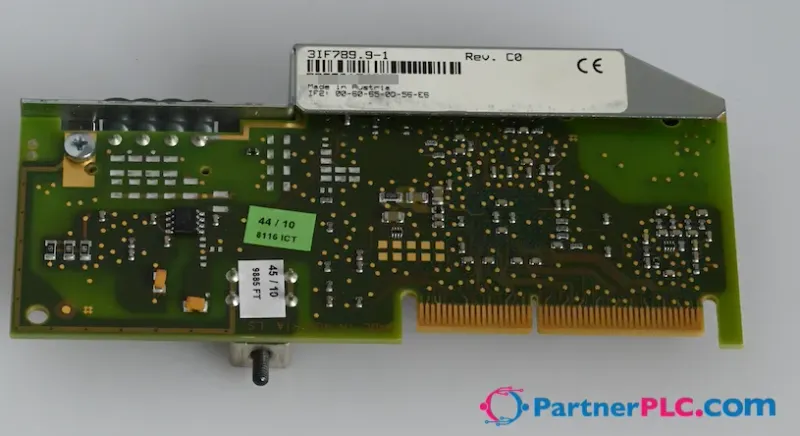

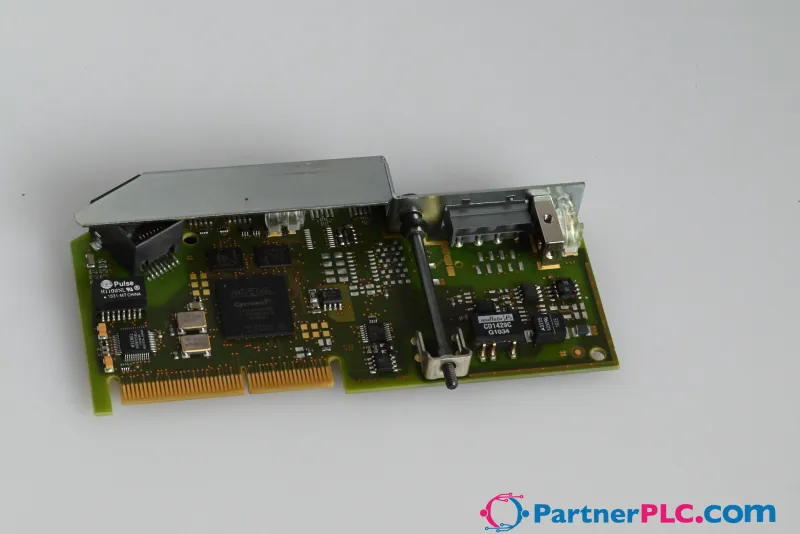

B&R 3IF789.9-1

MPN: 3IF789.9-1
Category: Communication Modules

€280.90excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 3IF789.9-1?

B&R 3IF789.9-1

Specifications

Short description

Communication module

1x X2X Link master, 1x POWERLINK (V1/V2) managing or controlled node

General information

Diagnostics – Bus function (IF2)	Yes, using LED status indicator and software
Diagnostics – Data transfer (IF1)	Yes, using LED status indicator and software
Diagnostics – Station status (IF2)	Yes, using LED status indicator and software
Power consumption – 3.3 VDC	2.3 W
Power consumption – 5 VDC	0.5 W
Power consumption – Total	2.8 W
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PLC - IFx	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Status indicators	Transmitting/Receiving data for IF1 ; Status of POWERLINK station, network activity, link/collision for IF2

Interfaces

Interface IF1 – Fieldbus	X2X Link master
Interface IF1 – Execution	4-pin male multipoint connector
Interface IF1 – Number of stations	Max. 253
Interface IF1 – Internal bus power supply	No
Interface IF1 – Network topology	Line
Interface IF1 – Distance between 2 stations	Max. 100 m
Interface IF1 – Bus terminating resistor	Internal
Interface IF2 – Physical layer	100BASE-TX
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Fieldbus	POWERLINK (V1/V2) managing or controlled node
Interface IF2 – Type	Type 2General information, Hardware - IF/LS" in the POWERLINK help documentation."> (note: See)
Interface IF2 – Execution	1x shielded RJ45 port
Interface IF2 – Line length	Max. 100 m between two stations (segment length)
Interface IF2 – Transfer rate	100 Mbit/s
Interface IF2 – In/Out buffer	20 kB (note: Firmware version V50 and later. Before that, 11 kB.)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 separately.
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
0TB704.9	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
