Home / B&R / Digital I/O Modules / B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms

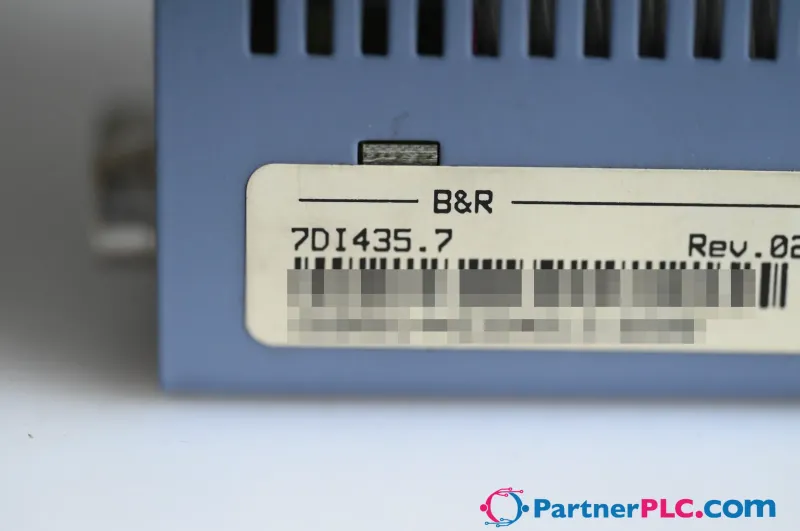

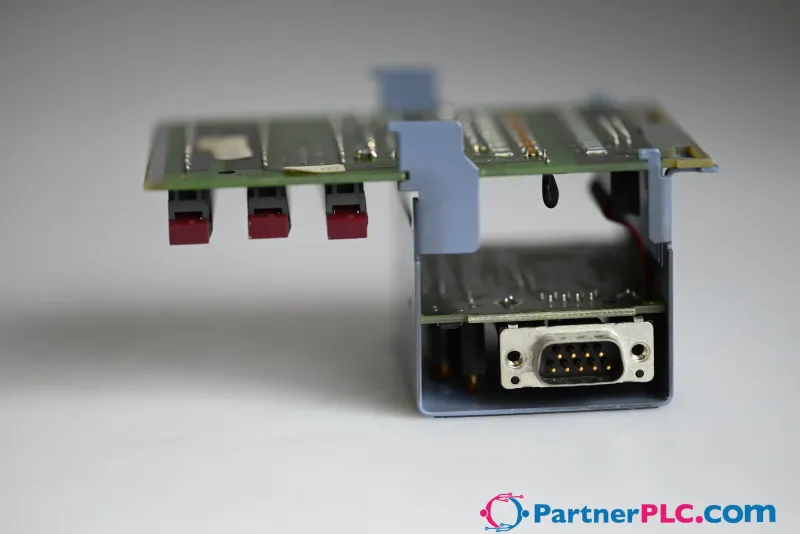

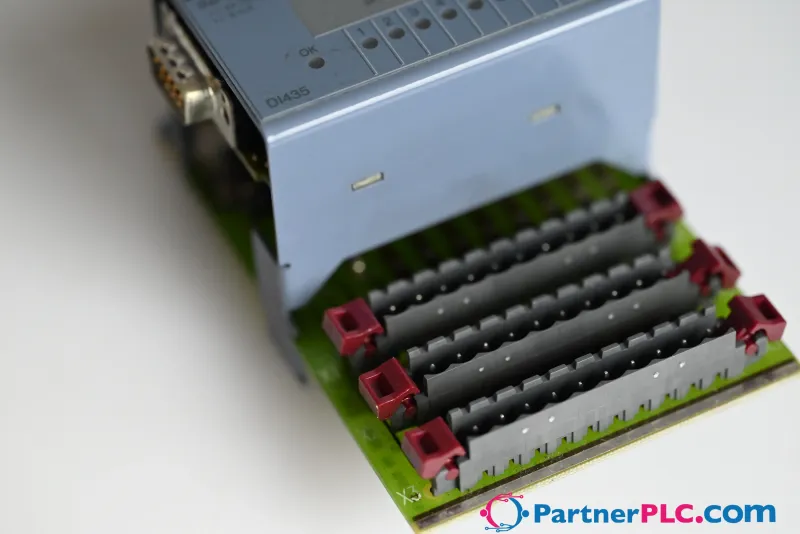

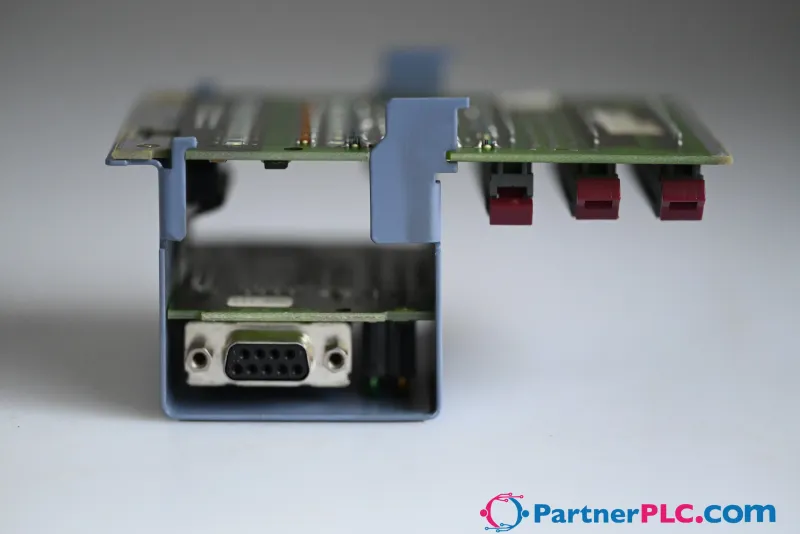

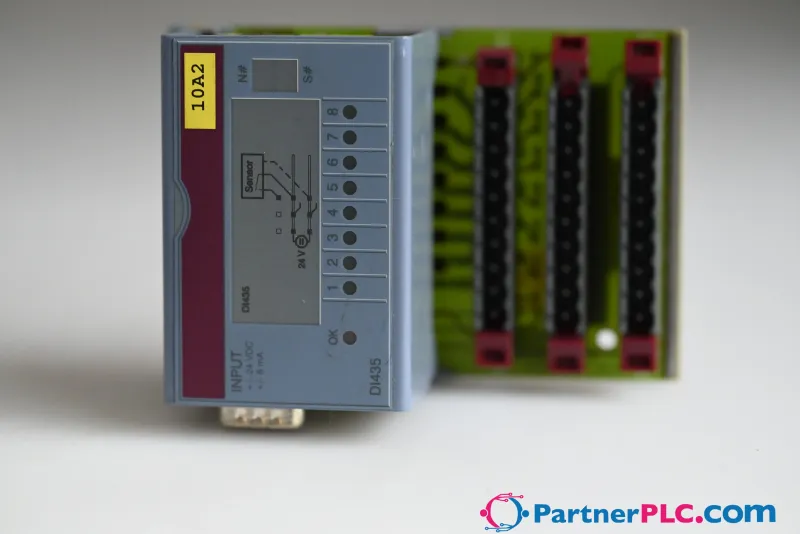

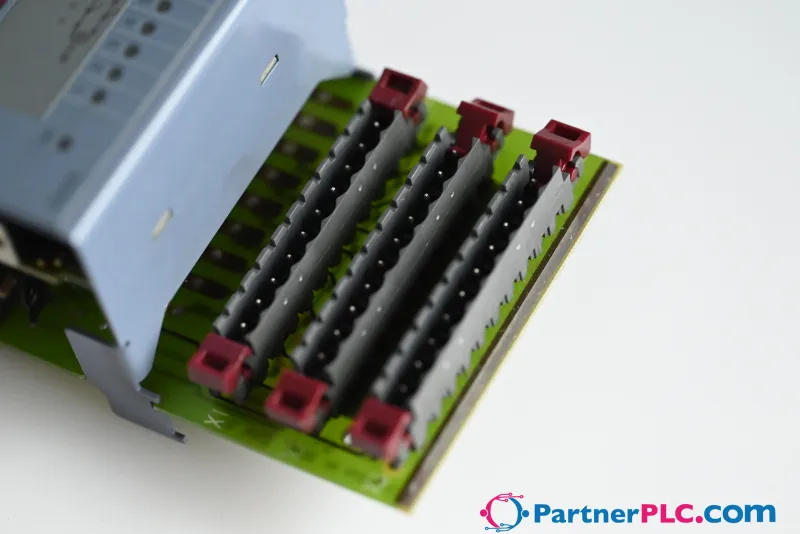

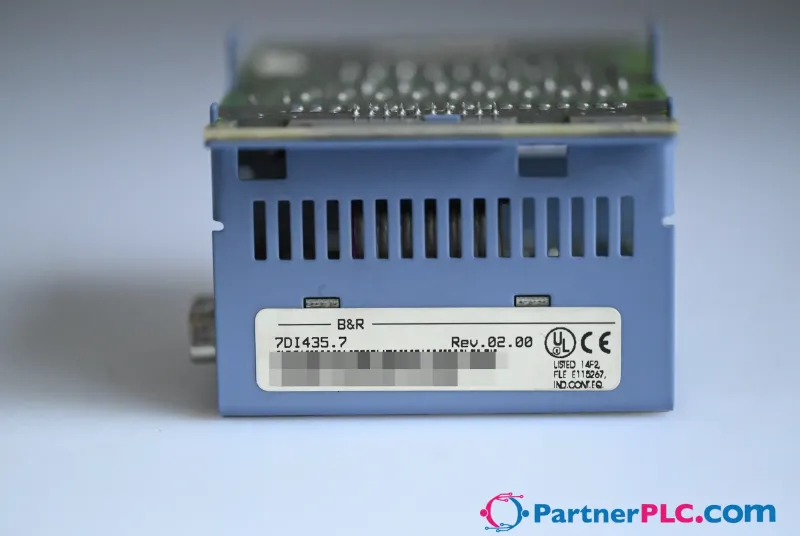

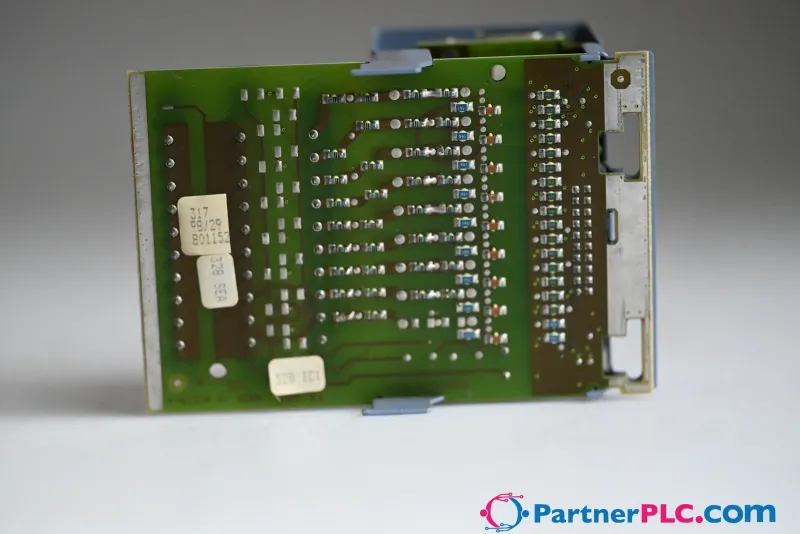

B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 1 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 2 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 3 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 4 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 5 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 6 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 7 of 8B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms — photo 8 of 8

B&R 7DI435.7 Used Rev. 02.00 – 2003 digital input module, 8 inputs 24 VDC, 1 ms

MPN: 7DI435.7 · Brand: B&R
€37.10 excl. VAT & shipping
Choose condition
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityIn stock — 1 available
CategoryDigital I/O Modules
Warranty12-month (new) · 3-month (used/refurbished)
Weight0.3 kg
Country of originAT
DatasheetManufacturer datasheet ↗

Shipping & availability

When can 7DI435.7 be shipped?

7DI435.7 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 7DI435.7 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 7DI435.7.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7DI435.7, subject to availability and destination.

2003 digital input module, 8 inputs 24 VDC, 1 ms, sink/source, order 3x terminal block 7TB710 separately!

Accessories

Required accessories (order separately)

7TB710.91Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.
7TB710.9Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Specifications

General Information

Short Description2003 digital input module, 8 inputs 24 VDC, 1 ms, sink/source, Order terminal blocks separately!
C-UL-US ListedYes
B&R ID Code$E1

Static Characteristics

Module TypeB&R 2003 I/O Module
WiringSink or source
Input Voltage – Minimum18 VDC
Input Voltage – Nominal24 VDC
Input Voltage – Maximum30 VDC
Switching Threshold – LOW<5 V
Switching Threshold – HIGH>15 V
Input DelayMax. 1 ms (at 18 - 30 V)
Input Current at Nominal VoltageApprox. 8 mA (sink/source)
Voltage Monitoring (LED: U-OK)Yes Supply voltage >18 V
Power ConsumptionMax. 0.2 W

Operating Characteristics

Electrical IsolationInput - PCC

Mechanical Characteristics

DimensionsB&R 2003 single width

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DI435.7PDF · 424 KB · 1.0 (06/08/2004) - EN
