B&R

B&R 7AI774.70

MPN: 7AI774.70
Category: Analog I/O Modules

€58.30excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 7AI774.70?

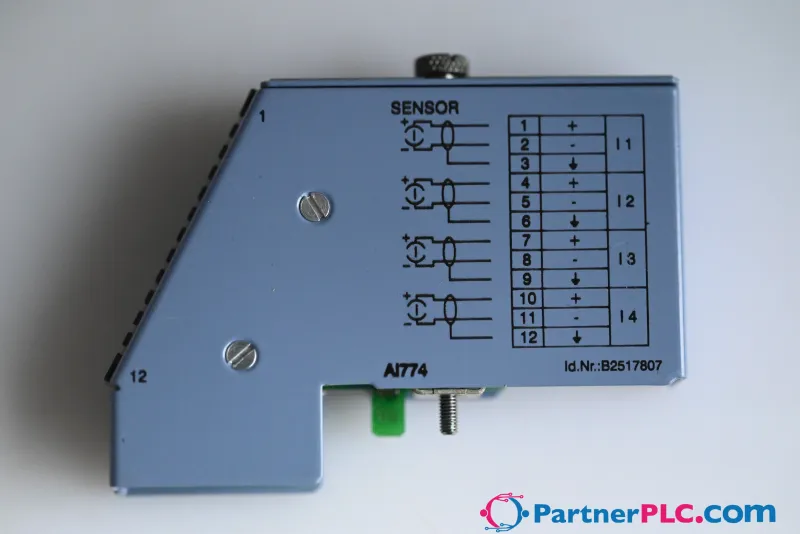

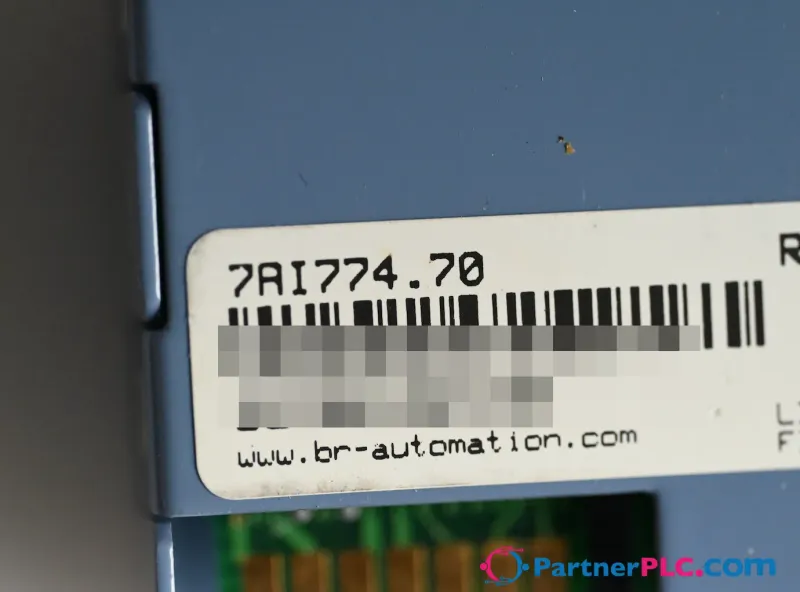

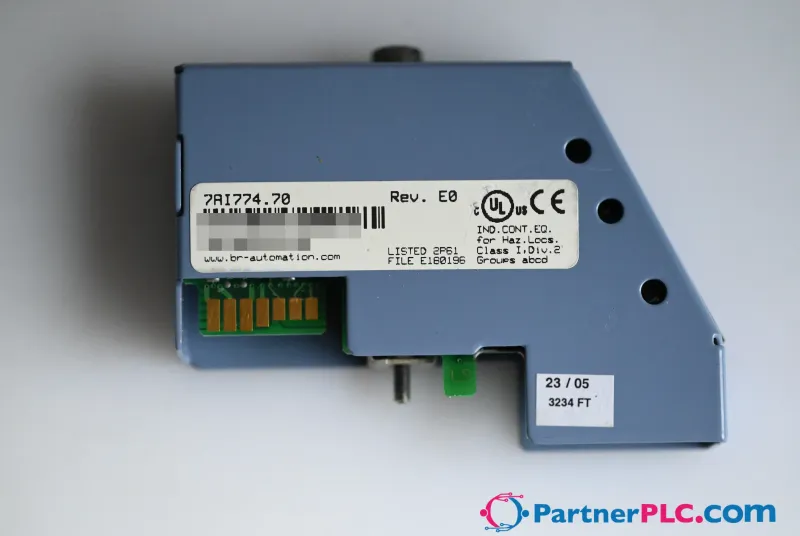

B&R 7AI774.70

Specifications

General Information

Short Description	2003 Analog Input Module, 4 inputs, 0 to 20 mA, 12 Bit, screw-in module, Order TB712 terminal block separately!
C-UL-US Listed	Yes
B&R ID Code	$06
Slot	AF101 adapter module, CP interface

Static Characteristics

Module Type	B&R 2003 screw-in module
Number of Inputs	4 differential inputs
Input Signal	0 - 20 mA (also ±20 mA)
Digital Converter Resolution	12 Bit
Differential Input Resistance (load)	130 - 200 Ω
Measurement Precision at 25 °C – Offset	Max. ±5 µA
Measurement Precision at 25 °C – Gain	Max. 0.05 % of final value
Measurement Precision at 25 °C – Linearity Error	Max. 0.05 % of final value
Temperature Drift	±0.012 %/°C ±0.4 µA/°C
Power Consumption	Max. 0.4 W

Dynamic Characteristics

Input Filter – Cut-off Frequency	225 Hz
Input Filter – Attenuation	60 dB

Operating Characteristics

Electrical Isolation – Input - PCC	No
Electrical Isolation – Input - Input	No

Mechanical Characteristics

Dimensions

B&R 2003 screw-in module

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7AI774.70PDF · 312 KB · 1.0 (06/08/2004) - EN
