Home / B&R / Digital I/O Modules / B&R 7DI435.7

B&R

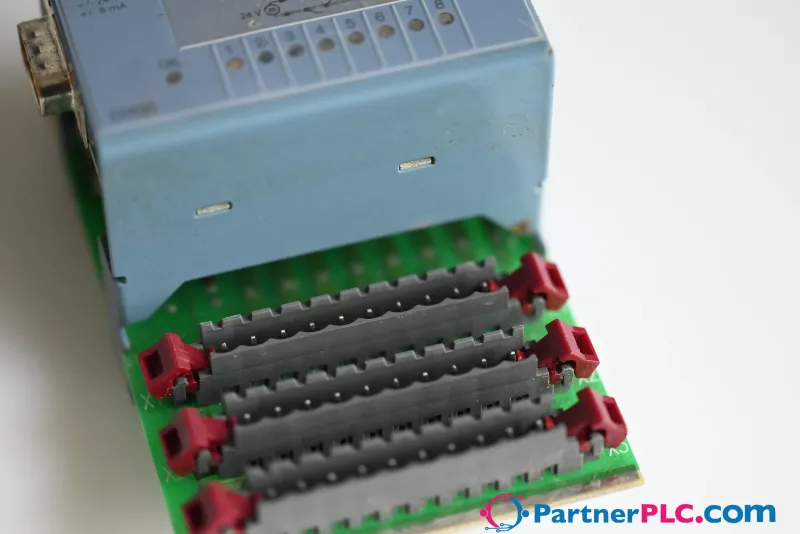

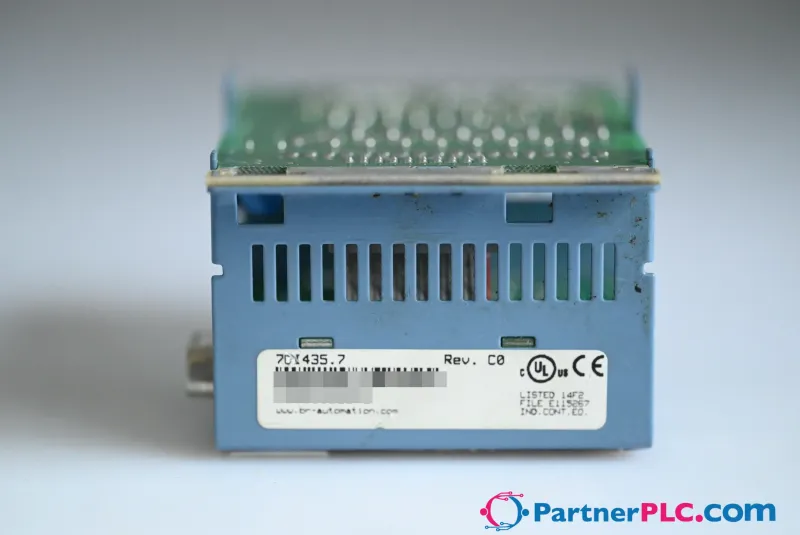

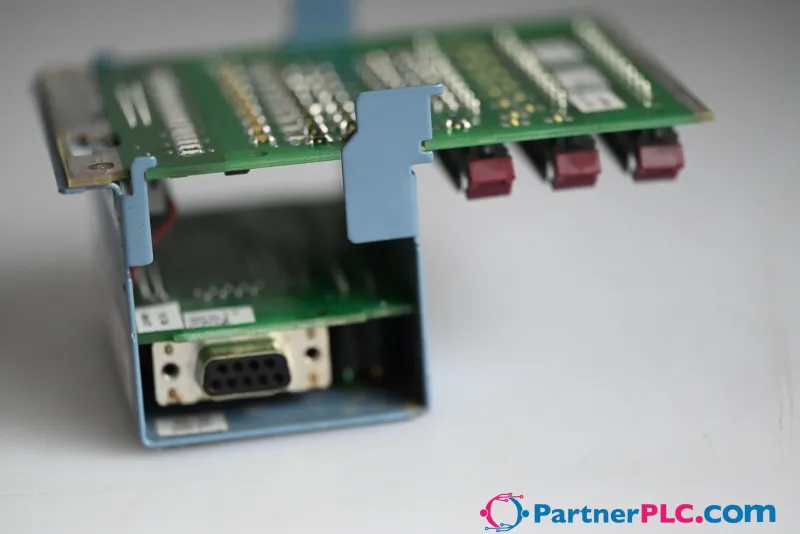

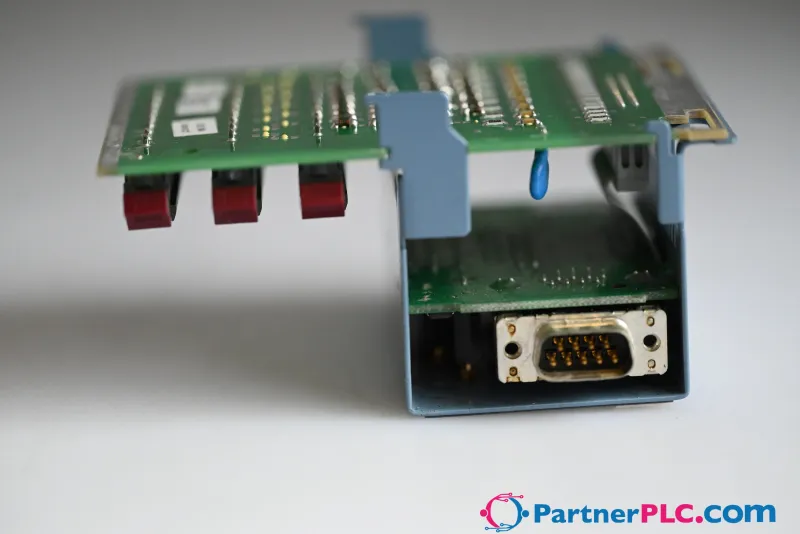

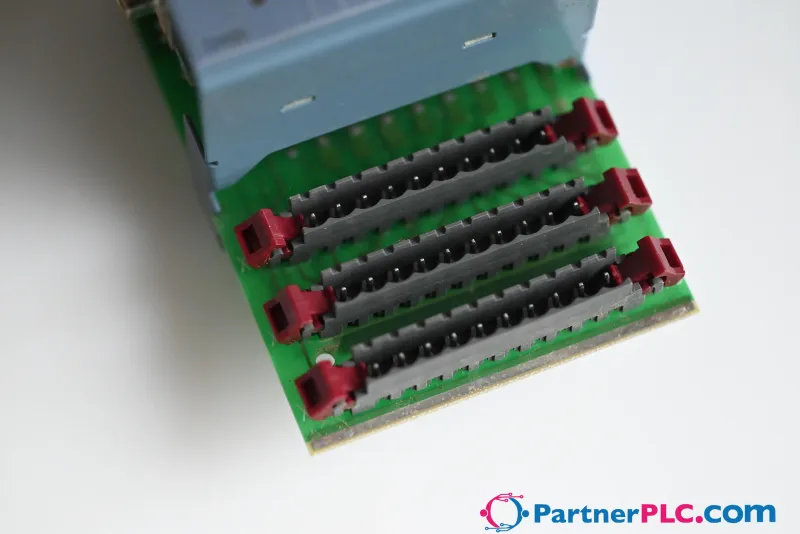

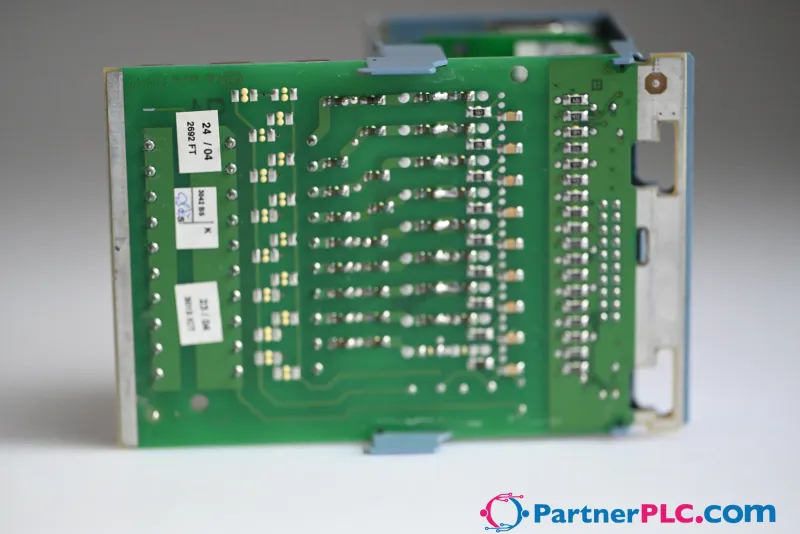

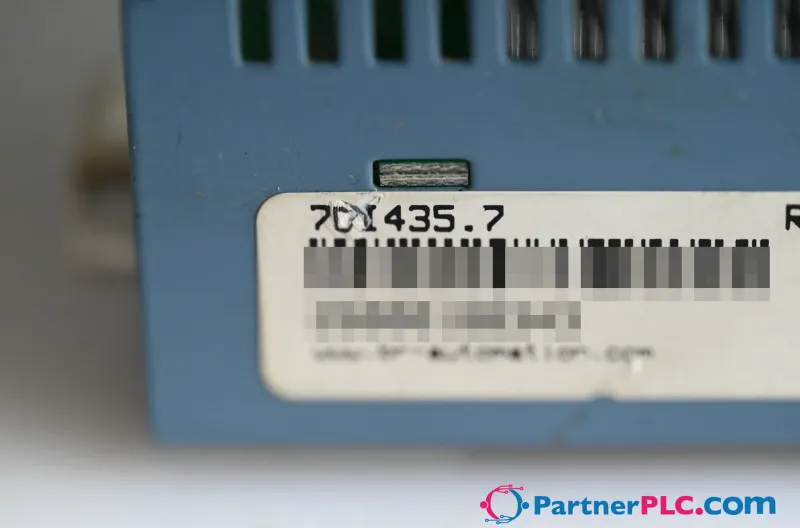

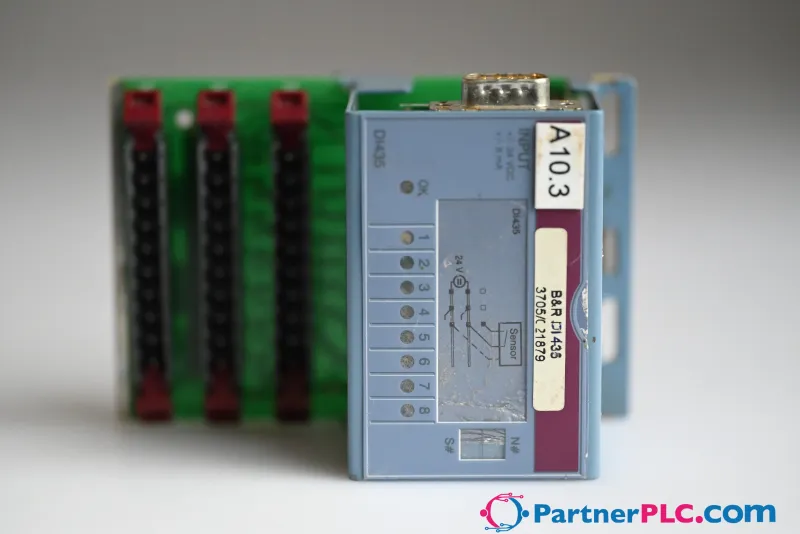

B&R 7DI435.7

MPN: 7DI435.7
Category: Digital I/O Modules

€37.10excl. VAT & shipping

In stock — 5 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 7DI435.7?

B&R 7DI435.7

Specifications

General Information

Short Description	2003 digital input module, 8 inputs 24 VDC, 1 ms, sink/source, Order terminal blocks separately!
C-UL-US Listed	Yes
B&R ID Code	$E1

Static Characteristics

Module Type	B&R 2003 I/O Module
Wiring	Sink or source
Input Voltage – Minimum	18 VDC
Input Voltage – Nominal	24 VDC
Input Voltage – Maximum	30 VDC
Switching Threshold – LOW	<5 V
Switching Threshold – HIGH	>15 V
Input Delay	Max. 1 ms (at 18 - 30 V)
Input Current at Nominal Voltage	Approx. 8 mA (sink/source)
Voltage Monitoring (LED: U-OK)	Yes Supply voltage >18 V
Power Consumption	Max. 0.2 W

Operating Characteristics

Electrical Isolation

Input - PCC

Mechanical Characteristics

Dimensions

B&R 2003 single width

Accessories

Required accessories (order separately)

7TB710.91	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.
7TB710.9	Terminal blocks — The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DI435.7PDF · 424 KB · 1.0 (06/08/2004) - EN
