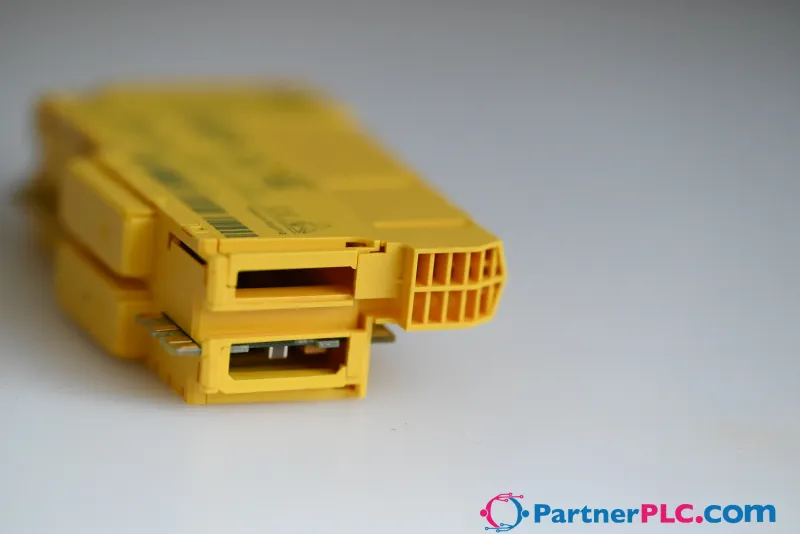

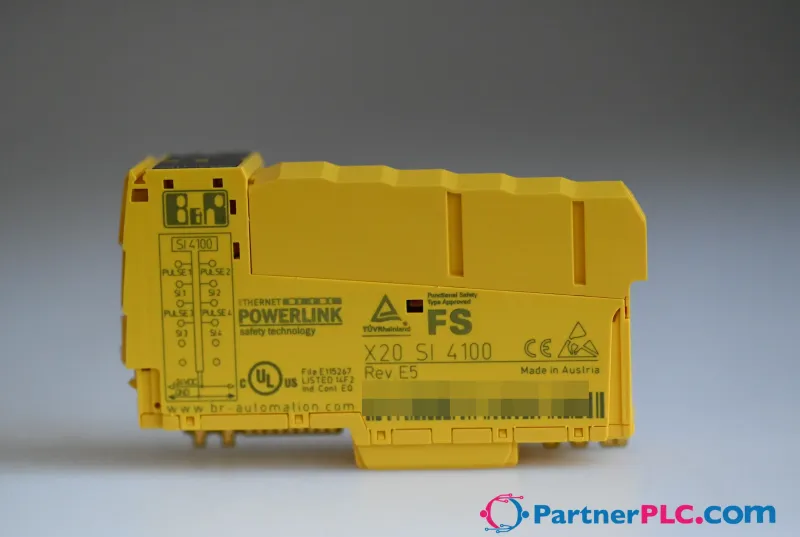

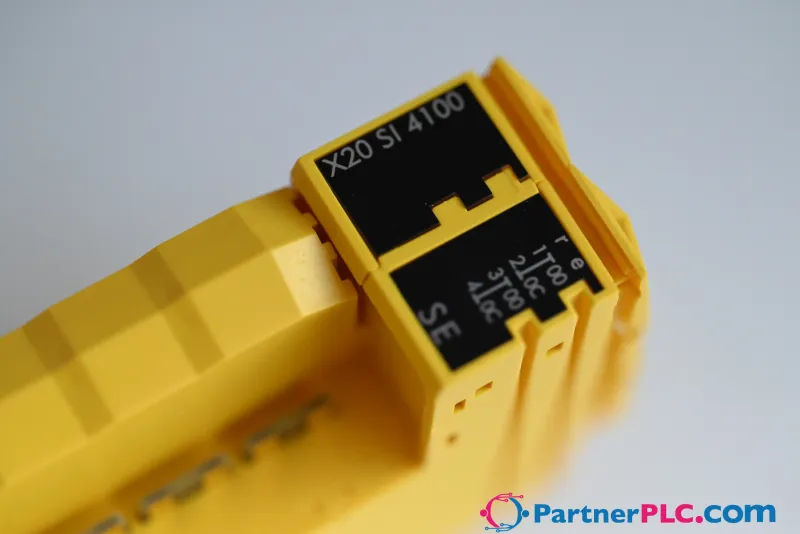

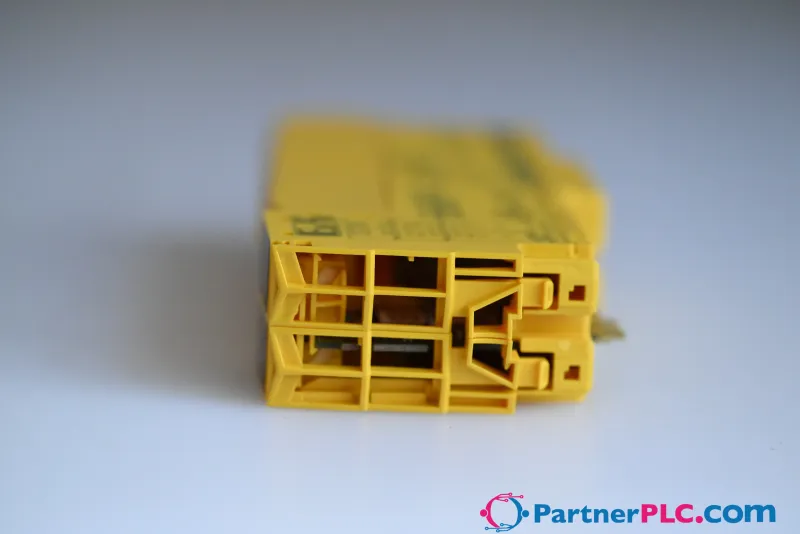

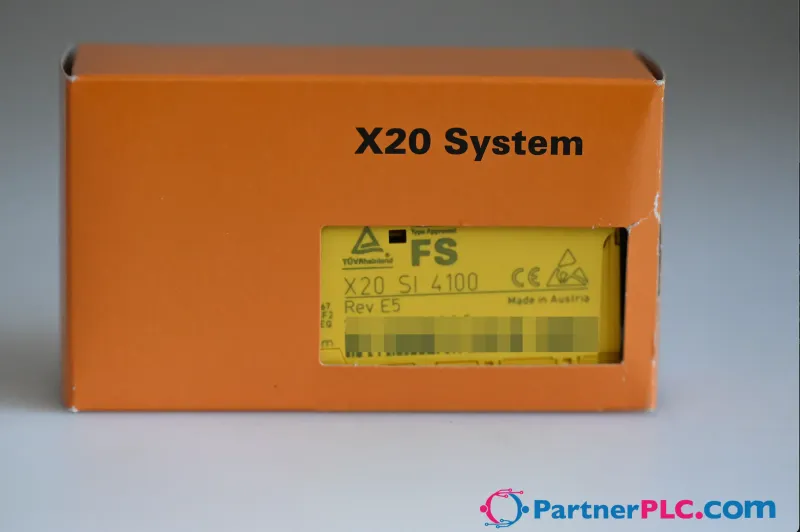

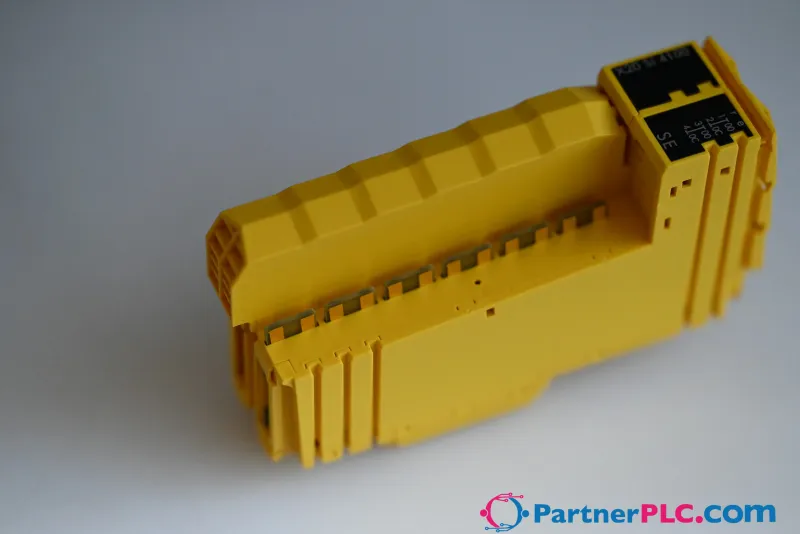

B&R X20SI4100

MPN: X20SI4100
Category: Accessories

€210.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20SI4100?

Material number: X20IF2792 Description: X2X Link connection CAN bus connection Integrated terminating resistor The interface module can be used to expand the X20 CPU for specific applications. It is equipped with both an X2X Link interface and a CAN bus interface.

Specifications

Short description

I/O module

4 safe type A digital inputs, 4 pulse outputs, 24 VDC

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Blackout mode – Scope	Module
Blackout mode – Function	Module functionality
Blackout mode – Standalone mode	No
Power consumption – Bus	0.32 W
Power consumption – Internal I/O	1.25 W
Electrical isolation – Channel - Bus	Yes
Electrical isolation – Channel - Channel	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0x1DBD
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]Mechanical and electrical configuration" in the X20 system user's manual.">	0.6 (note: Number of outputs x R DS(on) x Nominal output current 2 . This value also applies to sensors that are supplied via these outputs. For a calculation example, see section)

Safety characteristics

Note	See section "Safety characteristics".

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protective function	Reverse polarity protection

Safe digital inputs

Input filter – Hardware	≤150 μs
Input filter – Software	Configurable between 0 and 500 ms
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Quantity	4
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 4.59 mA. Hardware revision J0 and later: Min. 2 mA to max. 3.28 mA. (note: The input current specifications refer to the switched-on state of the input.)
Input resistance	Min. 5.23 kΩ, hardware revision J0 and later: Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 V eff
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line; Max. 400 m with shielded line

Pulse outputs

Quantity	4
Variant	Push-Pull
Nominal output current	100 mA, hardware revision J0 and later: 50 mA
Output protection	Thermal shutdown of all channels in the event of overload or short circuit, hardware revision J0 and later: Shutdown of individual channels in the event of overload or short circuit (note: The protective function is provided for max. 30 minutes for a continuous short circuit.)
Peak short-circuit current	300 mA, hardware revision J0 and later: 25 A for 15 µs
Short-circuit current	100 mA eff
Leakage current when the output is switched off	0.1 mA
R DS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to R DS(on)
Total nominal current	400 mA, hardware revision J0 and later: 200 mA

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately.; Order 1x safety-keyed bus module separately.
Pitch	25 +0.2 mm

Accessories

Required accessories (order separately)

X20BM36	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous.; Manual node number assignment; Independent from the electronic…
X20BM33	Bus modules — Bus module for SafeIO modules; The internal I/O power supply is continuous. The bus module is the base for all SafeIO modules. The internal…
X20TB52	Terminal blocks — Tool-free wiring using push-in technology; Simple wire release using a lever; Labeling option for each terminal connection; Plain text labe…
