Serial Gateways Parts
Compare Serial Gateways
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | MTBF | Physical | Mass | Dimensions: Width |
|---|---|---|---|---|---|

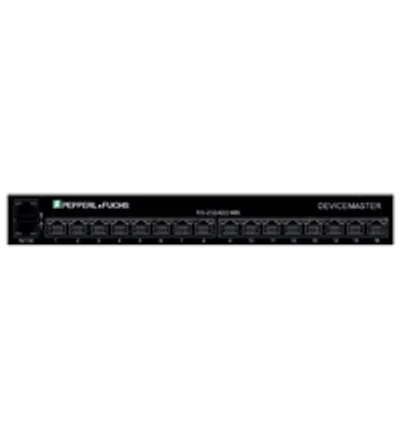

| ICDM-RX/TCP-16RJ45/2RJ45-PM | 70139042 | 39.1 a | 16 x RJ45 | 1.11 kg | 140 mm |

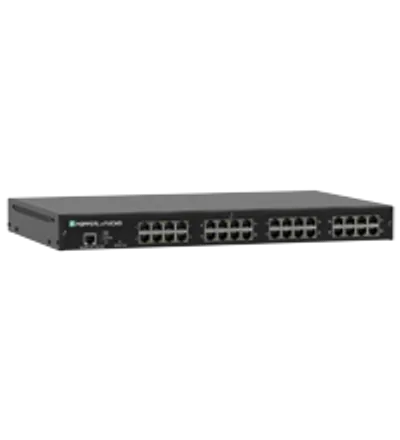

| ICDM-RX/TCP-32RJ45/RJ45-RM | 70114050 | 12.9 a | 32 x RJ45 | 2.89kg | 273.4 mm |

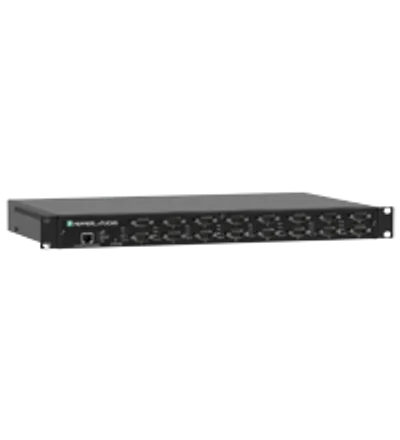

| ICDM-RX/TCP-16DB9/RJ45-RM | 70114049 | 15.5 a | 16 x DB9 | 2.9kg | 275.3 mm |
| ICDM-RX/MOD-DB9/RJ45-PM | 70114021 | 48.4 a | 1 x DB9 | 220g | 20.3 mm |
| ICDM-RX/EN-DB9/RJ45-PM | 70114020 | 48.4 a | 1 x DB9 | 220g | 20.3 mm |
| ICDM-RX/PN-DB9/RJ45-PM | 70114018 | 48.4 a | 1 x DB9 | 220g | 20.3 mm |
| ICDM-RX/TCP-2ST/RJ45-DIN | 70114045 | 58.6 a | 2 x Screw Terminal | 130.4g | 22.6 mm |
| ICDM-RX/MOD-2ST/RJ45-DIN | 70114031 | 58.6 a | 2 x Screw Terminal | 130.4g | 22.6 mm |
| ICDM-RX/EN-2ST/RJ45-DIN | 70114027 | 58.6 a | 2 x Screw Terminal | 130.4g | 22.6 mm |
| ICDM-RX/PN-2ST/RJ45-DIN | 70114029 | 58.6 a | 2 x Screw Terminal | 130.4g | 22.6 mm |
| ICDM-RX/PN-2DB9/RJ45-DIN | 70114028 | 46.3 a | 2 x DB9 | 136g | 22.9 mm |
| ICDM-RX/EN-2DB9/RJ45-DIN | 70114026 | 46.3 a | 2 x DB9 | 136g | 22.9 mm |
| ICDM-RX/MOD-2DB9/RJ45-DIN | 70114030 | 46.3 a | 2 x DB9 | 136g | 22.9 mm |
| ICDM-RX/TCP-2DB9/RJ45-DIN | 70114044 | 46.3 a | 2 x DB9 | 136g | 22.9 mm |

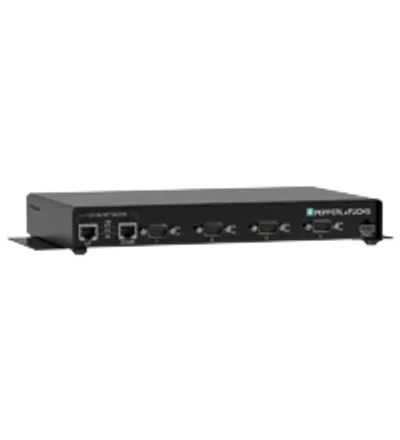

| ICDM-RX/TCP-4DB9/2RJ45-PM | 70114046 | 35.5 a | 4 x DB9 | 1.5kg | 160 mm |
| ICDM-RX/PN1-ST/RJ45-DIN | 70114038 | 61.4 a | 1 x screw terminal | 113.4g | 22.9 mm |
| ICDM-RX/TCP-DB9/RJ45-PM | 70104885 | 48.4 a | 1 x DB9 | 220g | 20.3 mm |
| ICDM-RX/PN-4DB9/2RJ45-DIN | 70104875 | 42.3 a | 4 x DB9 | 204g | 45.7 mm |
| ICDM-RX/MOD-4DB9/2RJ45-DIN | 70104884 | 42.3 a | 4 x DB9 | 204g | 45.7 mm |
| ICDM-RX/EN-4DB9/2RJ45-DIN | 70104872 | 42.3 a | 4 x DB9 | 204g | 45.7 mm |
| ICDM-RX/TCP-4DB9/2RJ45-DIN | 70104869 | 42.3 a | 4 x DB9 | 204g | 45.7 mm |
| ICDM-RX/PN-ST/RJ45-DIN | 70104874 | 61.4 a | 1 x screw terminal | 113.4g | 22.9 mm |
| ICDM-RX/MOD-ST/RJ45-DIN | 70104883 | 61.4 a | 1 x screw terminal | 113.4g | 22.9 mm |
| ICDM-RX/EN-ST/RJ45-DIN | 70104871 | 61.4 a | 1 x screw terminal | 113.4g | 22.9 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| LED indication | see manual |
| Supported baud rates | 300 bps to 230Kbps |
| Transfer rate | 10/100 Mbps |
| RoHS | EN IEC 63000:2018 |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | max. 95 % |
| Altitude | 0 ... 3048 m |
