Automatic Doors and Access Systems Parts
Compare Automatic Doors and Access Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Switching voltage | Switching current | Response time |
|---|---|---|---|---|---|
| TopScan-S-M/L750 | 216021 | 24 V DC +/- 20 % UB | 5 V ... 30 V AC/DC | max. 300 mA | ≤ 70 ms |

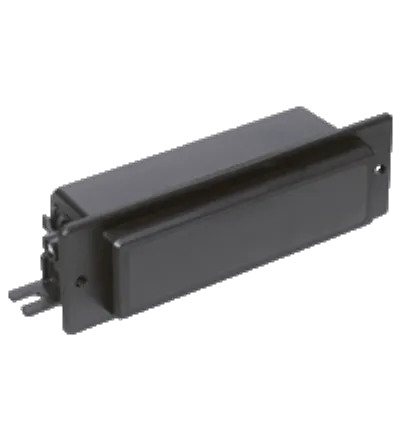

| AIR30/32-UP-2483/B | 418018 | 10 ... 30 V DC UB | 30 V DC | ≤ 200 mA | 50 ms |

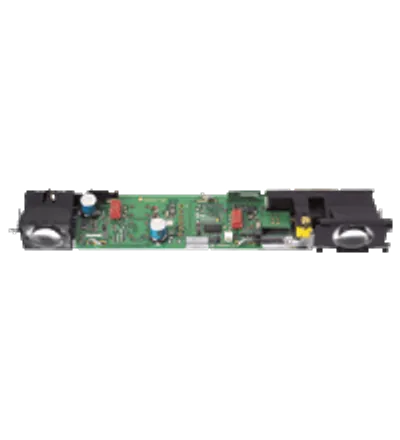

| AIR17-S Slave | 208178 | 24 V DC +/- 20 % UB | — | — | ≤ 70 ms |
| TOPSCAN2-8-HS-2500-2/L900/38a | 204548 | 17 ... 30 V DC , 18 ... 28 V AC UB | max. 24 V DC , 48 V AC | ≤ 1 A | 30 ms , 2 s after test |
| TOPSCAN2-8-HS-2500-3/L1350/38a | 418042 | 17 ... 30 V DC , 18 ... 28 V AC UB | max. 24 V DC , 48 V AC | ≤ 1 A | 30 ms , 2 s after test |
| TOPSCAN2-8-HS-2500-3/L1200/38a | 418040 | 17 ... 30 V DC , 18 ... 28 V AC UB | max. 24 V DC , 48 V AC | ≤ 1 A | 30 ms , 2 s after test |

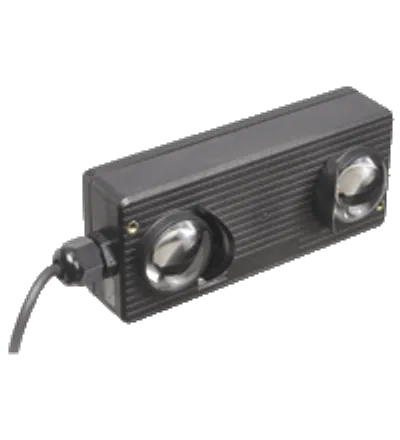

| LT2-8-HS-6000/49/115 | 419305 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 100 ms |

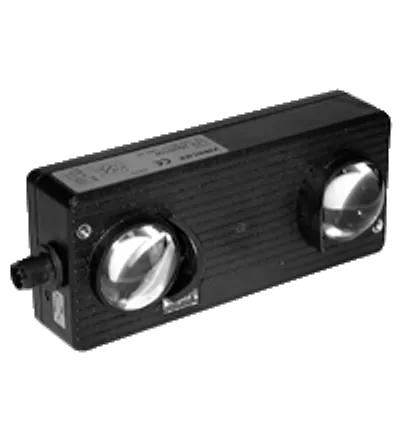

| LT2-8-HS-6000/49/105 | 419306 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 100 ms |
| LT2-8-HS-6000/47/115 | 419315 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 100 ms |
| LT2-8-HS-2000/47/115 | 419313 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 50 ms |

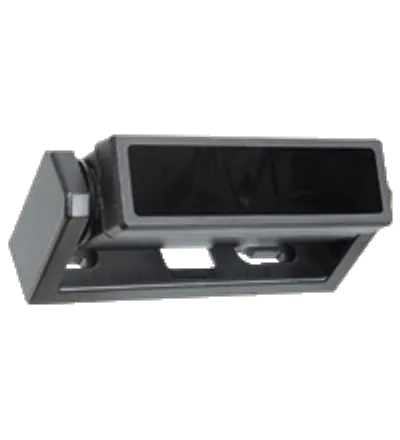

| AIR30-8-H-2500/32/76a | 418009 | 10 ... 30 V DC UB | 30 V DC | ≤ 200 mA | 70 ms |
| AIR30-8-HW-2500/38a/76a | 119605 | 10 ... 48 V DC / 11 ... 36 V AC UB | ≤ 50 V AC / 24 V DC | ≤ 200 mA AC / 1 A DC | 50 ms |
| AIR30-8-H-2500/38a | 119899 | 10 ... 48 V DC / 11 ... 36 V AC UB | ≤ 50 V AC / 24 V DC | ≤ 200 mA AC / 1 A DC | 70 ms |
| LT2-8-HS-6000/47/105 | 419316 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 100 ms |
| LT2-8-HS-2000/47/105 | 419314 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 50 ms |
| PROSCAN/38a | 419564 | 12 ... 36 V DC UB | 48 V DC | 1 A at 24 V DC | < 50 ms |
| TOPSCAN2-8-HS-2500-3/L900/38a | 418037 | 17 ... 30 V DC , 18 ... 28 V AC UB | max. 24 V DC , 48 V AC | ≤ 1 A | 30 ms , 2 s after test |
| TOPSCAN2-8-HS-2500-2/L750/38a | 418036 | 17 ... 30 V DC , 18 ... 28 V AC UB | max. 24 V DC , 48 V AC | ≤ 1 A | 30 ms , 2 s after test |
| PROSCAN-2597/38a/76a | 420852 | 12 ... 36 V DC UB | 48 V DC | 1 A at 24 V DC | < 50 ms |

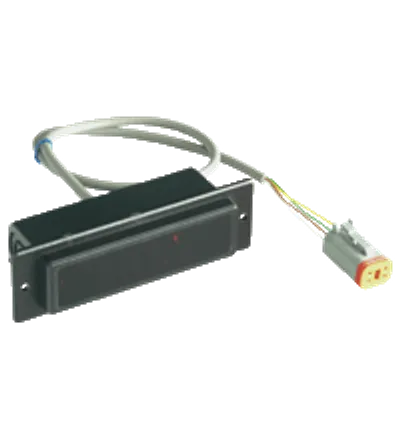

| AIR30/32-UP-2493 | 418014 | 24 V DC UB | max: 31.2 V DC | ≤ 0.2 A | 50 ms |
| AIR30/32-UP-2526/A | 420843 | 10 ... 30 V DC UB | 30 V DC | ≤ 200 mA | 50 ms |
| LT2-8-HS-2000/49/115 | 419309 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 50 ms |
| LT2-8-HS-2000/49/105 | 419310 | 15 ... 35 V DC UB | 35 V DC | 200 mA | 50 ms |
| PROSCAN/32 | 419552 | 12 ... 36 V DC UB | 38 V DC | 200 mA | < 50 ms |
