Vibration Sensors Parts
Compare Vibration Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Averaging time | Operating voltage | Current consumption | Mass |
|---|---|---|---|---|---|

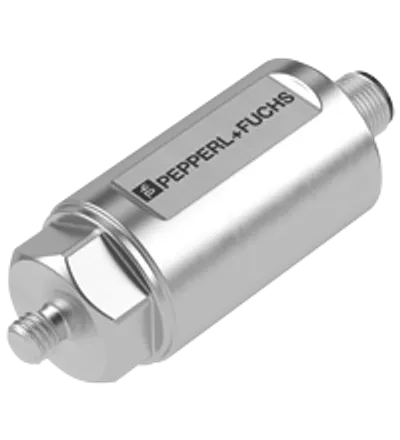

| VIM62PL-E0T16-0ME-I420V14 | 70141166-100002 | for v-rms: 12 s | 10 ... 30 V DC UB | max. 50 mA | approx. 200 g |
| VIM62PL-E0G10-0ME-I420V14 | 70141166-100003 | for a-rms: 12 s | 10 ... 30 V DC UB | max. 25 mA | approx. 200 g |

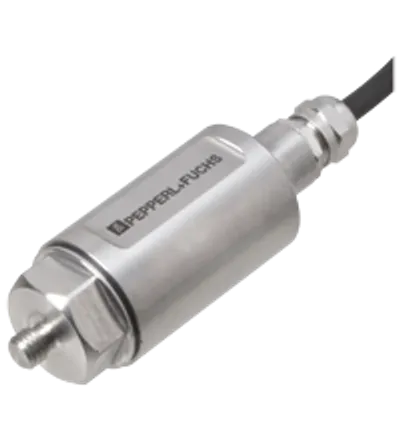

| VIM62PL-E0G10-0ME-I420K24 | 70141166-100004 | for a-rms: 12 s | 10 ... 30 V DC UB | max. 25 mA | 425 g |

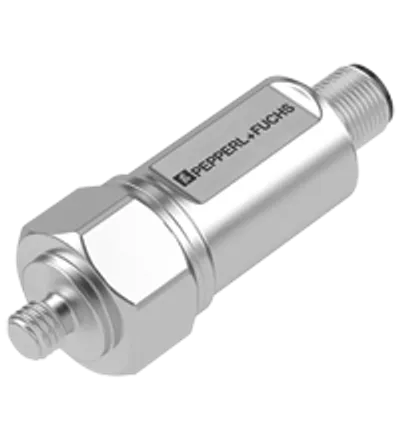

| VIM32PL-E1AC8-0RE-IO-1V1401 | 70140695-100001 | for v-rms: 2 s for a-rms: 2 s | 18 ... 30 V DC UB | max. 700 mA | approx. 100 g |
| VIM62PL-E1V16-0ME-I420V14 | 70141166-100000 | for v-rms: 2 s | 10 ... 30 V DC UB | max. 25 mA | approx. 200 g |
| VIM82PP-S1V16-21E-I422C28 | — | for v-rms: 2 s | 24 V DC + 7 % / - 10 % | max. 100 mA | 880 g |
| VIM62PP-E1V16-0HE-I420V14 | 70141166-100008 | for v-rms: 2 s | 10 ... 30 V DC UB | max. 25 mA | approx. 200 g |
| VIM62PP-E1V16-0PE-I420V15 | 70141166-100007 | for v-rms: 2 s | 10 ... 30 V DC UB | max. 25 mA | approx. 200 g |
| VIM62PL-E1T16-0ME-I420V14 | 70141166-100001 | for v-rms: 2 s | 10 ... 30 V DC UB | max. 50 mA | approx. 200 g |
Common to all listed parts
| Type | Vibration sensor |
| Surge protection | up to 2 kV |
| Degree of protection | DIN EN 60529, IP66, IP67 |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 1000 Hz |
| Vibration evaluation | DIN ISO 10816/20816 |
| Housing material | Stainless steel 1.4305 / AISI 303 |
