Diffuse Mode and Retroreflective Sensors Parts
Compare Diffuse Mode and Retroreflective Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Sensing range | Adjustment range | Response delay | Mass |
|---|---|---|---|---|---|
| UB2000-F42S-E4-V15 | 133993 | 60 ... 2000 mm | 90 ... 2000 mm | approx. 150 ms | 140 g |
| UB2000-F42-E7-V15 | 133989 | 60 ... 2000 mm | 90 ... 2000 mm | approx. 150 ms | 140 g |
| UB800-18GM40A-E5-610MM-Y | 70125619 | 50 ... 800 mm | 70 ... 800 mm | approx. 100 ms | 65 g |

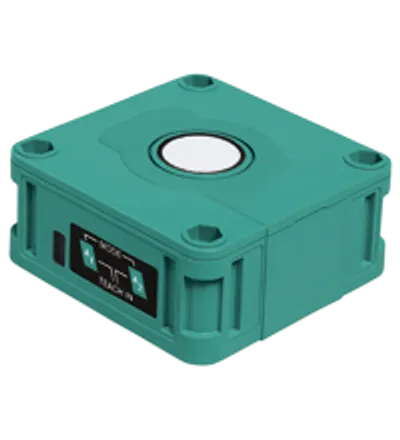

| UB1500-F42-UK-V95 | 111683 | 70 ... 1500 mm | 90 ... 1500 mm | approx. 150 ms | 260 g |

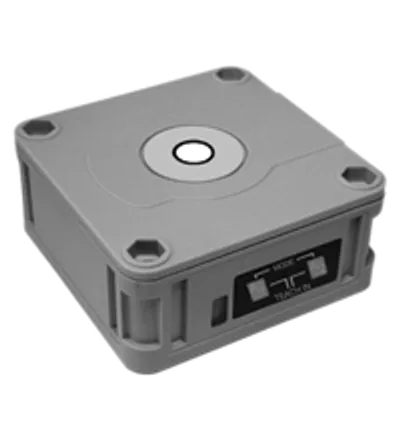

| UB400-F42-UK-V95 | 111681 | 40 ... 400 mm | 50 ... 400 mm | approx. 50 ms | 260 g |

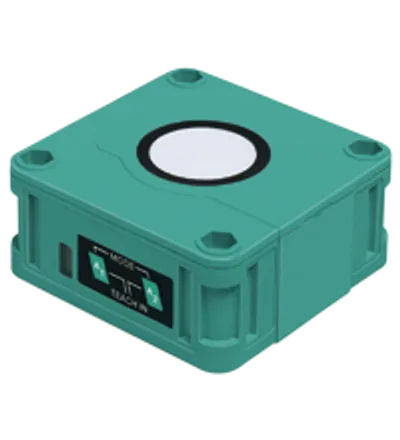

| UB3000-F42-UK-V95 | 111685 | 200 ... 3000 mm | 240 ... 3000 mm | approx. 325 ms | 260 g |
| UB2000-F42-E5-V15 | 133987 | 60 ... 2000 mm | 90 ... 2000 mm | approx. 150 ms | 140 g |

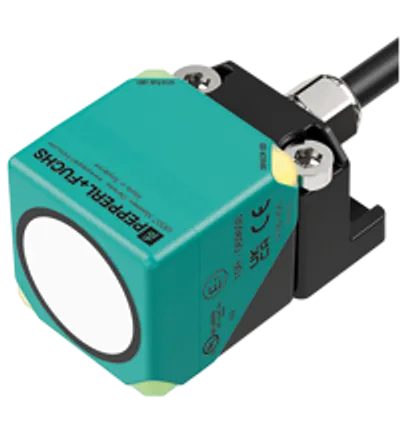

| UC4000-L2M-B16-0,3M-DT6P-M-P03 | 70134319-100022 | 200 ... 4000 mm | 240 ... 4000 mm | — | 240 g |
| UB800-18GM40A-U-610MM-Y | 70125618 | 50 ... 800 mm | 70 ... 800 mm | approx. 100 ms | 65 g |

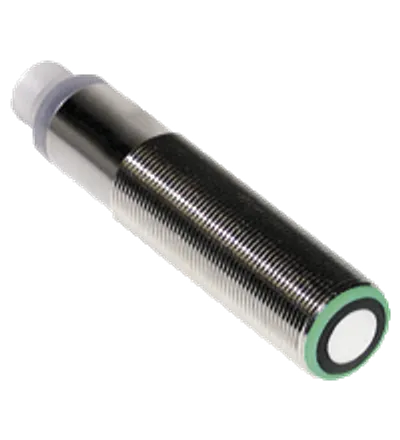

| UB1000-18GM75-E4-V15 | 204529 | 70 ... 1000 mm | 90 ... 1000 mm | approx. 125 ms | 60 g |

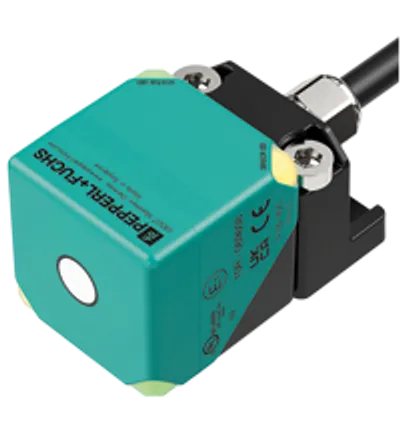

| UC500-L2M-B16-0,3M-DT6P-M | 70134319-100006 | 30 ... 500 mm | 50 ... 500 mm | — | 240 g |
| UC500-L2M-B16-0,3M-APS5P-M | 70134319-100003 | 30 ... 500 mm | 50 ... 500 mm | — | 245 g |

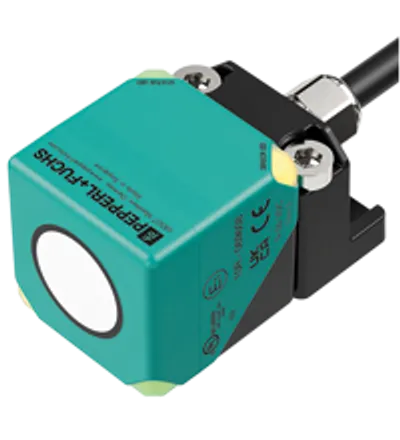

| UC2000-L2M-B16-0,3M-DT6P-M | 70134319-100007 | 80 ... 2000 mm | 120 ... 2000 mm | — | 240 g |
| UC2000-L2M-B16-0,3M-APS5P-M | 70134319-100004 | 80 ... 2000 mm | 120 ... 2000 mm | — | 245 g |

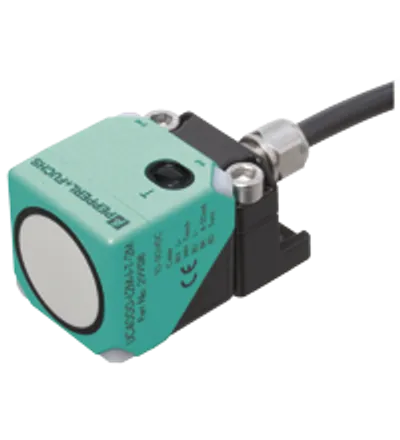

| UC4000-L2M-I-0,3M-APS5P | 70195664 | 200 ... 4000 mm | 240 ... 4000 mm | minimum: 110 ms factory setting: 615 ms | 245 g |

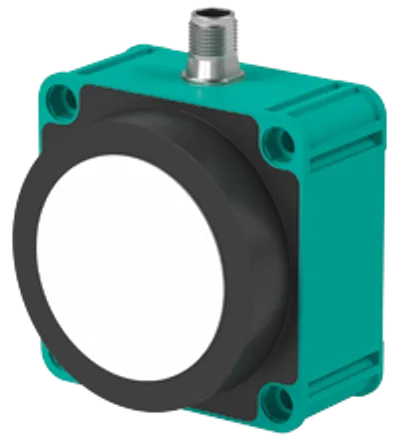

| UB6000-F42-2EP-IO-V15 | 70165295-100021 | 350 ... 6000 mm | 400 ... 6000 mm | 312 ms | 200 g |

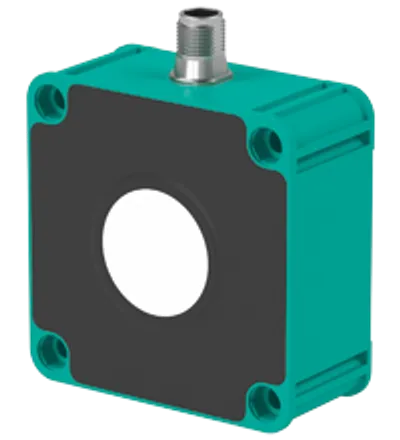

| UB4000-F42-2EP-IO-V15 | 70165295-100017 | 200 ... 4000 mm | 240 ... 4000 mm | 208 ms | 150 g |

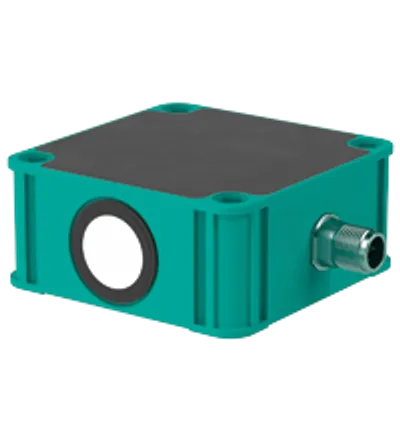

| UB2000-F42S-2EP-IO-V15 | 70165295-100013 | 60 ... 2000 mm | 80 ... 2000 mm | 108 ms | 130 g |

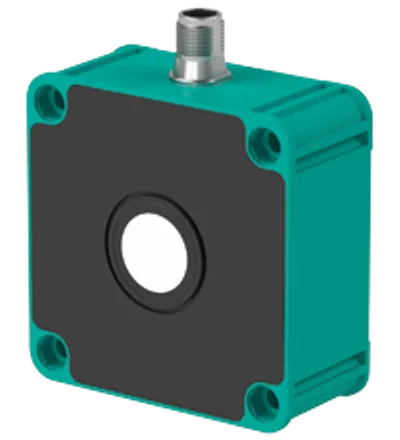

| UB2000-F42-2EP-IO-V15 | 70165295-100009 | 60 ... 2000 mm | 80 ... 2000 mm | 108 ms | 135 g |

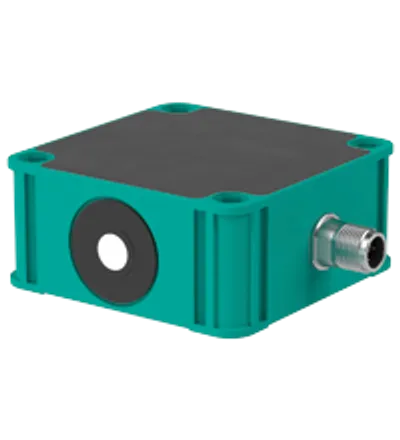

| UB500-F42S-2EP-IO-V15 | 70165295-100005 | 30 ... 500 mm | 50 ... 500 mm | 40 ms | 130 g |
| UB6000-F42-EP-IO-V15 | 70165295-100020 | 350 ... 6000 mm | 400 ... 6000 mm | 312 ms | 200 g |
| UB4000-F42-EP-IO-V15 | 70165295-100016 | 200 ... 4000 mm | 240 ... 4000 mm | 208 ms | 150 g |
| UB2000-F42S-EP-IO-V15 | 70165295-100012 | 60 ... 2000 mm | 80 ... 2000 mm | 108 ms | 130 g |
| UB500-F42S-EP-IO-V15 | 70165295-100004 | 30 ... 500 mm | 50 ... 500 mm | 40 ms | 130 g |
Common to all listed parts
| Standard target plate | 100 mm x 100 mm |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
