Wago
221-549/002-000Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; white
221 - Splicing connector with lever Parts
Wago

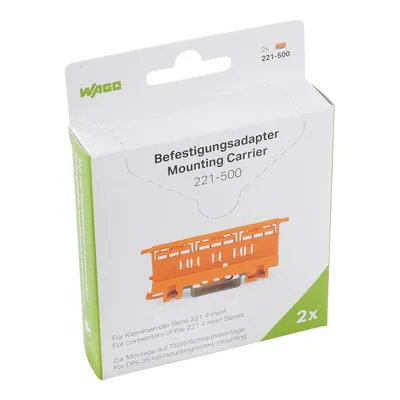

221-500/995-002Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; orange
Wago
221-510/000-006Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; blue
Wago
221-2514Mounting carrier with strain relief; 4-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-510/000-053Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; dark gray-yellow
Wago
221-549/000-053Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; dark gray-yellow
Wago
221-2512Mounting carrier with strain relief; 2-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-2535Mounting carrier; 5-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-2532Mounting carrier; 2-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-500/000-053Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; dark gray-yellow
Wago
221-2534Mounting carrier; 4-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-513Mounting carrier; for 3-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for horizontal mounting; white
Wago
221-549/000-006Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; blue
Wago
221-549Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; white
Wago
221-2513Mounting carrier with strain relief; 3-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-503/000-004Mounting carrier; for 3-conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; black
Wago
221-2515Mounting carrier with strain relief; 5-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-522Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for vertical mounting; white
Wago
221-2521Mounting carrier; 1-way; for inline splicing connector with lever; for screw mounting; gray
Wago
221-2533Mounting carrier; 3-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-500/000-006Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting; blue
Wago
221-505/000-004Mounting carrier; for 5-conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; black
Wago
221-515Mounting carrier; for 5-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for horizontal mounting; white
Compare 221 - Splicing connector with lever
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Width | Height | Fire load | Weight | GTIN |
|---|---|---|---|---|---|
| 221-549/002-000 | 43 mm / 1.693 inches | 23.7 mm / 0.933 inches | 0.182 MJ | 6.1 g | 4066966603873 |
| 221-941 | 12.3 mm / 0.484 inches | 10.74 mm / 0.423 inches | — | 2.9 g | 4055144067873 |
| 221-500/995-002 | 17.5 mm / 0.689 inches | 77.6 mm / 3.055 inches | 0.294 MJ | 9.8 g | 4066966002126 |
| 221-510/000-006 | 19.3 mm / 0.76 inches | 94.2 mm / 3.709 inches | 0.365 MJ | 12.2 g | 4055143833554 |
| 221-2514 | 38.8 mm / 1.528 inches | 11.03 mm / 0.434 inches | 0.246 MJ | 8.2 g | 4066966119909 |
| 221-510/000-053 | 19.3 mm / 0.76 inches | 94.2 mm / 3.709 inches | 0.366 MJ | 12.2 g | 4055143833585 |
| 221-549/000-053 | 43 mm / 1.693 inches | 23.7 mm / 0.933 inches | 0.213 MJ | 7.1 g | 4066966603866 |
| 221-2512 | 20.8 mm / 0.819 inches | 11.03 mm / 0.434 inches | 0.127 MJ | 4.2 g | 4066966119886 |
| 221-2535 | 47.8 mm / 1.882 inches | 11.03 mm / 0.434 inches | 0.232 MJ | 7.7 g | 4066966120011 |
| 221-2532 | 20.8 mm / 0.819 inches | 11.03 mm / 0.434 inches | 0.095 MJ | 3.2 g | 4066966119985 |
| 221-500/000-053 | 17.5 mm / 0.689 inches | 77.6 mm / 3.055 inches | 0.294 MJ | 9.8 g | 4055143833431 |
| 221-2534 | 38.8 mm / 1.528 inches | 11.03 mm / 0.434 inches | 0.186 MJ | 6.2 g | 4066966120004 |
| 221-513 | 23.7 mm / 0.933 inches | 21.4 mm / 0.843 inches | — | 3.6 g | 4055143640855 |
| 221-549/000-006 | 43 mm / 1.693 inches | 23.7 mm / 0.933 inches | 0.213 MJ | 7.1 g | 4066966603774 |
| 221-549 | 43 mm / 1.693 inches | 23.7 mm / 0.933 inches | 0.213 MJ | 7.1 g | 4066966603767 |
| 221-2513 | 29.8 mm / 1.173 inches | 11.03 mm / 0.434 inches | 0.185 MJ | 6.2 g | 4066966119893 |
| 221-503/000-004 | 23.7 mm / 0.933 inches | 16.9 mm / 0.665 inches | 0.103 MJ | 3.6 g | 4055143640800 |
| 221-2515 | 47.8 mm / 1.882 inches | 11.03 mm / 0.434 inches | 0.307 MJ | 10.2 g | 4066966119916 |
| 221-522 | 18.1 mm / 0.713 inches | 57.3 mm / 2.256 inches | 0.086 MJ | 2.9 g | 4055143595858 |
| 221-2521 | 11.8 mm / 0.465 inches | 6.5 mm / 0.256 inches | 0.05 MJ | 1.7 g | 4066966119923 |
| 221-2533 | 29.8 mm / 1.173 inches | 11.03 mm / 0.434 inches | 0.141 MJ | 4.7 g | 4066966119992 |
| 221-500/000-006 | 17.5 mm / 0.689 inches | 77.6 mm / 3.055 inches | 0.294 MJ | 9.8 g | 4055143833547 |
| 221-505/000-004 | 35 mm / 1.378 inches | 16.9 mm / 0.665 inches | 0.147 MJ | 4.9 g | 4055143640848 |
| 221-515 | 35 mm / 1.378 inches | 21.4 mm / 0.843 inches | — | 5 g | 4055143640893 |
Common to all listed parts
| Note (material data) | Information on material specifications can be found here |
| Insulation material (main housing) | Polyamide (PA66) |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
