Wago
221-539/000-006Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-15 rail; blue
221 - Splicing connector with lever Parts
Wago
221-539/1000-000Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-15 rail; for Ex applications; light gray
Wago
221-539Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-15 rail; white
Wago

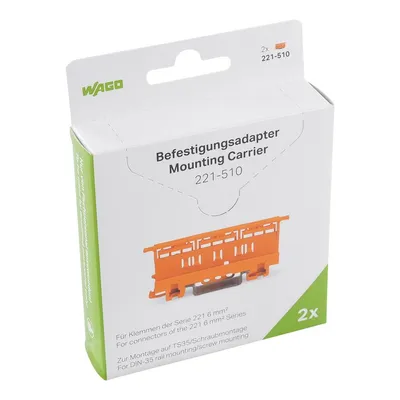

221-510/995-002Mounting carrier; 221 Series - 6 mm²; for DIN-35 rail mounting/screw mounting; orange
Wago
221-519/000-053Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for side screw mounting; dark gray-yellow
Wago
221-509/002-006Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for screw mounting; blue
Wago
221-525/000-004Mounting carrier; for 5-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for vertical mounting; black
Wago
221-522/000-004Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for vertical mounting; black
Wago
221-509/002-000Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for screw mounting; white
Wago
221-512/000-004Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for horizontal mounting; black
Wago
221-509Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for screw mounting; white
Wago
221-509/000-053Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for screw mounting; dark gray-yellow
Wago
221-2531Mounting carrier; 1-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-549/1002-000Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; for Ex applications; light gray
Wago
221-549/1000-000Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; for Ex applications; light gray
Wago
221-513/000-004Mounting carrier; for 3-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for horizontal mounting; black
Wago
221-549/002-053Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; dark gray-yellow
Wago
221-509/000-006Mounting carrier with strain relief; for 10-wire connectors; 221 Series - 4 mm²; for screw mounting; blue
Wago
221-523/000-004Mounting carrier; for 3-conductor terminal blocks; 221 Series - 4 mm²; with snap-in mounting foot for vertical mounting; black
Wago
221-2511Mounting carrier with strain relief; 1-way; for inline splicing connector with lever; with snap-in mounting foot; gray
Wago
221-549/002-006Mounting carrier; for 10-wire connectors; 221 Series - 4 mm²; for DIN-35 rail; blue
Wago
221-502/000-004Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; black
Compare 221 - Splicing connector with lever
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Height | Depth | Fire load | Weight | GTIN |
|---|---|---|---|---|---|
| 221-539/000-006 | 23.7 mm / 0.933 inches | 64.8 mm / 2.551 inches | 0.223 MJ | 7.4 g | 4066966603583 |
| 221-539/1000-000 | 23.7 mm / 0.933 inches | 64.8 mm / 2.551 inches | 0.214 MJ | 7.1 g | 4066966603910 |
| 221-539 | 23.7 mm / 0.933 inches | 64.8 mm / 2.551 inches | 0.223 MJ | 7.4 g | 4066966603828 |
| 221-510/995-002 | 94.2 mm / 3.709 inches | — | 0.357 MJ | 12.2 g | 4066966002225 |
| 221-519/000-053 | 55 mm / 2.165 inches | 23.7 mm / 0.933 inches | 0.176 MJ | 5.8 g | 4066966603224 |
| 221-509/002-006 | 30.5 mm / 1.201 inches | 23.7 mm / 0.933 inches | 0.145 MJ | 4.8 g | 4066966602982 |
| 221-525/000-004 | 57.3 mm / 2.256 inches | 16.9 mm / 0.665 inches | 0.152 MJ | 5.1 g | 4055143640978 |
| 221-522/000-004 | 57.3 mm / 2.256 inches | 16.9 mm / 0.665 inches | 0.086 MJ | 2.9 g | 4055143595889 |
| 221-509/002-000 | 30.5 mm / 1.201 inches | 23.7 mm / 0.933 inches | 0.145 MJ | 4.8 g | 4066966603125 |
| 221-512/000-004 | 21.4 mm / 0.843 inches | 52.8 mm / 2.079 inches | 0.083 MJ | 2.8 g | 4055143595872 |
| 221-509 | 55 mm / 2.165 inches | 23.7 mm / 0.993 inches | 0.176 MJ | 5.9 g | 4066966602975 |
| 221-509/000-053 | 55 mm / 2.165 inches | 23.7 mm / 0.993 inches | 0.176 MJ | 5.9 g | 4066966603200 |
| 221-2531 | 11.03 mm / 0.434 inches | 56 mm / 2.205 inches | 0.051 MJ | 1.7 g | 4066966119978 |
| 221-549/1002-000 | 23.7 mm / 0.933 inches | 64 mm / 2.52 inches | 0.173 MJ | 5.8 g | 4066966604009 |
| 221-549/1000-000 | 23.7 mm / 0.933 inches | 64 mm / 2.52 inches | 0.203 MJ | 6.8 g | 4066966603934 |
| 221-513/000-004 | 21.4 mm / 0.843 inches | 52.8 mm / 2.079 inches | 0.106 MJ | 3.6 g | 4055143640916 |
| 221-941/000-006 | 10.74 mm / 0.423 inches | 23.9 mm / 0.941 inches | — | 2.9 g | 4055144068016 |
| 221-549/002-053 | 23.7 mm / 0.933 inches | 39.5 mm / 1.555 inches | 0.182 MJ | 6.1 g | 4066966603781 |
| 221-509/000-006 | 55 mm / 2.165 inches | 23.7 mm / 0.993 inches | 0.176 MJ | 5.9 g | 4066966603118 |
| 221-523/000-004 | 57.3 mm / 2.256 inches | 16.9 mm / 0.665 inches | 0.106 MJ | 3.8 g | 4055143640954 |
| 221-2511 | 11.03 mm / 0.434 inches | 100 mm / 3.937 inches | 0.068 MJ | 2.2 g | 4066966119879 |
| 221-942/000-006 | 3.8 mm / 0.15 inches | 23.9 mm / 0.941 inches | — | 2.7 g | 4055144068115 |
| 221-549/002-006 | 23.7 mm / 0.933 inches | 39.5 mm / 1.555 inches | 0.182 MJ | 6.1 g | 4066966603699 |
| 221-502/000-004 | 16.9 mm / 0.665 inches | 52.8 mm / 2.079 inches | 0.082 MJ | 2.7 g | 4055143595865 |
Common to all listed parts
| Note (material data) | Information on material specifications can be found here |
| Insulation material (main housing) | Polyamide (PA66) |
| ECCN | NO US CLASSIFICATION |
| RoHS Compliance Status | Compliant,No Exemption |
