Spiral hose and fittings Parts

Danfoss

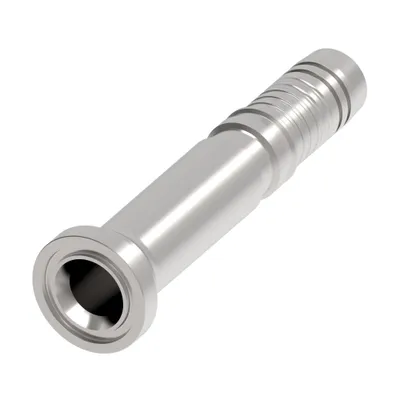

1F40117-2020-S

HOSE NIPPLE, 1A/20, C62/20, CS, STR

Danfoss

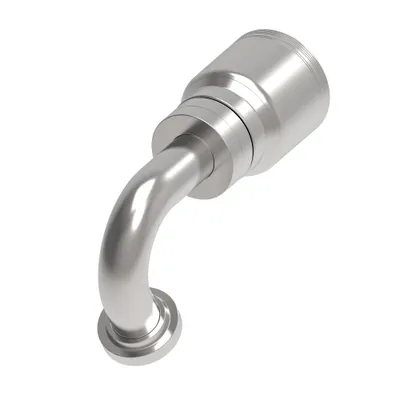

1F21455-3232-S

Ftng (perm), 6-sprl

Danfoss

1F21454-2432-S

Ftng (perm), 6-sprl

Danfoss

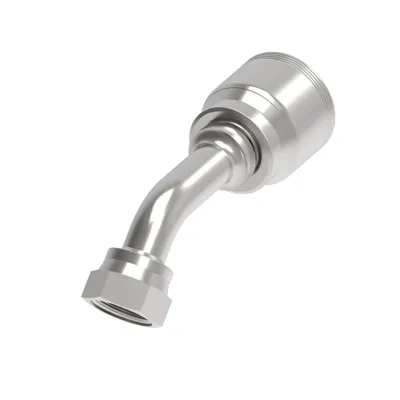

1F21347-1216-S

Ftng (perm), 4-sprl, ORS, 45 DEG Ftg

Danfoss

1F21182-1210-S

HOSE FTG, 1A/10, C62/12, CS, 90D

Danfoss

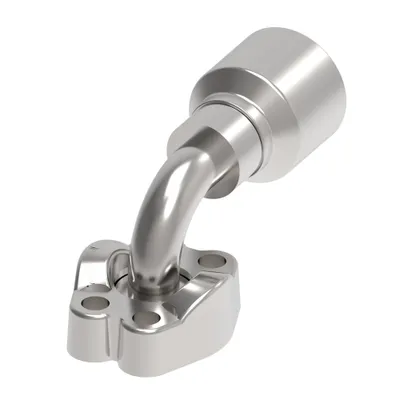

1F21182-0810-S

HOSE FTG, 1A/10, C62/08, CS, 90D

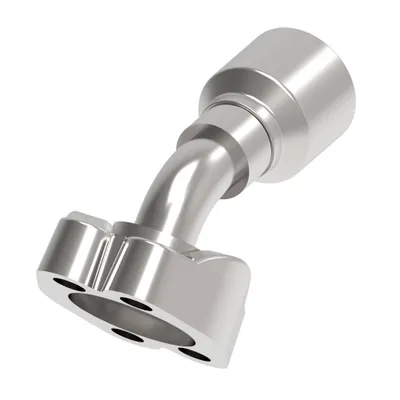

Danfoss

1F21181-1210-S

HOSE FTG, 1A/10, C62/12, CS, 45D

Danfoss

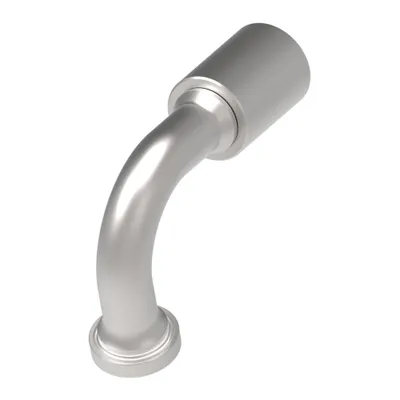

1F20716-1616-S

HOSE FTG, 1A/16, C62/16, CS, 105D

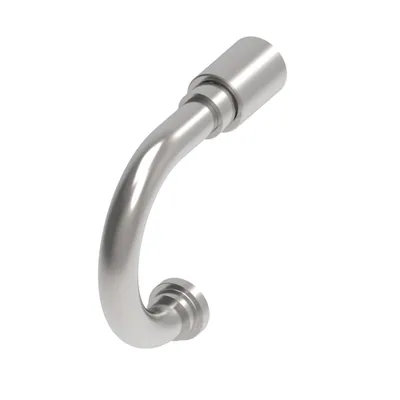

Danfoss

1F20543-1616-S

HOSE FTG, 1A/16, C62/16, CS, 180D

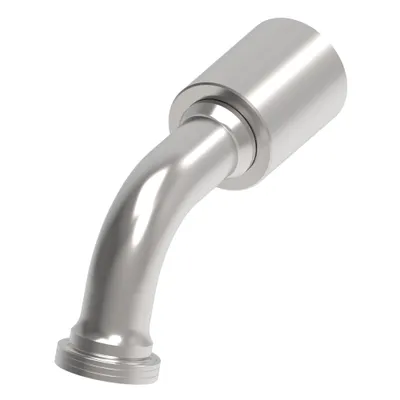

Danfoss

1F20542-2020-S

HOSE FTG, 1A/20, C62/20, CS, 70D

Danfoss

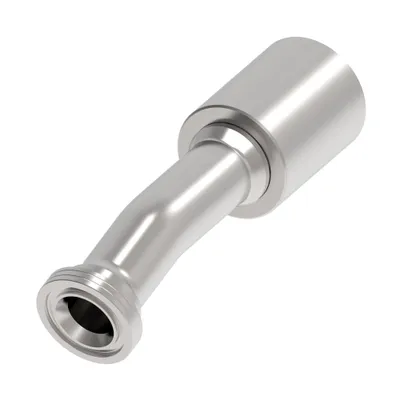

1F20541-2020-S

HOSE FTG, 1A/20, C62/20, CS, 15D

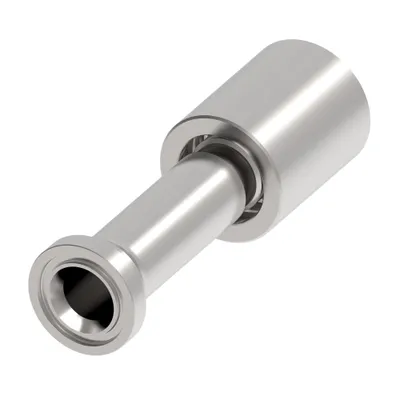

Danfoss

1F20540-2020-S

HOSE FTG, 1A/20, C62/20, CS, STR

Danfoss

1F20481-2020-S

HOSE FTG, 1A/20, C62/20, CS, STR

Danfoss

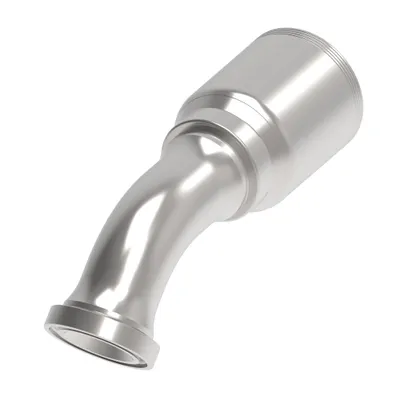

1F20343-2424-S

FTNG(PERM)4 SPRL 45 DEG CODE 61.5

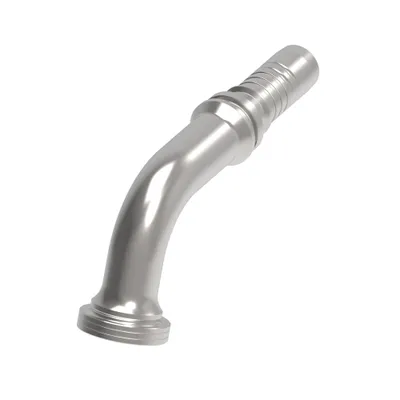

Danfoss

1F01271-1616-S

HOSE NIPPLE, 1A/16, C62/16, CS, 70D

Danfoss

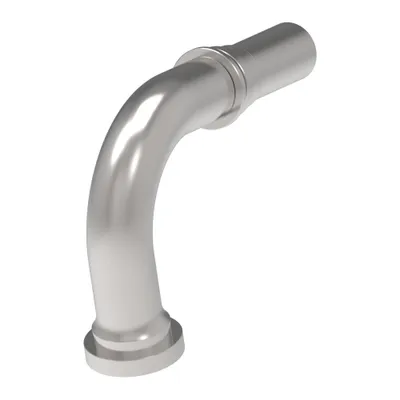

1F01010-1616-S

HOSE NIPPLE, 1A/16, C62/16, CS, 105D

Danfoss

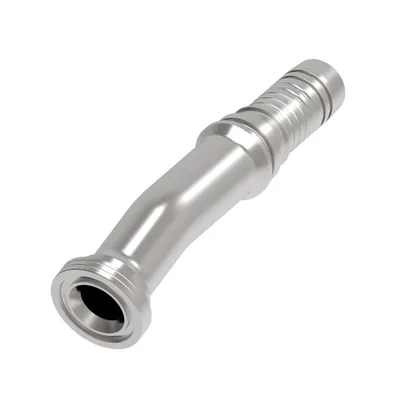

1F00751-2020-S

HOSE NIPPLE, 1A/20, C62/20, CS, 15D

Danfoss

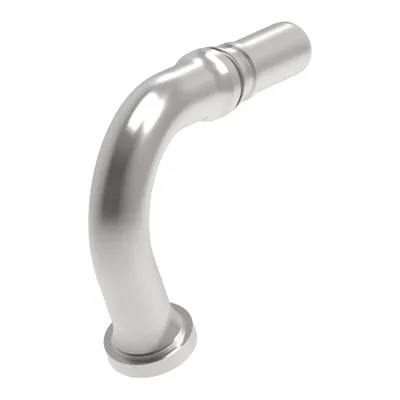

1F00658-2424-S

HOSE NIPPLE, 1A/24, C62/24, CS, 120D

Danfoss

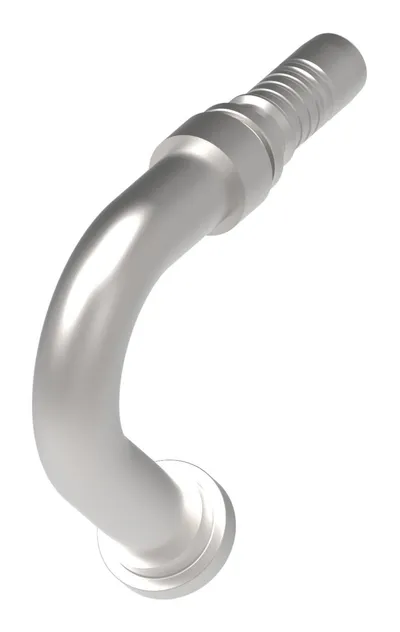

1F00571-1616-S

HOSE NIPPLE, 1A/16, C62/16, CS, 135D

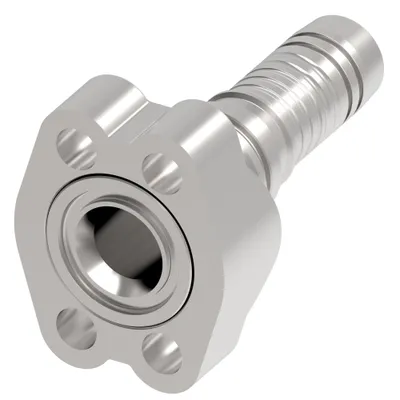

Danfoss

1F00445-2020-S

HOSE NIPPLE, 1A/20, C62/20, CS, STR

Danfoss

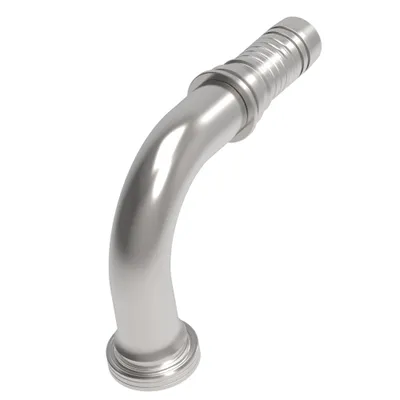

1F00433-2020-S

HOSE NIPPLE, 1A/20, C62/20, CS, 90D

Danfoss

1F00432-2016-S

HOSE NIPPLE, 1A/16, C62/20, CS, 135D

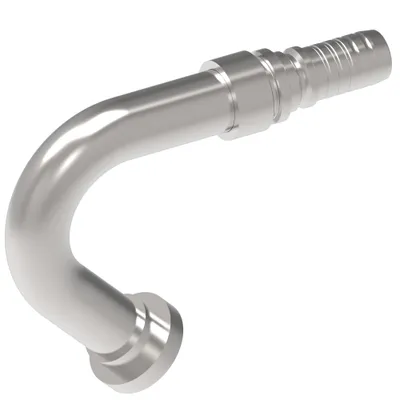

Danfoss

1F00432-1616-S

HOSE NIPPLE, 1A/16, C62/16, CS, 135D

Danfoss

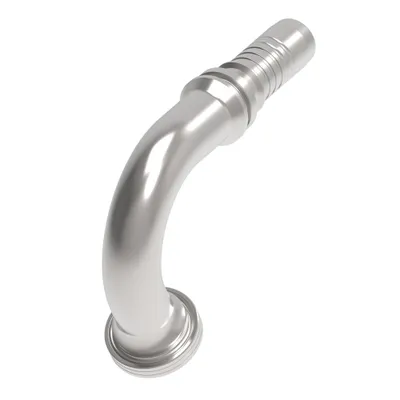

1F00430-1616-S

HOSE NIPPLE, 1A/16, C62/16, CS, 120D

Compare Spiral hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Hose cut off factor IN	Hose cut off factor MM	Product height in	Product height mm	Product length in
1F40117-2020-S	4.433	112.600	2.126	54.000	8.016
1F21455-3232-S	6.330	160.782	—	—	—
1F21454-2432-S	5.100	129.540	—	—	—
1F21347-1216-S	4.000	101.600	—	—	—
1F21182-1210-S	2.230	56.700	2.138	54.300	3.673
1F21182-0810-S	2.000	50.900	1.752	44.501	3.445
1F21181-1210-S	2.540	64.400	2.815	71.501	3.976
1F20716-1616-S	3.330	84.500	4.898	124.399	6.886
1F20543-1616-S	6.000	152.600	7.800	198.120	9.220
1F20542-2020-S	4.800	121.800	4.776	121.300	8.807
1F20541-2020-S	6.130	155.600	2.992	75.999	9.465
1F20540-2020-S	5.070	128.700	2.441	61.999	8.016
1F20481-2020-S	2.900	73.600	2.441	61.999	7.098
1F20343-2424-S	5.350	135.890	—	—	—
1F01271-1616-S	4.560	115.700	3.690	93.726	8.120
1F01010-1616-S	3.330	84.500	4.709	119.601	7.760
1F00751-2020-S	6.130	155.600	2.835	72.001	9.476
1F00658-2424-S	3.480	88.600	8.614	218.801	7.366
1F00571-1616-S	1.850	47.200	5.079	128.999	6.252
1F00445-2020-S	2.720	70.300	3.750	95.250	5.720
1F00433-2020-S	3.660	92.900	6.122	155.501	7.669
1F00432-2016-S	3.000	76.200	6.700	170.180	8.800
1F00432-1616-S	2.760	70.200	6.417	162.992	7.751
1F00430-1616-S	2.720	69.000	5.091	129.301	6.276

Common to all listed parts

Construction Style	Crimp
Thread sealant	No
