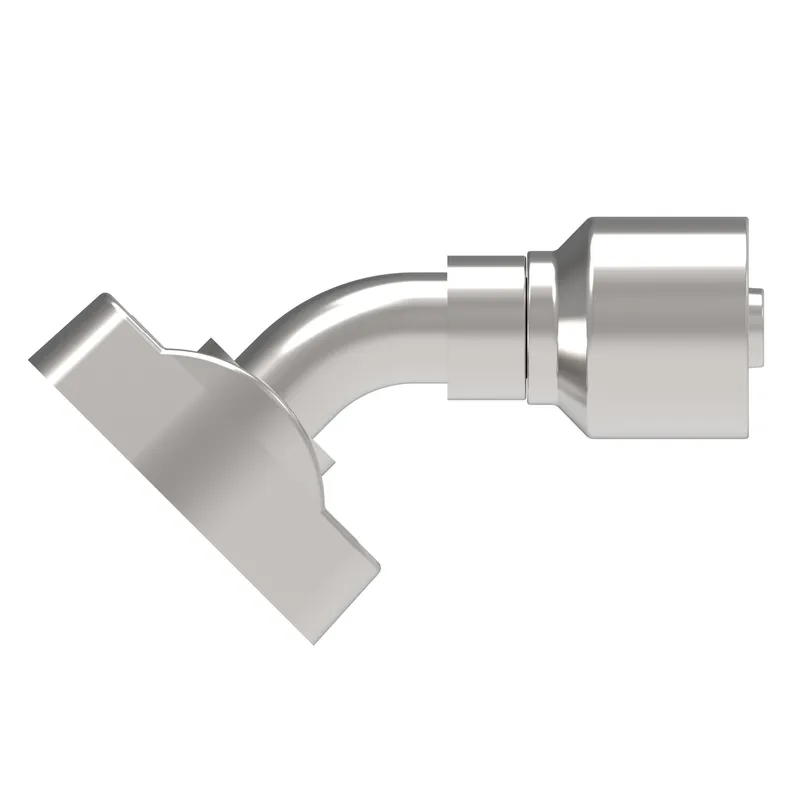

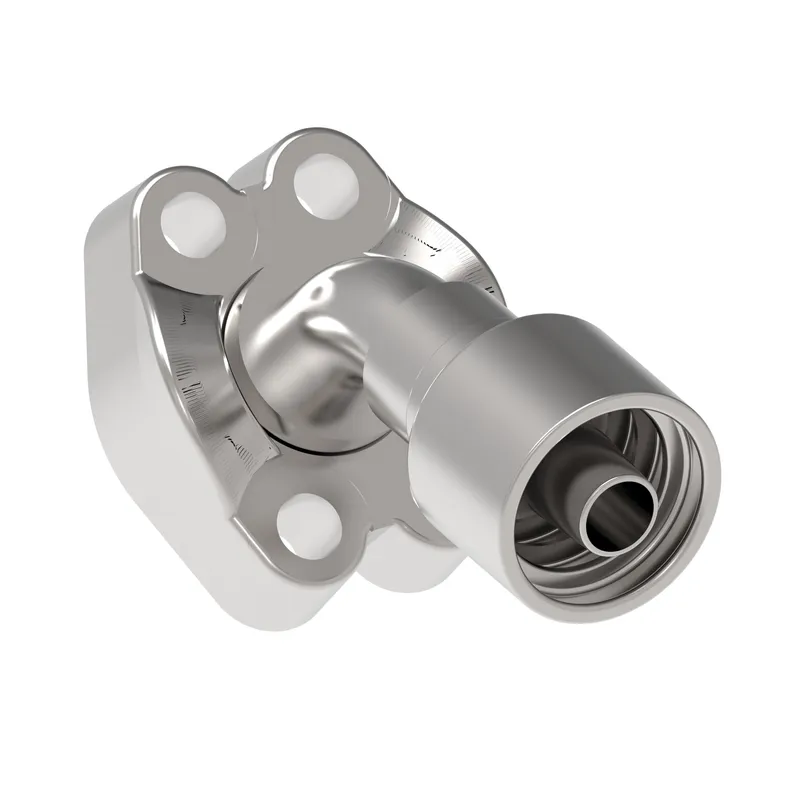

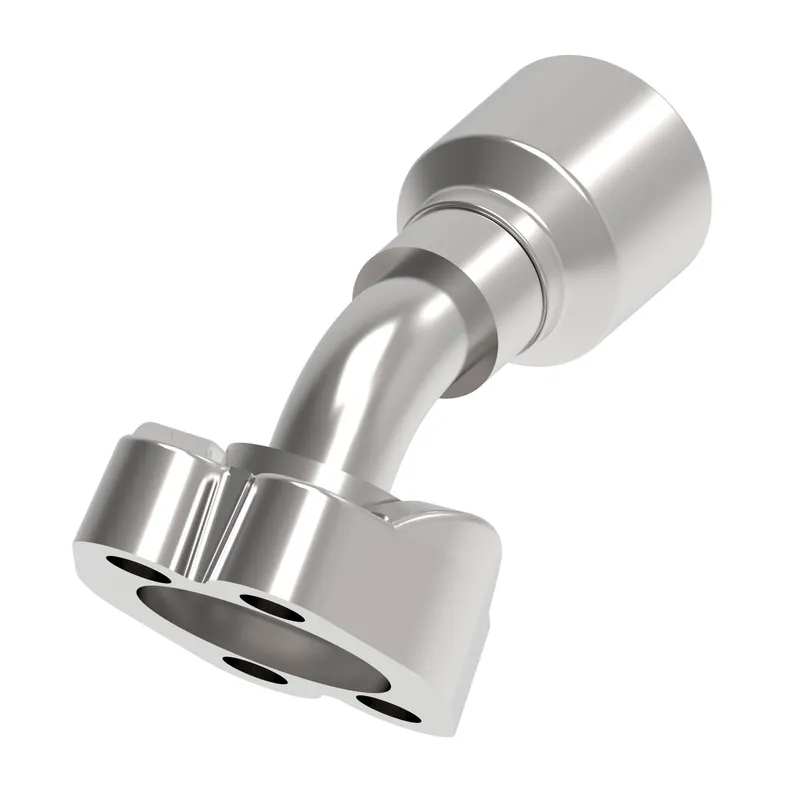

HOSE FTG, 1A/10, C62/12, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1F21181-1210-S be shipped?
1F21181-1210-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1F21181-1210-S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1F21181-1210-S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1F21181-1210-S, subject to availability and destination.
Danfoss HOSE FTG, 1A/10, C62/12, CS, 45D, manufacturer part number 1F21181-1210-S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.980 |
| A dimension MM | 101.000 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Crimp |
| Drop dimension IN | 1.010 |
| Drop dimension MM | 25.7 |
| End size 1 | -12 |
| End type 1 | Split flange code 62 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 2.540 |
| Hose cut off factor MM | 64.400 |
| Hose size | -10 |
| Inside diameter IN | 0.4800 |
| Inside diameter MM | 12.1000 |
| Product height in | 2.815 |
| Product height mm | 71.501 |
| Product length in | 3.976 |
| Product length mm | 101.001 |
| Product material | Carbon steel |
| Product width in | 2.362 |
| Product width mm | 60.000 mm |
| Series | 1A/Z Series |
| Thread sealant | No |
| Tube OD 1 IN | 0.780 |
| Tube OD 1 MM | 20.000 |
| Working pressure max BAR | 414.00 |
| Working pressure max PSI | 6000.00 |
