Complete Enclosures Parts
Compare Complete Enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | width | depth | ventilation cross section inlet can be used | ventilation cross section outlet can be used | Net Weight |
|---|---|---|---|---|---|
| 8MF1228-3BS4 | 1 200 mm | 800 mm | 0 cm² | 0 cm² | 242.72 kg |
| 8MF1224-3VR4 | 1 200 mm | 400 mm | 1 292 cm² | 479 cm² | 183.12 kg |
| 8MF1224-3BS5 | 1 200 mm | 400 mm | 0 cm² | 0 cm² | 205.22 kg |
| 8MF1220-3VR4 | 1 200 mm | 1 000 mm | 1 292 cm² | 1 916 cm² | 207.32 kg |
| 8MF1220-3BS5 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 262.22 kg |

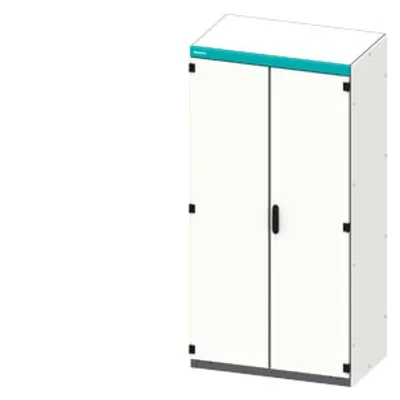

| 8MF1220-3BS4 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 262.12 kg |
| 8MF1220-3BR5 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 207.42 kg |
| 8MF1220-3BR4 | 1 200 mm | 1 000 mm | 0 cm² | 0 cm² | 207.32 kg |

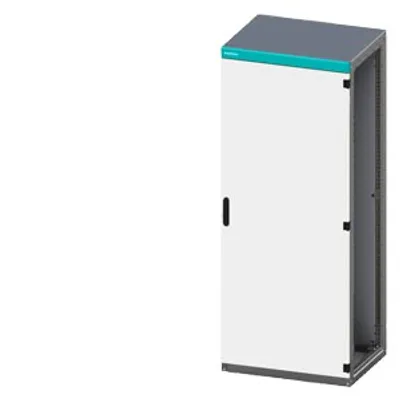

| 8MF1888-3BR4 | 800 mm | 800 mm | 0 cm² | 0 cm² | 125 kg |
| 8MF1886-3BR4 | 800 mm | 600 mm | 0 cm² | 0 cm² | 119 kg |
| 8MF1885-3VS4 | 800 mm | 500 mm | 986 cm² | 429 cm² | 127 kg |

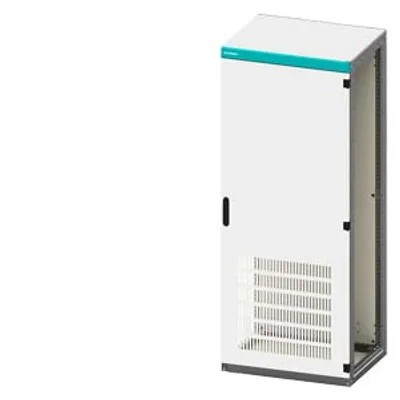

| 8MF1885-3VR4 | 800 mm | 500 mm | 986 cm² | 429 cm² | 116 kg |
| 8MF1885-3BS5 | 800 mm | 500 mm | 0 cm² | 0 cm² | 150 kg |
| 8MF1094-3VS4 | 900 mm | 400 mm | 816 cm² | 334 cm² | 157.56 kg |

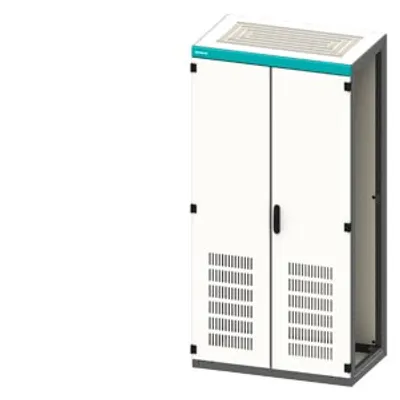

| 8MF1094-3VR4 | 900 mm | 400 mm | 816 cm² | 334 cm² | 137.56 kg |
| 8MF1064-3VS4 | 600 mm | 400 mm | 646 cm² | 190 cm² | 134.77 kg |
| 8MF1064-3VR4 | 600 mm | 400 mm | 646 cm² | 190 cm² | 100.77 kg |

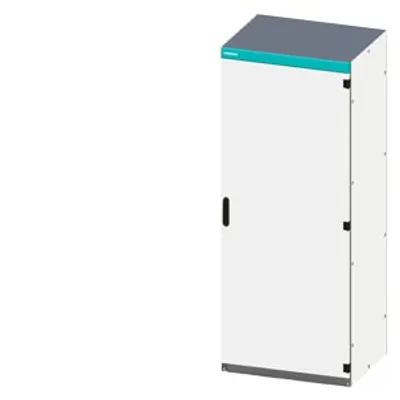

| 8MF1064-3BS5 | 600 mm | 400 mm | 0 cm² | 0 cm² | 120.87 kg |
| 8MF1064-3BS4 | 600 mm | 400 mm | 0 cm² | 0 cm² | 120.77 kg |
| 8MF1895-3BS5 | 900 mm | 500 mm | 0 cm² | 0 cm² | 140 kg |
| 8MF1895-3BS4 | 900 mm | 500 mm | 0 cm² | 0 cm² | 140 kg |
| 8MF1895-3BR5 | 900 mm | 500 mm | 0 cm² | 0 cm² | 129 kg |
| 8MF1895-3BR4 | 900 mm | 500 mm | 0 cm² | 0 cm² | 129 kg |
| 8MF1295-3BR5 | 900 mm | 500 mm | 0 cm² | 0 cm² | 150 kg |
Common to all listed parts
| product designation | Empty control cabinet enclosure |
| design of the product | according to IEC 62208 |
| design of the surface | powder-coated |
| design of the product EMC version | No |
| operating resource protection class | Safety class 1 |
| suitability for installation for metric dimensions | Yes |
| suitability for integration flush mounting | No |
| suitability for use for outside use | No |
