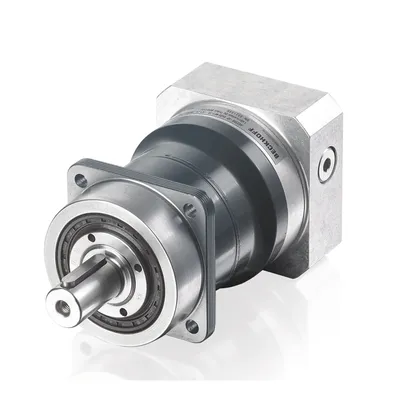

AG2300-+SP075S Parts
Compare AG2300-+SP075S
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type | Nominal output torque | Max. acceleration torque | Gear ratio | Max. torsional backlash standard/reduced |
|---|---|---|---|---|---|
| AG2300-+SP075S-MF2-35 | standard MF | 106 Nm | 132 Nm | 35 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-40 | standard MF | 101 Nm | 126 Nm | 40 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-50 | standard MF | 106 Nm | 132 Nm | 50 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-70 | standard MF | 90 Nm | 113 Nm | 70 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF1-8 | standard MF | 80 Nm | 114 Nm | 8 | ≤ 4/2 arcmin |
| AG2300-+SP075S-MF2-32 | standard MF | 101 Nm | 126 Nm | 32 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MF2-64 | standard MF | 84 Nm | 105 Nm | 64 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC1-8 | high-speed MC | 50 Nm | 70 Nm | 8 | ≤ 6/4 arcmin |
| AG2300-+SP075S-MC2-32 | high-speed MC | 72 Nm | 90 Nm | 32 | ≤ 8/6 arcmin |
| AG2300-+SP075S-MC2-64 | high-speed MC | 56 Nm | 70 Nm | 64 | ≤ 8/6 arcmin |
Common to all listed parts
| Design | straight |
| Variant | high-end |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
