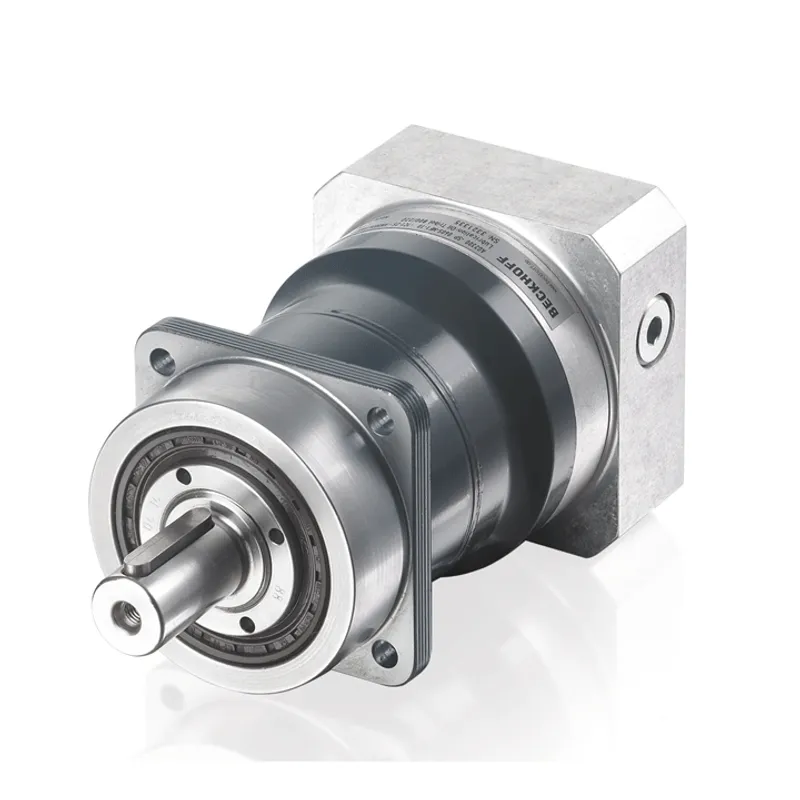

High-end gear series for rotary servomotors
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | AG2300-+SP075S |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can AG2300-+SP075S-MC2-64 be shipped?
AG2300-+SP075S-MC2-64 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up AG2300-+SP075S-MC2-64 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for AG2300-+SP075S-MC2-64 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for AG2300-+SP075S-MC2-64, subject to availability and destination.
The low-backlash, high-performance planetary gear units of the AG2300 series offer high torque, low torsional backlash and a very low noise level in various gear ratios. The high-end gear units for the rotary servomotors have a high power density and are
Specifications
Specifications
| Design | straight |
| Variant | high-end |
| Type | high-speed MC |
| Nominal output torque | 56 Nm |
| Max. acceleration torque | 70 Nm |
| Gear stages | 2 |
| Gear ratio | 64 |
| Max. torsional backlash standard/reduced | ≤ 8/6 arcmin |
| Ambient temperature (operation) | -15…+40°C |
| Protection rating | IP65 |
| Design form | flange-mounted according to B5 |
| Coating/surface | coated |
