Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | operational current — at AC-21 at 690 V rated value | width | depth | Net Weight |
|---|---|---|---|---|---|

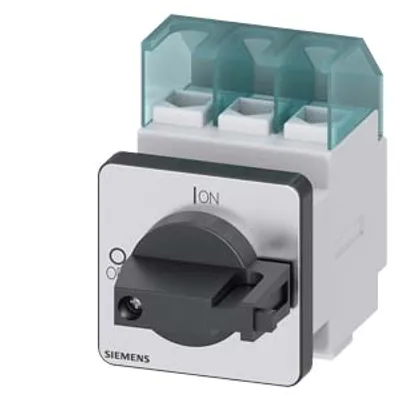

| 3LD2122-0TK11 | 0.6 W | 25 A | 49 mm | 86 mm | 175 g |

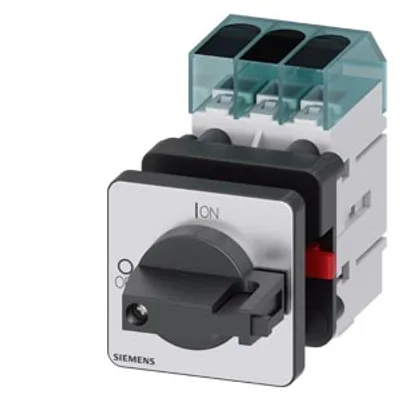

| 3LD3350-0TK11 | 0.62 W | 40 A | 36 mm | 114 mm | 201 g |

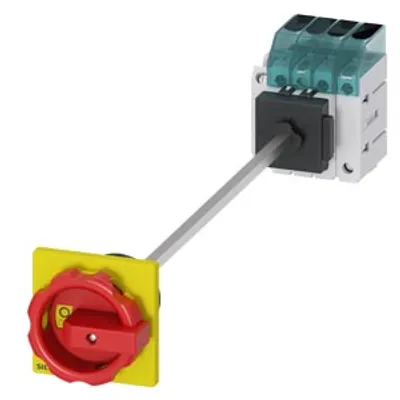

| 3LD3348-1TL53 | 0.62 W | 40 A | 60 mm | 380 mm | 405 g |
| 3LD3348-1TL51 | 0.62 W | 40 A | 60 mm | 380 mm | 403 g |

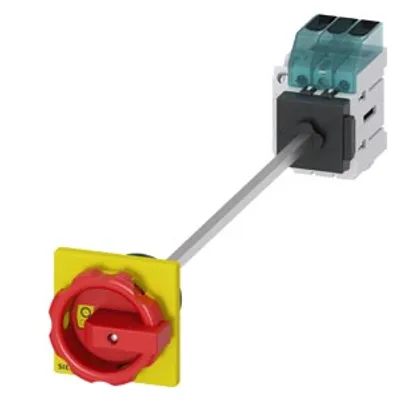

| 3LD3348-1TK53 | 0.62 W | 40 A | 47 mm | 380 mm | 367 g |

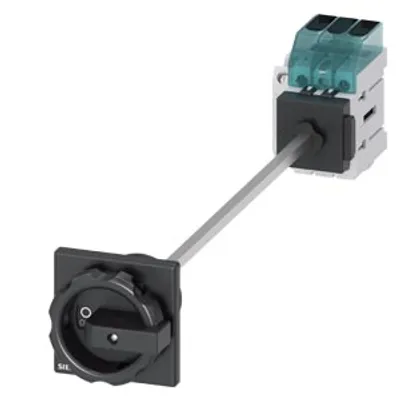

| 3LD3348-1TK51 | 0.62 W | 40 A | 47 mm | 380 mm | 367 g |
| 3LD3348-0TL53 | 0.62 W | 40 A | 49 mm | 380 mm | 384 g |

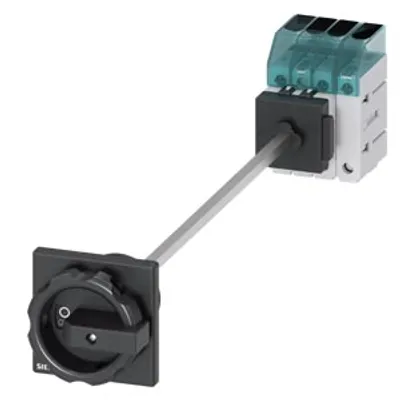

| 3LD3348-0TL51 | 0.62 W | 40 A | 49 mm | 380 mm | 386 g |

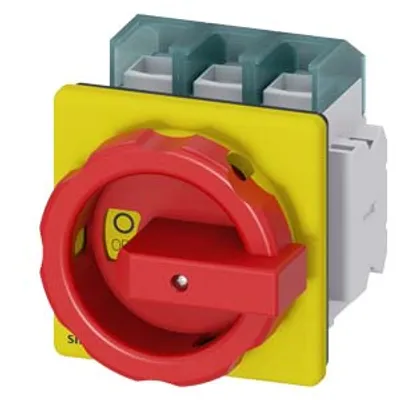

| 3LD2804-1TP53 | 4.33 W | 125 A | 90 mm | 112.5 mm | 514 g |

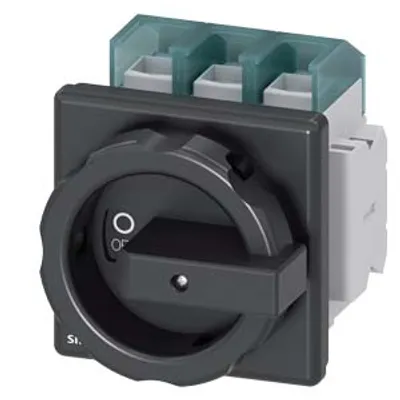

| 3LD2804-1TP51 | 4.33 W | 125 A | 90 mm | 112.5 mm | 510 g |

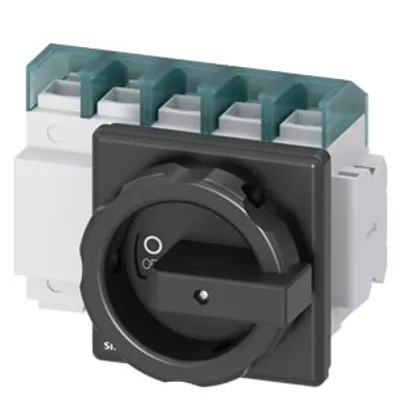

| 3LD2804-1TD51 | 4.33 W | 125 A | 90 mm | 112.5 mm | 673 g |

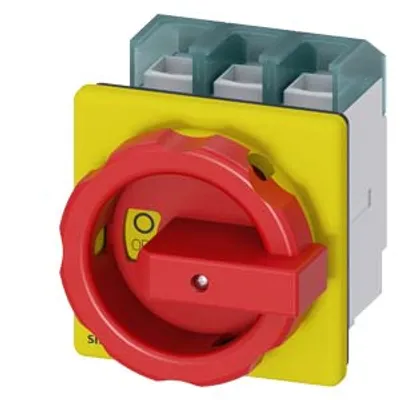

| 3LD2804-0TK53 | 4.33 W | 125 A | 90 mm | 112.5 mm | 494 g |

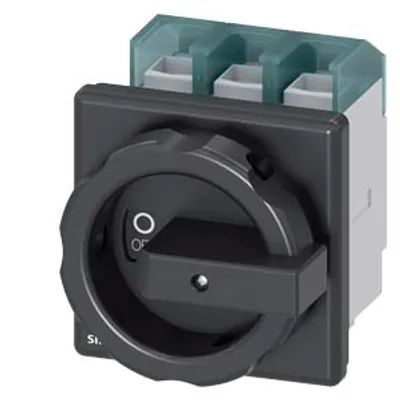

| 3LD2804-0TK51 | 4.33 W | 125 A | 90 mm | 112.5 mm | 488 g |

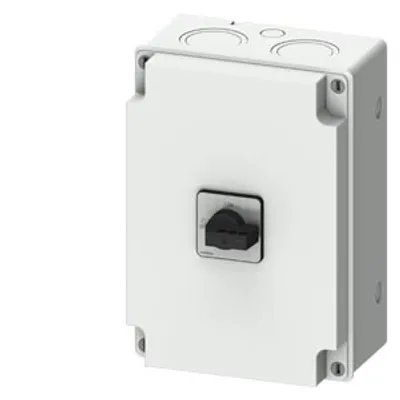

| 3LD2786-2GP21 | 2.77 W | 100 A | 212 mm | 181 mm | 2.353 kg |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
