Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | operational current — at AC-23 A at 400 V rated value | width | depth | Net Weight |
|---|---|---|---|---|---|

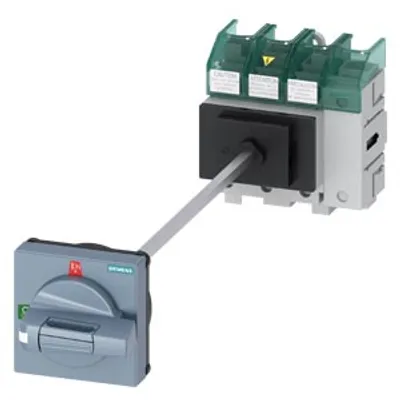

| 3LD5210-0TL11 | 0.7 W | 63 A | 96 mm | 408 mm | 788 g |

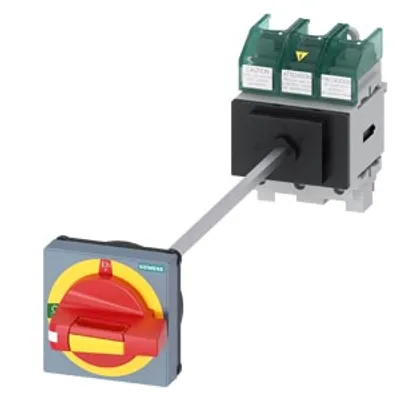

| 3LD5210-0TK13 | 0.7 W | 63 A | 75 mm | 408 mm | 692 g |

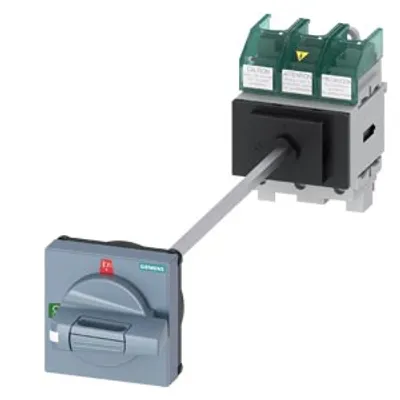

| 3LD5210-0TK11 | 0.7 W | 63 A | 75 mm | 408 mm | 692 g |

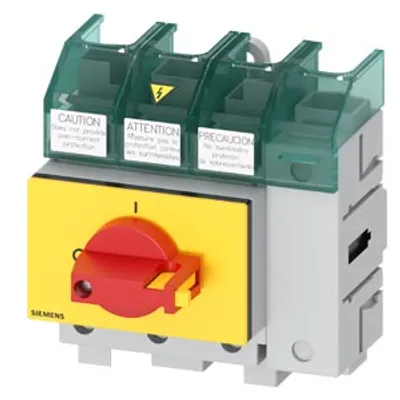

| 3LD5200-0TL13 | 0.7 W | 63 A | 93 mm | 95 mm | 519 g |

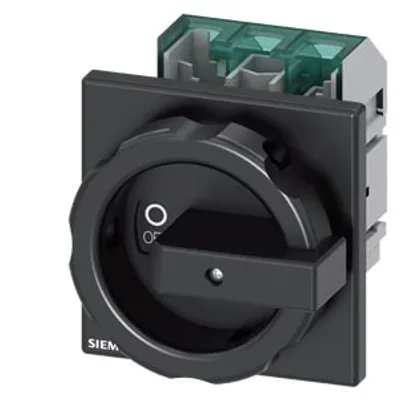

| 3LD5020-0TK11 | 0.55 W | 32 A | 60 mm | 59 mm | 421 g |

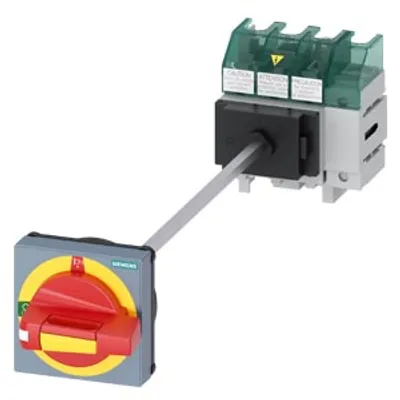

| 3LD5010-0TL13 | 0.55 W | 32 A | 80 mm | 77 mm | 684 g |

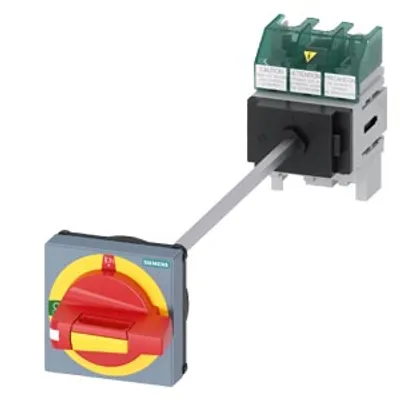

| 3LD5010-0TK13 | 0.55 W | 32 A | 60 mm | 77 mm | 618 g |
| 3LD3448-1TL51 | 1.54 W | 43 A | 60 mm | 380 mm | 385 g |

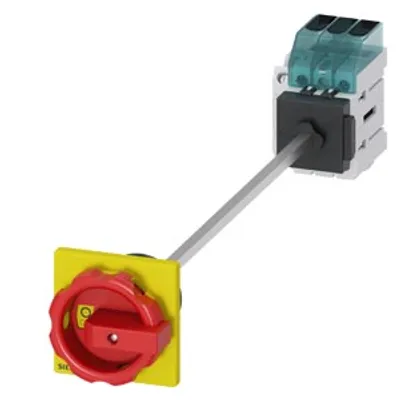

| 3LD3448-1TK53 | 1.54 W | 43 A | 47 mm | 380 mm | 367 g |
| 3LD3448-1TK51 | 1.54 W | 43 A | 47 mm | 380 mm | 366 g |

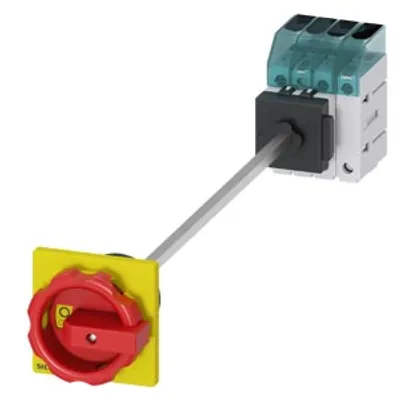

| 3LD3448-0TL53 | 1.54 W | 43 A | 49 mm | 380 mm | 385 g |

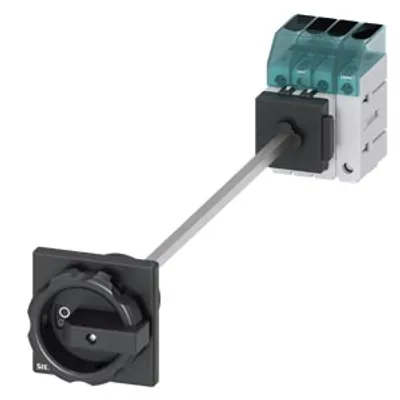

| 3LD3448-0TL51 | 1.54 W | 43 A | 49 mm | 380 mm | 386 g |

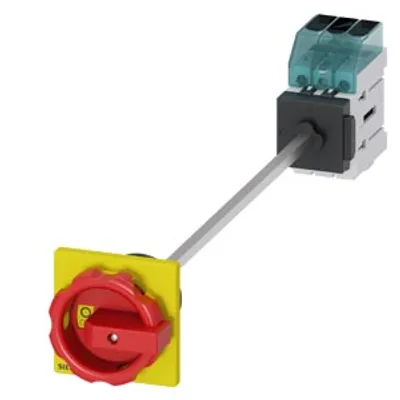

| 3LD3448-0TK53 | 1.54 W | 43 A | 36 mm | 380 mm | 348 g |

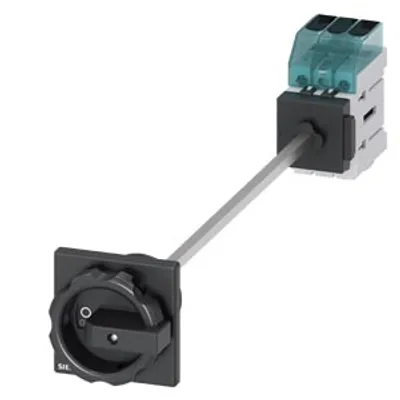

| 3LD3448-0TK51 | 1.54 W | 43 A | 36 mm | 380 mm | 349 g |

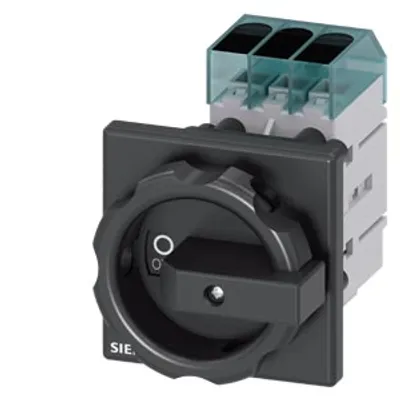

| 3LD3254-0TK51 | 1.32 W | 22 A | 36 mm | 114 mm | 235 g |

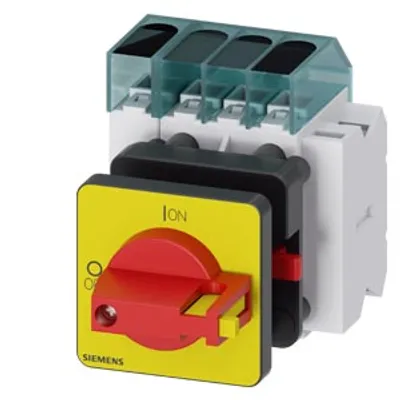

| 3LD3250-1TL13 | 1.32 W | 22 A | 60 mm | 114 mm | 260 g |

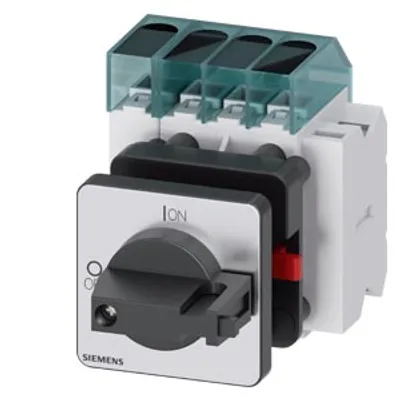

| 3LD3250-1TL11 | 1.32 W | 22 A | 60 mm | 114 mm | 261 g |

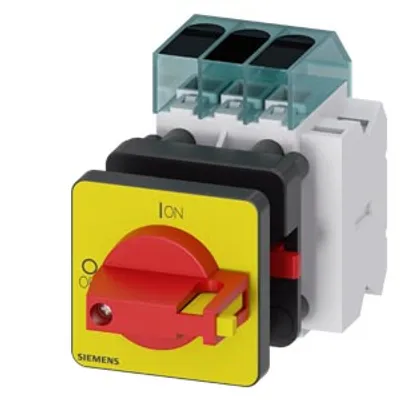

| 3LD3250-1TK13 | 1.32 W | 22 A | 47 mm | 114 mm | 219 g |

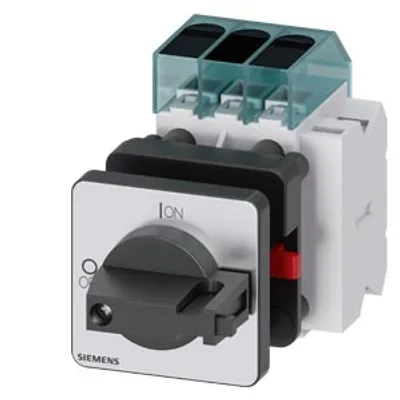

| 3LD3250-1TK11 | 1.32 W | 22 A | 47 mm | 114 mm | 226 g |
| 3LD3250-0TL13 | 1.32 W | 22 A | 49 mm | 114 mm | 244 g |

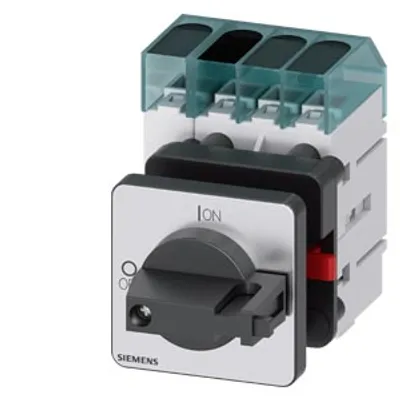

| 3LD3250-0TL11 | 1.32 W | 22 A | 49 mm | 114 mm | 245 g |
| 3LD3348-0TK53 | 0.62 W | 36 A | 36 mm | 380 mm | 348 g |
| 3LD3348-0TK51 | 0.62 W | 36 A | 36 mm | 380 mm | 349 g |

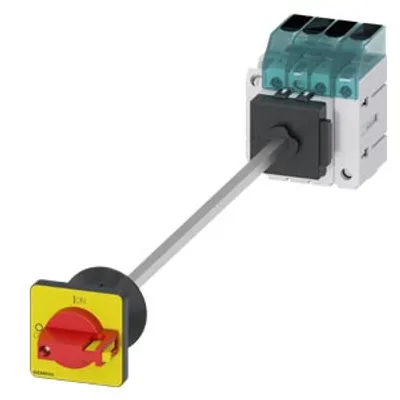

| 3LD3340-1TL13 | 0.62 W | 36 A | 60 mm | 380 mm | 383 g |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
