SIRIUS 3RT.3 contactors, 4-pole, up to 525 A Parts

Siemens

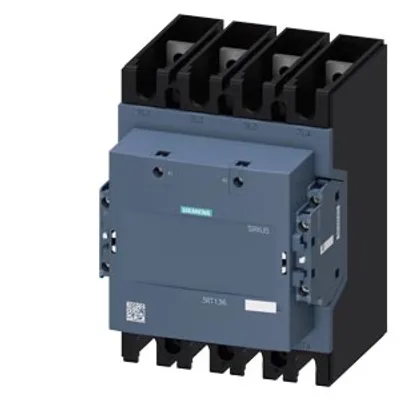

Contactor, AC-1, 275 A/400 V/40 °C, S10, 4-pole, 24-60 V AC

Siemens

Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole

Siemens

Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole

Siemens

Contactor, AC-1, 200 A/400 V/40 °C, S6, 4-pole

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 110 V DC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 24 V DC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 220 V AC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 230 V AC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 110 V DC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 24 V DC

Siemens

Contactor AC-1, 18 A, 400 V / 40 °C, 4-pole, 12 V DC

Compare SIRIUS 3RT.3 contactors, 4-pole, up to 525 A

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	power loss [W] for rated value of the current — without load current share typical	Net Weight	control supply voltage at DC rated value	closing power of magnet coil at DC	height
3RT1363-6AE36	2.5 W	4.04 kg	20 ... 60 V	205 W	196 mm
3RT1355-6AR36	4 W	1.872 kg	250 ... 500 V	205 W	150 mm
3RT1355-6AP36	3 W	1.893 kg	100 ... 250 V	135 W	150 mm

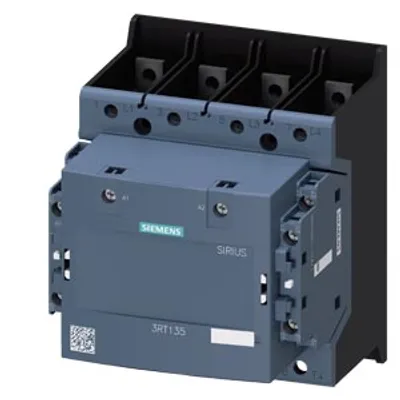

3RT1355-6AF36	2.5 W	1.891 kg	48 ... 130 V	130 W	150 mm
3RT2316-2BF40	4 W	308.66 g	110 V	4 W	70 mm
3RT2316-2BB40	4 W	292.8 g	24 V	4 W	70 mm
3RT2316-2AP60	1.1 W	0.235 kg	—	—	70 mm

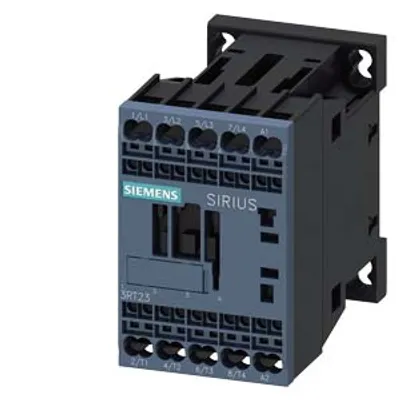

3RT2316-2AP00-1AA0	1.1 W	0.235 kg	—	—	70 mm

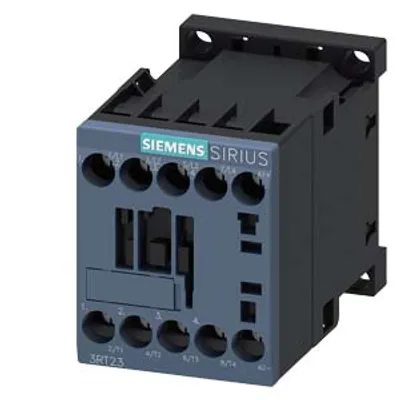

3RT2316-1BF40	4 W	0.278 kg	110 V	4 W	58 mm
3RT2316-1BB40	4 W	278.8 g	24 V	4 W	58 mm
3RT2316-1BA40	4 W	0.281 kg	12 V	4 W	58 mm

product designation	Contactor
product extension — function module for communication	No
product extension — auxiliary switch	Yes
type of calculation of power loss current-dependent	quadratic
insulation voltage — of the auxiliary and control circuit with degree of pollution 3 rated value	690 V
surge voltage resistance — of auxiliary circuit rated value	6 kV
reference code according to IEC 81346-2	Q
installation altitude at height above sea level maximum	2 000 m
