Manifold directional control valves Parts
Compare Manifold directional control valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Coil Rating | Model Code 1 | Product length in | Spool Type | Spring Arrangement |
|---|---|---|---|---|---|
| 870822 | 110 VDC | DG4V32BMUP760 | 6.140 | Spool 2 | Spring offset end to centre |
| 870816 | 110 VAC 50Hz/120 VAC 60Hz | DG4V32BLMUB660 | 5.750 | Spool 2 | Spring offset end to centre LH |
| 870804 | 24 VDC | DG4V30BHMUH760 | 6.140 | Spool 0 | Spring offset end to centre |

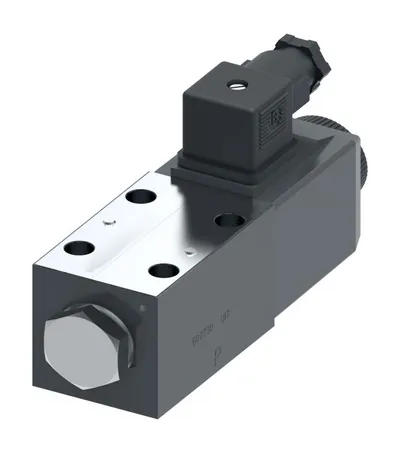

| 870722 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V32ALHMU1D660EN38 | 5.750 | Spool 2 | Spring offset end to end LH |
| 870682 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V32BMUD660 | 5.750 | Spool 2 | Spring offset end to centre |
| 870653 | 24 VDC | DG4V30BMFTWLH760 | 6.140 | Spool 0 | Spring offset end to centre |
| 870645 | 110 VAC 50Hz | DG4V30AVMUA660 | 5.750 | Spool 0 | Spring offset end to end |

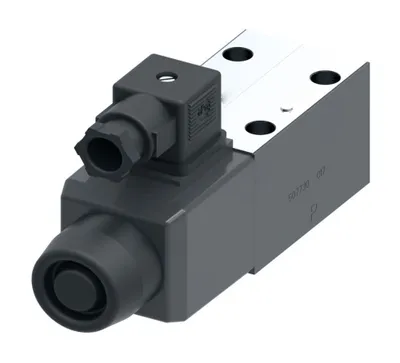

| 870618 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V32AHMU1D660EN38 | 5.750 | Spool 2 | Spring offset end to end |

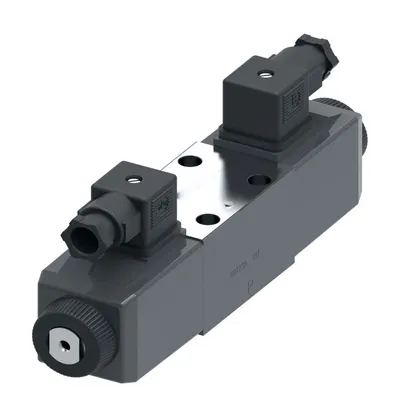

| 870617 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V36CHMU1D660EN38 | 7.870 | Spool 6 | Spring centred |
| 870616 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V32NHMU1D660EN38 | 5.750 | Spool 2 | No spring detented |
| 870561 | 24 VDC | DG4V30CMFWH760 | 8.660 | Spool 0 | Spring centred |
| 870509 | 24 VDC | DG4V32CMFWH760 | 8.660 | Spool 2 | Spring centred |
| 870507 | 110 VAC 50Hz/120 VAC 60Hz | DG4V333CMFWB660 | 7.870 | Spool 33 | Spring centred |

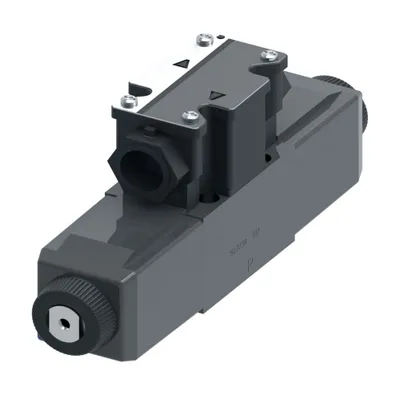

| 870505 | 110 VAC 50Hz/120 VAC 60Hz | DG4V36CHMFWB660 | 7.870 | Spool 6 | Spring centred |
| 870504 | 110 VAC 50Hz/120 VAC 60Hz | DG4V30AMFWB660 | 5.750 | Spool 0 | Spring offset end to end |
| 870482 | 12 VDC | DG4V30BLMUG760 | 6.140 | Spool 0 | Spring offset end to centre LH |

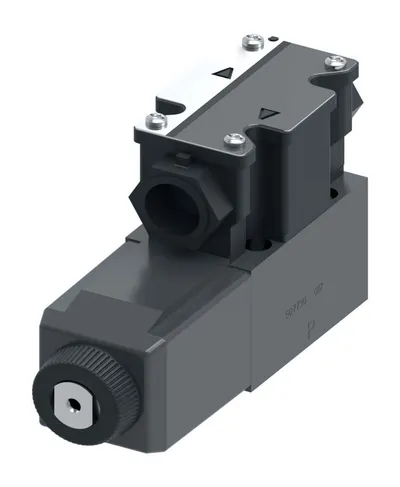

| 870464 | 24 VDC | DG4V32AMFWH760 | 6.140 | Spool 2 | Spring offset end to end |
| 870463 | 12 VDC | DG4V32AMU1G760 | 6.140 | Spool 2 | Spring offset end to end |
| 870457 | 220 VAC 50Hz | DG4V30BLMUC660 | 5.750 | Spool 0 | Spring offset end to centre LH |

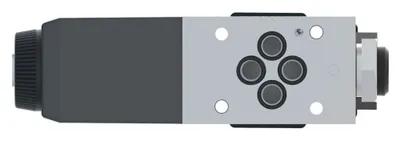

| 870444 | 110 VAC 50Hz/120 VAC 60Hz | DG4V32AMFWLB660EN75 | 5.750 | Spool 2 | Spring offset end to end |
| 870441 | 24 VDC | DG4V30AVMUH760 | 6.140 | Spool 0 | Spring offset end to end |
| 870407 | 220 VAC 50 Hz/240 VAC 60 Hz | DG4V30BMUD660 | 5.750 | Spool 0 | Spring offset end to centre |
| 870377 | 24 VDC | DG4V30ALHMUH760 | 6.140 | Spool 0 | Spring offset end to end LH |
| 870373 | 24 VDC | DG4V323AMUH760 | 6.140 | Spool 23 | Spring offset end to end |
Common to all listed parts
| Actuation Type | Solenoid operated |
| Design Series | 60 Series |
| Flow rate upto GPM | 21.0 |
| Flow rate upto LPM | 80.0 |
| Fluid Cleanliness | 19/17/14 micron |
| Fluid compatibility | Petroleum oils |
| Interface | ISO4401-03 |
| Performance | High performance |
