Manifold directional control valves Parts

Danfoss

12001561

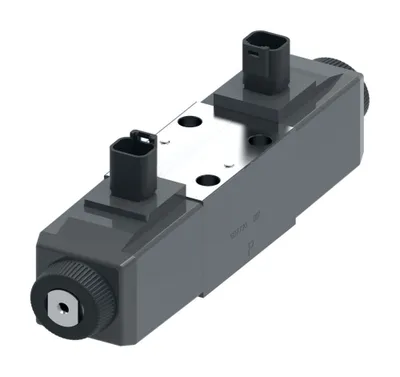

DG4V-3M-0B-M-KUP5-H7-66, DG4V3M0BMKUP5H766

Danfoss

12001551

DG4V-3M-2A-M-KUP5-H7-66, DG4V3M2AMKUP5H766

Danfoss

12001539

DG4V-3M-0C-M-KUP5-H7-66, DG4V3M0CMKUP5H766

Danfoss

12001323

DG4V-3M-2AL-M-KUP5-H7-66, DG4V3M2ALMKUP5H766

Danfoss

02-414877

DG4V-3-22A-M-S7-U-H7-60, DG4V322AMS7UH760

Danfoss

02-414858

DG4V 3 0C M KUP5D2 H7 60 EN138, DG4V30CMKUP5D2H760EN138

Danfoss

02-414770

DG4V 3 22A H M U D6 60, DG4V322AHMUD660

Danfoss

02-414729

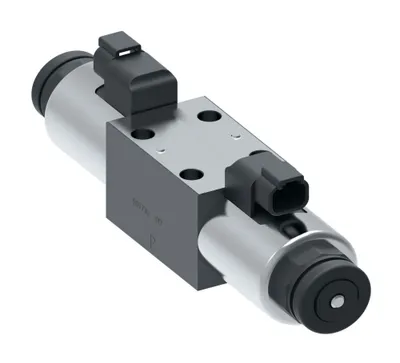

DG4V-3-6C-VM-KUP5-H7-60, DG4V36CVMKUP5H760

Danfoss

02-414701

Danfoss

02-414699

DG4V-3-8C-VM-KUP5-H7-61-EN181, DG4V38CVMKUP5H761EN181

Danfoss

02-414611

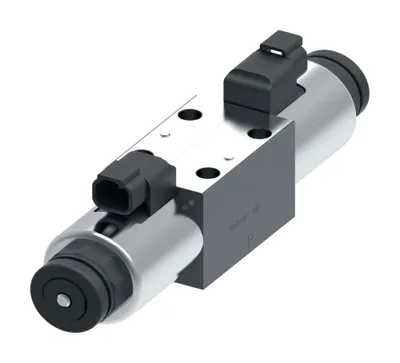

DG4V 3 6C M KUP5 G7 60, DG4V36CMKUP5G760

Danfoss

02-414609

DG4V 3 2C M KUP5 G7 60, DG4V32CMKUP5G760

Danfoss

02-414601-H

DG4V-3-6C-M-KUP5-H7-60-EN183, DG4V36CMKUP5H760EN183

Danfoss

02-414576

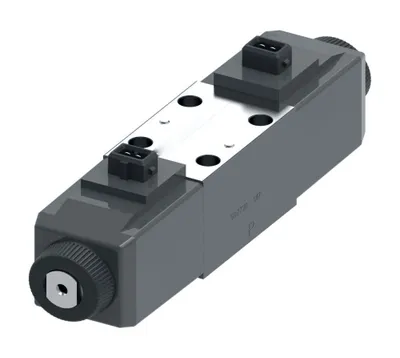

KDG4V-3-2C30N-H-M-KUP4-HA7-60, KDG4V32C30NHMKUP4HA760

Danfoss

02-414564-H

DG4V-3-2A-M-U-G7-60-EN183, DG4V32AMUG760EN183

Danfoss

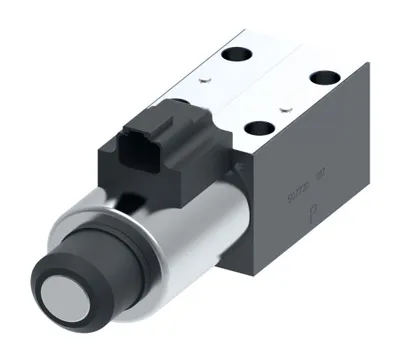

02-414490

DG4V-3-22A-M-KUP5-H7-60-EN181, DG4V322AMKUP5H760EN181

Danfoss

02-414486

DG4V-3-6C-M-KUP5-H7-60-EN181, DG4V36CMKUP5H760EN181

Danfoss

02-414485

DG4V-3-2A-M-KUP5-H7-60-EN181, DG4V32AMKUP5H760EN181

Danfoss

02-414441

DG4V-3-0B-VM-U-DJ7-60, DG4V30BVMUDJ760

Danfoss

02-414403

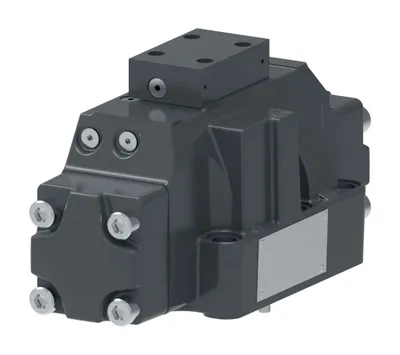

KDG3V-8-33C330N-E-20-EN39, KDG3V833C330NE20EN39

Danfoss

02-414379

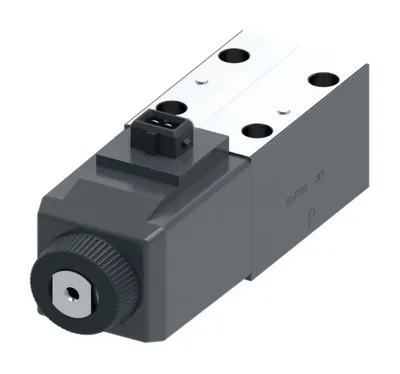

DG4V-3-42A-VM-KUP4D2-DS7-60-EN38, DG4V342AVMKUP4D2DS760EN38

Danfoss

02-414294

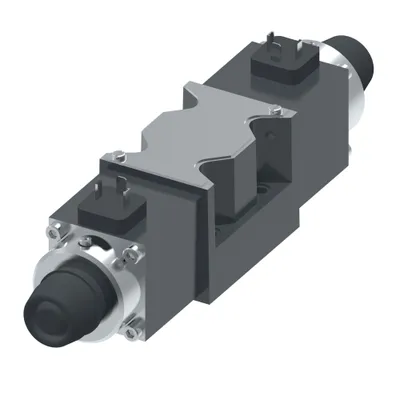

KDG4V-5-2C70N-H-M-U-H7-30, KDG4V52C70NHMUH730

Danfoss

02-414183

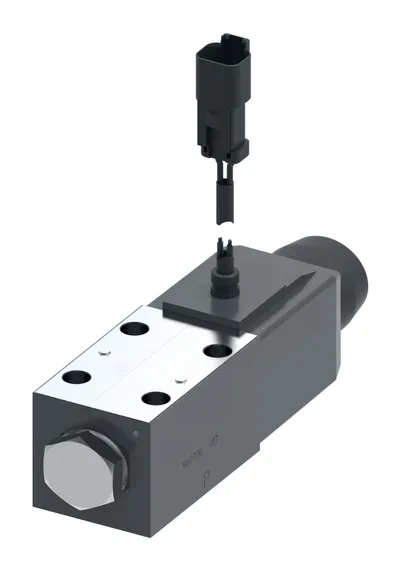

DG4V-3-40AL-VM-KUP6-G7-60, DG4V340ALVMKUP6G760

Danfoss

02-414125

DG4V-3-2AL-M-U-H7-60-B15, DG4V32ALMUH760B15

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product width in	Product width mm	Special features	Spool Type
12001561	DG4V3M0BMKUP5H766	1.880	47.752	480 hours corrosion protection	Spool 0
12001551	DG4V3M2AMKUP5H766	1.880	47.752	480 hours corrosion protection	Spool 2
12001539	DG4V3M0CMKUP5H766	1.880	47.752	480 hours corrosion protection	Spool 0
12001323	DG4V3M2ALMKUP5H766	1.880	47.752	480 hours corrosion protection	Spool 2
02-414877	DG4V322AMS7UH760	1.880	47.752	None	Spool 22
02-414858	DG4V30CMKUP5D2H760EN138	1.880	47.752	Coils rot 90 deg to T port	Spool 0
02-414770	DG4V322AHMUD660	1.880	47.752	None	Spool 22
02-414729	DG4V36CVMKUP5H760	2.000	50.8	None	Spool 6
02-414701	DG4V32A207MU60EN28	1.880	47.752	Special for Bucher	Spool 2
02-414699	DG4V38CVMKUP5H761EN181	1.880	47.752	Special coils for Sany	Spool 8
02-414611	DG4V36CMKUP5G760	1.840	46.736	None	Spool 6
02-414609	DG4V32CMKUP5G760	1.880	47.752	None	Spool 2
02-414601-H	DG4V36CMKUP5H760EN183	1.880	47.752	90 Shore Nitrile interface seals	Spool 6
02-414576	KDG4V32C30NHMKUP4HA760	1.900	48.26	None	ISO4401-10/NFPA D10/CETOP 10/NG32
02-414564-H	DG4V32AMUG760EN183	1.800	45.72	90 Shore Nitrile interface seals	Spool 2
02-414490	DG4V322AMKUP5H760EN181	1.880	47.752	Special coils for Sany	Spool 22
02-414486	DG4V36CMKUP5H760EN181	1.880	47.752	Special coils for Sany	Spool 6
02-414485	DG4V32AMKUP5H760EN181	1.880	47.752	Special coils for Sany	Spool 2
02-414441	DG4V30BVMUDJ760	1.880	47.752	None	Spool 0
02-414403	KDG3V833C330NE20EN39	4.520	114.808	With DGMA-3 crossover plate	Bleed A and B to T
02-414379	DG4V342AVMKUP4D2DS760EN38	1.840	46.736	Low leakage	Spool 42
02-414294	KDG4V52C70NHMUH730	2.760	70.104	None	ISO4401-10/NFPA D10/CETOP 10/NG32
02-414183	DG4V340ALVMKUP6G760	1.880	47.752	None	Spool 40
02-414125	DG4V32ALMUH760B15	1.880	47.752	None	Spool 2

Common to all listed parts

Stage	Single stage
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
