PanelSeT TBP Parts

Schneider Electric

Insulating mounting plate, thickness 3 mm, For boxes of H325WL275 mm

Schneider Electric

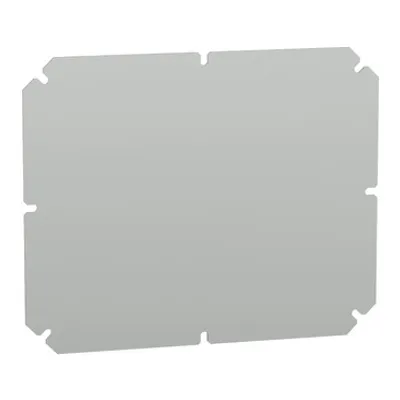

Insulating mounting plate, thickness 3 mm, For boxes of H275W225 mm

Schneider Electric

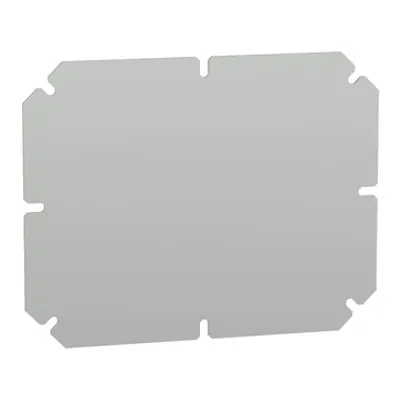

Insulating mounting plate, thickness 3 mm, For boxes of H225W175 mm

Schneider Electric

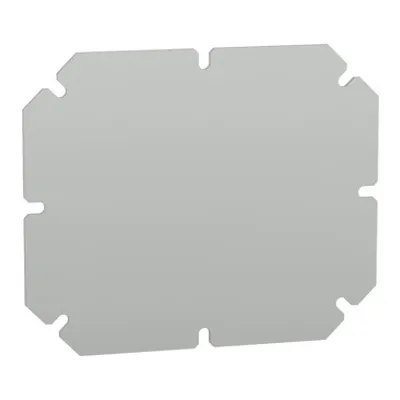

Insulating mounting plate, thickness 3 mm, For boxes of H175W150 mm

Schneider Electric

Plastic screws for PanelSeT TBS and TBP boxes with 60 mm cover height

Schneider Electric

Plastic screws for PanelSeT TBS and TBP boxes with 40 mm cover height

Schneider Electric

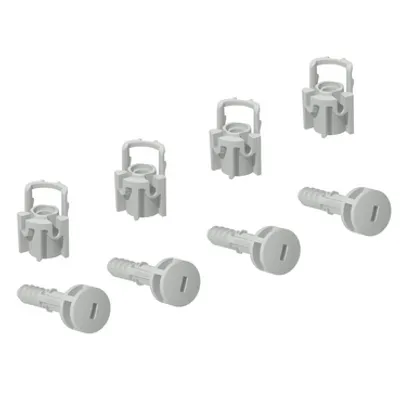

Plastic screws for PanelSeT TBS and TBP boxes with 20 mm cover height

Schneider Electric

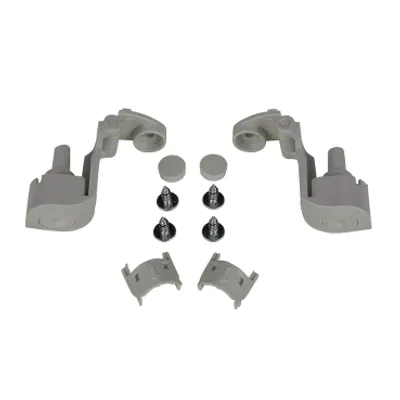

Hinges, for cover-depth 40 mm. In thermoplastic PC with screws.

Schneider Electric

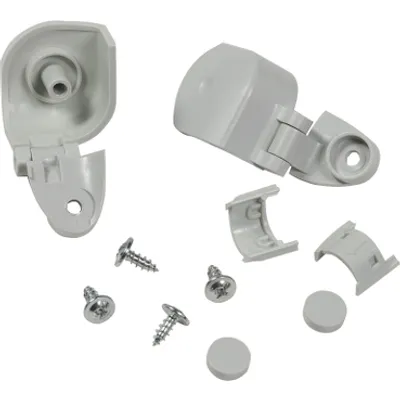

Hinges, for cover-depth 20 mm. In thermoplastic PC with screws.

Schneider Electric

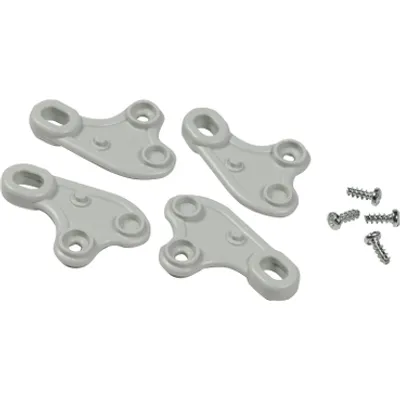

Fixing lugs in thermoplastic PC and screws. for boxes = H150xL150 mm.

Compare PanelSeT TBP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Accessory / separate part category	Product or component type	Device composition	Material	Net weight
NSYAMPA3429TB	Mounting accessory	Mounting plate	1 mounting plate	Polyester	0.34 kg
NSYAMPA2924TB	Mounting accessory	Mounting plate	1 mounting plate	Polyester	0.26 kg
NSYAMPA2419TB	Mounting accessory	Mounting plate	1 mounting plate	Polyester	0.12 kg
NSYAMPA1916TB	Mounting accessory	Mounting plate	1 mounting plate	Polyester	0.1 kg
NSYAEDS60TB	Locking accessory	Screw	4 screw	Plastic	0.04 kg
NSYAEDS40TB	Locking accessory	Screw	4 screw	Plastic	0.02 kg
NSYAEDS20TB	Locking accessory	Screw	4 screw	Plastic	0.022 kg
NSYAEDH40TB	—	Hinge	Fixing elements, 2 x hinge	—	0.035 kg
NSYAEDH20TB	—	Hinge	Fixing elements, 2 x hinge	—	0.02 kg
NSYAEFTB	Fixing accessory	Wall fixing support	4 lug, screw	Plastic	0.03 kg

Range

PanelSeT
