Schneider Electric

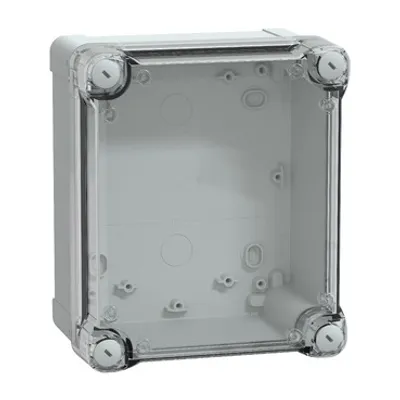

NSYTBP191610HTPC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 Transp.cover H40
PanelSeT TBP Parts
Schneider Electric

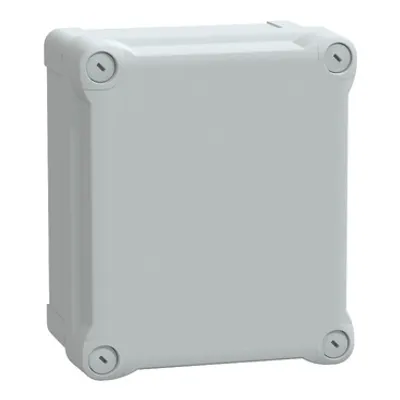

NSYTBP191610HPC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 opaque PC cover H40
Schneider Electric

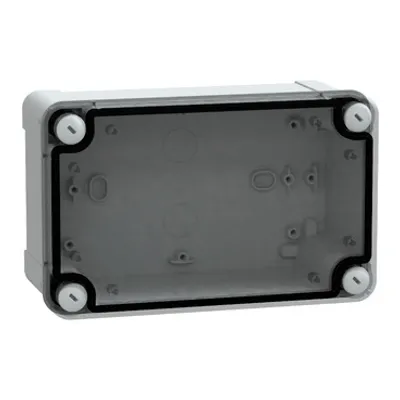

NSYTBP19128TPC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 Transp.cover H20
Schneider Electric

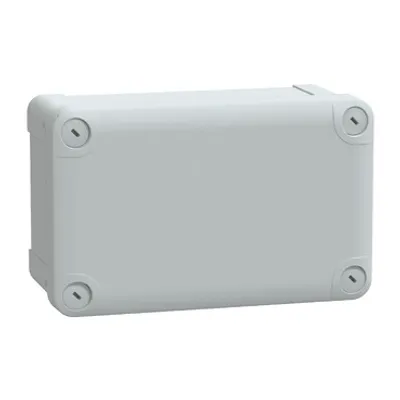

NSYTBP19128PC box IP66 IK08 RAL7035 Int.H175W105D80 Ext.H192W121D87 opaque PC cover H20
Schneider Electric

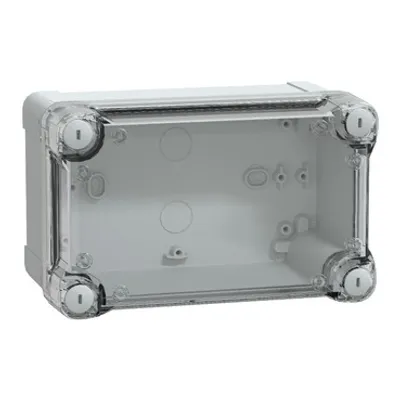

NSYTBP191210HTPC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 Transp.cover H40
Schneider Electric
NSYTBP191210HPC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
Schneider Electric
NSYTBP16128TPC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 Transp.cover H20
Schneider Electric
NSYTBP16128PC box IP66 IK08 RAL7035 Int.H150W105D80 Ext.H164W121D87 opaque PC cover H20
Schneider Electric
NSYTBP1397TPC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 Transp.cover H20
Schneider Electric
NSYTBP1397PC box IP66 IK08 RAL7035 Int.H125W80D65 Ext.H138W93D72 opaque PC cover H20
Schneider Electric

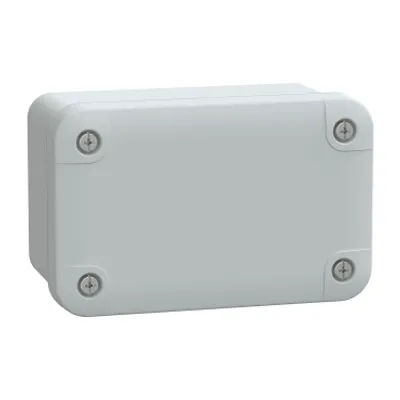

NSYTBP1176PC box IP66 IK08 RAL7035 Int.H105W65D55 Ext.H116W74D62 opaque PC cover H10
Schneider Electric
NSYTBP11116PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10
Schneider Electric

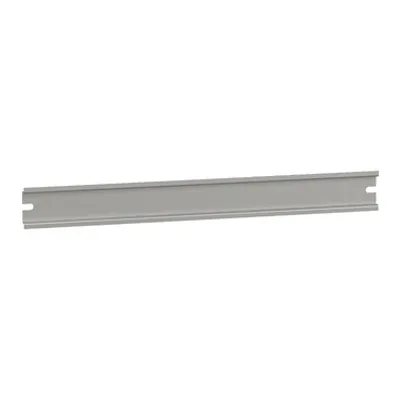

NSYAMRD34357TBSymmetrical DIN rail, H35xD7.5 mm Length: 316 mm, for boxes of 325 mm (Internal)
Schneider Electric
NSYAMRD29357TBSymmetrical DIN rail, H35xD7.5 mm Length: 264 mm, for boxes of 275 mm (Internal)
Schneider Electric
NSYAMRD24357TBSymmetrical DIN rail, H35xD7.5 mm Length: 214 mm, for boxes of 225 mm (Internal)
Schneider Electric

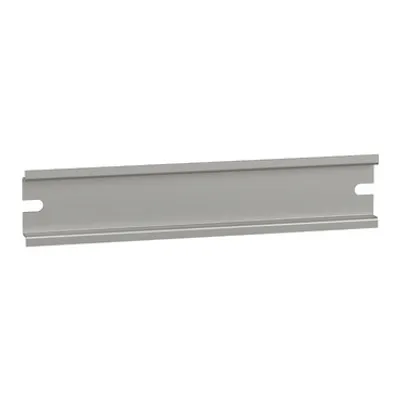

NSYAMRD19357TBSymmetrical DIN rail, H35xD7.5 mm Length: 168 mm, for boxes of 175 mm (Internal)
Schneider Electric

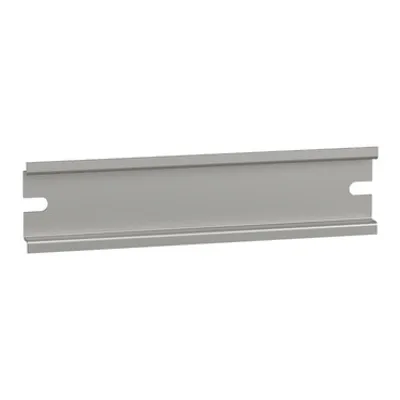

NSYAMRD16357TBSymmetrical DIN rail, H35xD7.5 mm Length: 140 mm, for boxes of 150 mm (Internal)
Schneider Electric

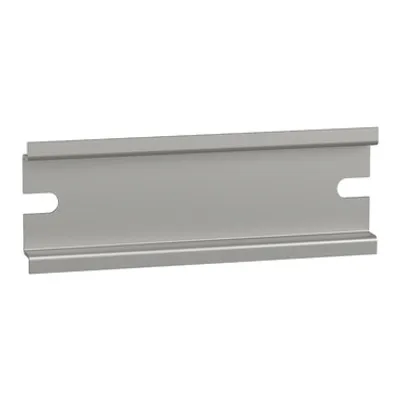

NSYAMRD11357TBSymmetrical DIN rail, H35xD7.5 mm Length: 97 mm, for boxes of 105 mm (Internal)
Schneider Electric
NSYAMPM3429TBMounting plate in galvanized steel, thickness 1.5 mm For boxes of H325W275 mm
Schneider Electric
NSYAMPM2924TBMounting plate in galvanized steel, thickness 1.5 mm For boxes of H275W225 mm
Schneider Electric
NSYAMPM2419TBMounting plate in galvanized steel, thickness 1.5 mm For boxes of H225W175 mm
Schneider Electric

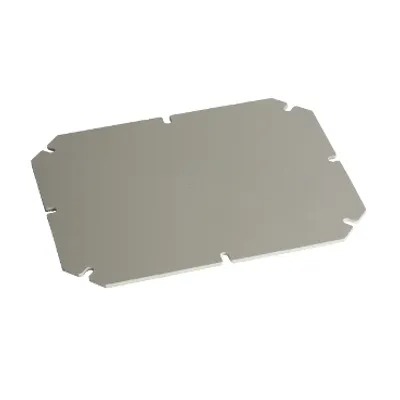

NSYAMPM1916TBMounting plate in galvanized steel, thickness 1.5 mm For boxes of H175W150 mm
Compare PanelSeT TBP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Height | Width | Device composition | Material | Net weight |
|---|---|---|---|---|---|
| NSYTBP191610HT | 192 mm | 164 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.6 kg |
| NSYTBP191610H | 192 mm | 164 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.62 kg |
| NSYTBP19128T | 192 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.38 kg |
| NSYTBP19128 | 192 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.335 kg |
| NSYTBP191210HT | 192 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.45 kg |
| NSYTBP191210H | 192 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.43 kg |
| NSYTBP16128T | 164 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.34 kg |
| NSYTBP16128 | 164 mm | 121 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.33 kg |
| NSYTBP1397T | 138 mm | 93 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.23 kg |
| NSYTBP1397 | 138 mm | 93 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.25 kg |
| NSYTBP1176 | 116 mm | 74 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.124 kg |
| NSYTBP11116 | 116 mm | 116 mm | 1 body, 1 cover, 4 cover screw | Polycarbonate | 0.171 kg |
| NSYTBPASBS | — | — | — | — | 0.018 kg |
| NSYAMFSTB | — | — | — | — | 0.16 kg |
| NSYAMRD34357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.11 kg |
| NSYAMRD29357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.092 kg |
| NSYAMRD24357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.072 kg |
| NSYAMRD19357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.056 kg |
| NSYAMRD16357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.048 kg |
| NSYAMRD11357TB | 35 mm | 7.5 mm | 1 rail | Steel | 0.032 kg |
| NSYAMPM3429TB | Nominal: 341 mm, Real: 265 mm | Real: 315 mm, Nominal: 291 mm | 1 mounting plate | Galvanised steel | 0.34 kg |
| NSYAMPM2924TB | Nominal: 291 mm, Real: 215 mm | Nominal: 241 mm, Real: 265 mm | 1 mounting plate | Galvanised steel | 0.26 kg |
| NSYAMPM2419TB | Nominal: 241 mm, Real: 1685 mm | Nominal: 194 mm, Real: 215 mm | 1 mounting plate | Galvanised steel | 0.12 kg |
| NSYAMPM1916TB | Nominal: 192 mm, Real: 140 mm | Nominal: 164 mm, Real: 1685 mm | 1 mounting plate | Galvanised steel | 0.1 kg |
Common to all listed parts
| Range | PanelSeT |
