Inductive transducer system Parts
Compare Inductive transducer system
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Lifecycle | Type designation | Hub | Analog output | Non-linearity max. |
|---|---|---|---|---|---|
| BIW000U | Active | BIW1-E310-M0450-P1-S115 | 460 mm | Analog, current 4…20 mA | ±90 µm |
| BIW002J | Active | BIW1-E310-M0400-P1-S115 | 410 mm | Analog, current 4…20 mA | ±80 µm |
| BIW002H | Active | BIW1-E310-M0375-P1-S115 | 385 mm | Analog, current 4…20 mA | ±75 µm |
| BIW002F | Active | BIW1-E310-M0360-P1-S115 | 370 mm | Analog, current 4…20 mA | ±72 µm |
| BIW002E | Active | BIW1-E310-M0300-P1-S115 | 310 mm | Analog, current 4…20 mA | ±60 µm |
| BIW002C | Active | BIW1-E310-M0260-P1-S115 | 270 mm | Analog, current 4…20 mA | ±52 µm |
| BIW002A | Active | BIW1-E310-M0250-P1-S115 | 260 mm | Analog, current 4…20 mA | ±50 µm |
| BIW000T | Active | BIW1-E310-M0225-P1-S115 | 235 mm | Analog, current 4…20 mA | ±45 µm |
| BIW0029 | Active | BIW1-E310-M0200-P1-S115 | 210 mm | Analog, current 4…20 mA | ±40 µm |
| BIW0028 | Active | BIW1-E310-M0175-P1-S115 | 185 mm | Analog, current 4…20 mA | ±35 µm |
| BIW000R | Active | BIW1-E310-M0150-P1-S115 | 160 mm | Analog, current 4…20 mA | ±30 µm |
| BIW0027 | Active | BIW1-E310-M0130-P1-S115 | 140 mm | Analog, current 4…20 mA | ±26 µm |
| BIW0026 | Active | BIW1-E310-M0100-P1-S115 | 110 mm | Analog, current 4…20 mA | ±20 µm |
| BIW0025 | Active | BIW1-E310-M0075-P1-S115 | 85 mm | Analog, current 4…20 mA | ±15 µm |
| BIW000M | Active | BIW1-A310-M0775-P1-S115 | 785 mm | Analog, voltage 0…10 V | ±155 µm |
| BIW000L | Active | BIW1-A310-M0750-P1-S115 | 760 mm | Analog, voltage 0…10 V | ±150 µm |
| BIW0031 | Discontinued by Balluff | BIW1-A310-M0725-P1-S115 | 735 mm | Analog, voltage 0…10 V | ±145 µm |
| BIW000K | Active | BIW1-A310-M0650-P1-S115 | 660 mm | Analog, voltage 0…10 V | ±130 µm |
| BIW000J | Active | BIW1-A310-M0600-P1-S115 | 610 mm | Analog, voltage 0…10 V | ±120 µm |
| BIW000H | Active | BIW1-A310-M0500-P1-S115 | 510 mm | Analog, voltage 0…10 V | ±100 µm |
| BIW000F | Active | BIW1-A310-M0450-P1-S115 | 460 mm | Analog, voltage 0…10 V | ±90 µm |
| BIW000E | Active | BIW1-A310-M0400-P1-S115 | 410 mm | Analog, voltage 0…10 V | ±80 µm |

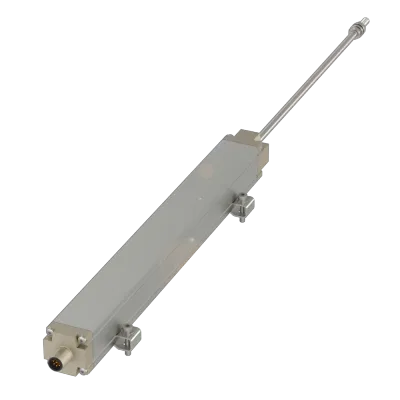

| BIW000C | Active | BIW1-A310-M0375-P1-S115 | 385 mm | Analog, voltage 0…10 V | ±75 µm |
| BIW000A | Active | BIW1-A310-M0360-P1-S115 | 370 mm | Analog, voltage 0…10 V | ±72 µm |
Common to all listed parts
| Product group | Inductive transducer system |
| Sampling rate typ. | 32 kHz |
| Repeat accuracy | 10 µm |
| Connection | Connector, M12x1, 8-pin |
| Operating voltage Ub | 18...30 VDC |
| Ambient temperature | -20...85 °C |
| IP rating | IP54 |
| Principle of operation | Inductive positioning system |
