Inductive transducer system Parts
Compare Inductive transducer system
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Hub | Analog output | Non-linearity max. | Housing material |
|---|---|---|---|---|---|
| BIW0024 | BIW1-C310-M0775-P1-S115 | 785 mm | Analog, current 0…20 mA | ±155 µm | Aluminum, Anodized |
| BIW0023 | BIW1-C310-M0750-P1-S115 | 760 mm | Analog, current 0…20 mA | ±150 µm | Aluminum, Anodized |
| BIW0022 | BIW1-C310-M0725-P1-S115 | 735 mm | Analog, current 0…20 mA | ±145 µm | Aluminum, Anodized |
| BIW0021 | BIW1-C310-M0650-P1-S115 | 660 mm | Analog, current 0…20 mA | ±130 µm | Aluminium, Anodized |
| BIW001Z | BIW1-C310-M0500-P1-S115 | 510 mm | Analog, current 0…20 mA | ±100 µm | Aluminum, Anodized |
| BIW000P | BIW1-C310-M0450-P1-S115 | 460 mm | Analog, current 0…20 mA | ±90 µm | Aluminum, Anodized |
| BIW001Y | BIW1-C310-M0400-P1-S115 | 410 mm | Analog, current 0…20 mA | ±80 µm | Aluminum, Anodized |
| BIW001W | BIW1-C310-M0375-P1-S115 | 385 mm | Analog, current 0…20 mA | ±75 µm | Aluminum, Anodized |
| BIW001U | BIW1-C310-M0360-P1-S115 | 370 mm | Analog, current 0…20 mA | ±72 µm | Aluminum, Anodized |
| BIW001T | BIW1-C310-M0300-P1-S115 | 310 mm | Analog, current 0…20 mA | ±60 µm | Aluminum, Anodized |
| BIW001R | BIW1-C310-M0260-P1-S115 | 270 mm | Analog, current 0…20 mA | ±52 µm | Aluminium, Anodized |

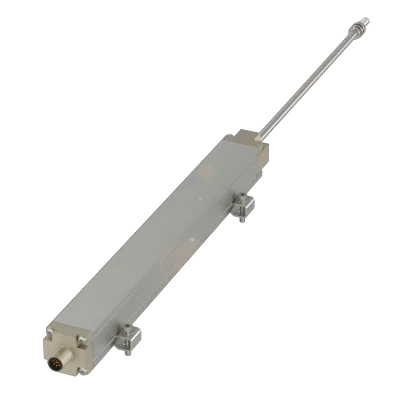

| BIW001P | BIW1-C310-M0250-P1-S115 | 260 mm | Analog, current 0…20 mA | ±50 µm | Aluminum, Anodized |
| BIW000N | BIW1-C310-M0225-P1-S115 | 235 mm | Analog, current 0…20 mA | ±45 µm | Aluminium, Anodized |
| BIW001N | BIW1-C310-M0200-P1-S115 | 210 mm | Analog, current 0…20 mA | ±40 µm | Aluminum, Anodized |
| BIW001M | BIW1-C310-M0175-P1-S115 | 185 mm | Analog, current 0…20 mA | ±35 µm | Aluminum, Anodized |
| BIW002T | BIW1-C310-M0150-P1-S115 | 160 mm | Analog, current 0…20 mA | ±30 µm | Aluminum, Anodized |
| BIW001L | BIW1-C310-M0130-P1-S115 | 140 mm | Analog, current 0…20 mA | ±26 µm | Aluminum, Anodized |
| BIW001K | BIW1-C310-M0100-P1-S115 | 110 mm | Analog, current 0…20 mA | ±20 µm | Aluminium, Anodized |
| BIW001J | BIW1-C310-M0075-P1-S115 | 85 mm | Analog, current 0…20 mA | ±15 µm | Aluminum, Anodized |

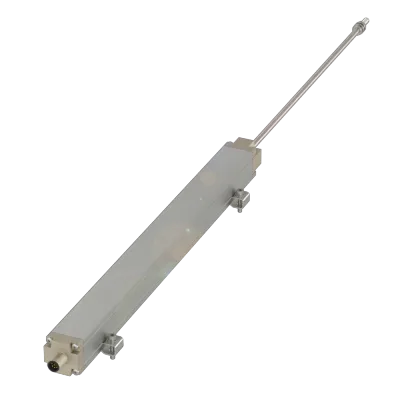

| BIW002R | BIW1-E310-M0775-P1-S115 | 785 mm | Analog, current 4…20 mA | ±155 µm | Aluminum, Anodized |
| BIW002P | BIW1-E310-M0750-P1-S115 | 760 mm | Analog, current 4…20 mA | ±150 µm | Aluminium, Anodized |
| BIW002M | BIW1-E310-M0650-P1-S115 | 660 mm | Analog, current 4…20 mA | ±130 µm | Aluminium, Anodized |
| BIW002L | BIW1-E310-M0600-P1-S115 | 610 mm | Analog, current 4…20 mA | ±120 µm | Aluminium, Anodized |
| BIW002K | BIW1-E310-M0500-P1-S115 | 510 mm | Analog, current 4…20 mA | ±100 µm | Aluminium, Anodized |
Common to all listed parts
| Lifecycle | Active |
| Product group | Inductive transducer system |
| Sampling rate typ. | 32 kHz |
| Repeat accuracy | 10 µm |
| Connection | Connector, M12x1, 8-pin |
| Operating voltage Ub | 18...30 VDC |
| Ambient temperature | -20...85 °C |
| IP rating | IP54 |
