Through-beam sensors Parts
Compare Through-beam sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Lifecycle | Type designation | Balluff alternatives | Approval/Conformity | Interface |
|---|---|---|---|---|---|
| BOS018K | Discontinued by Balluff | BOS Q08M-X-LS20-S49 | BOS026F | CE UKCA cULus WEEE | — |
| BOS018M | Discontinued by Balluff | BOS Q08M-X-LS20-02 | BOS026J | cULus CE EAC WEEE | — |

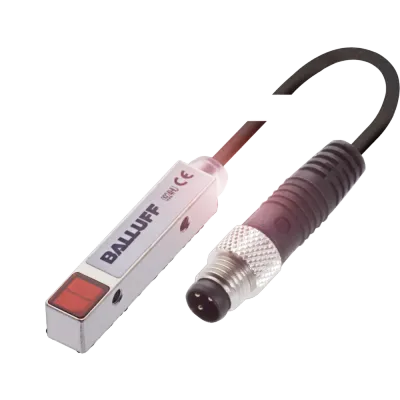

| BOS019M | Discontinued by Balluff | BOS Q08M-X-LS20-00,2-S49 | BOS026H, BOS028P | CE cULus EAC WEEE | — |
| BOS0199 | Discontinued by Balluff | BOS Q08M-PS-LE20-S49 | BOS0266 | CE UKCA cULus WEEE | PNP normally open (NO) |
| BOS0198 | Discontinued by Balluff | BOS Q08M-PS-LE20-02 | BOS0268, BOS028N | CE cULus EAC WEEE | PNP normally open (NO) |
| BOS0197 | Discontinued by Balluff | BOS Q08M-PS-LE20-00,2-S49 | BOS0267, BOS028R | CE cULus EAC WEEE | PNP normally open (NO) |
| BOS0196 | Discontinued by Balluff | BOS Q08M-PO-LE20-S49 | BOS0269 | CE cULus EAC WEEE | PNP normally closed (NC) |
| BOS0195 | Discontinued by Balluff | BOS Q08M-PO-LE20-02 | BOS0268 | CE cULus EAC WEEE | PNP normally closed (NC) |

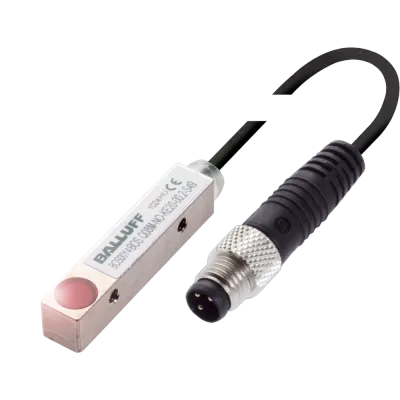

| BOS0194 | Discontinued by Balluff | BOS Q08M-PO-LE20-00,2-S49 | BOS026A | CE cULus EAC WEEE | PNP normally closed (NC) |
| BOS0193 | Discontinued by Balluff | BOS Q08M-NS-LE20-S49 | BOS026C | CE UKCA cULus WEEE | NPN normally open (NO) |
| BOS0192 | Discontinued by Balluff | BOS Q08M-NS-LE20-02 | BOS0268 | CE UKCA cULus WEEE | NPN normally open (NO) |
| BOS0191 | Discontinued by Balluff | BOS Q08M-NS-LE20-00,2-S49 | BOS026E | CE cULus EAC WEEE | NPN normally open (NO) |
| BOS0190 | Active | BOS Q08M-NO-LE20-S49 | — | CE cULus | NPN normally closed (NC) |
| BOS018Z | Active | BOS Q08M-NO-LE20-02 | — | CE cULus | NPN normally closed (NC) |

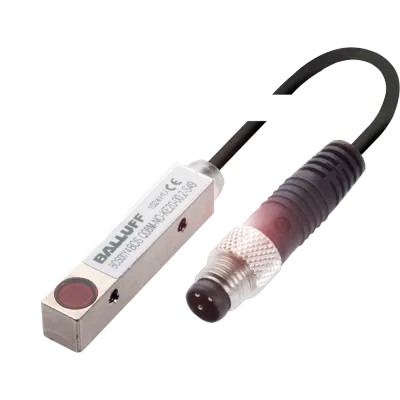

| BOS018Y | Active | BOS Q08M-NO-LE20-00,2-S49 | — | CE cULus EAC | NPN normally closed (NC) |

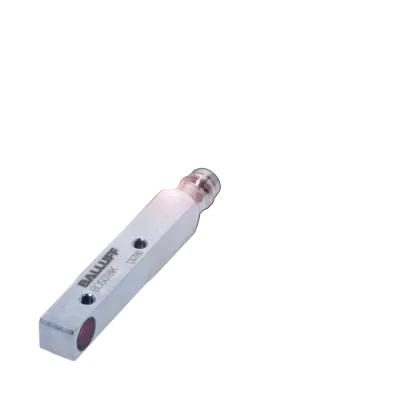

| BOS00YK | Discontinued by Balluff | BOS Q08M-X-KS20-S49 | BOS01YK | CE cULus EAC | — |

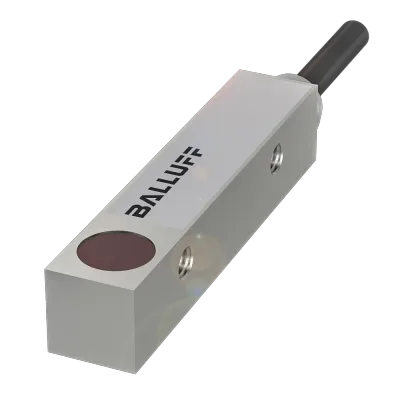

| BOS00YJ | Discontinued by Balluff | BOS Q08M-X-KS20-02 | BOS01YL | CE cULus EAC | — |
| BOS00YH | Discontinued by Balluff | BOS Q08M-X-KS20-00,2-S49 | BOS01YM | CE UKCA cULus WEEE | — |
| BOS00YF | Discontinued by Balluff | BOS Q08M-PS-KE20-S49 | BOS01Y4 | CE cULus EAC | PNP normally open (NO) |
| BOS00YE | Discontinued by Balluff | BOS Q08M-PS-KE20-02 | BOS01Y5 | cULus CE EAC | PNP normally open (NO) |
| BOS00YC | Discontinued by Balluff | BOS Q08M-PS-KE20-00,2-S49 | BOS01Y6 | cULus CE UKCA WEEE | PNP normally open (NO) |
| BOS00YA | Discontinued by Balluff | BOS Q08M-PO-KE20-S49 | BOS01Y7 | cULus CE EAC | PNP normally closed (NC) |
| BOS00Y9 | Discontinued by Balluff | BOS Q08M-PO-KE20-02 | BOS01Y8 | cULus CE EAC | PNP normally closed (NC) |
| BOS00Y8 | Discontinued by Balluff | BOS Q08M-PO-KE20-00,2-S49 | BOS01Y9 | cULus CE EAC | PNP normally closed (NC) |
Common to all listed parts
| Product group | Through-beam sensors |
| Series | Q08M |
| Principle of operation | Photoelectric sensor |
| Housing material | Zinc, Die casting, nickel-plated |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| ECLASS 14.0 | 27-27-09-01 |
| ETIM 9.0 | EC002716 |
