Schneider Electric
ATV61WD37N4A24Variable speed drive ATV61 - 37kW 50HP - 380...480V - EMC filter - IP54
Altivar 61 Parts
Schneider Electric
ATV61WD37N4Variable speed drive, Altivar 61, 37kW, 50hp, 380 to 480V, EMC filter, IP54
Schneider Electric
ATV61WD30N4CVariable speed drive ATV61 - 30kW 40HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD30N4Variable speed drive, Altivar 61, 30kW, 40hp, 380 to 480V, EMC filter, IP54
Schneider Electric

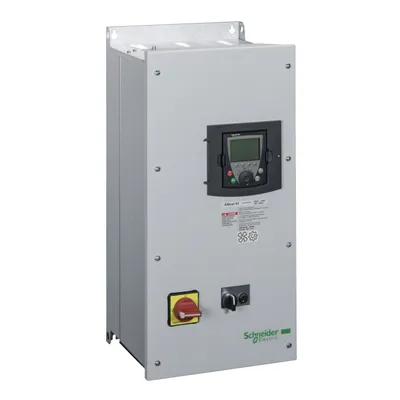

ATV61WD22N4CVariable speed drive ATV61 - 22kW 30HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD22N4A24Variable speed drive ATV61 - 22kW 30HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD22N4Variable speed drive ATV61 - 22kW 30HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD18N4CVariable speed drive ATV61 - 18.5kW 25HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD18N4A24Variable speed drive ATV61 - 1.8kW 25HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD18N4Variable speed drive ATV61 - 18.5kW 25HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD15N4A24Variable speed drive ATV61 - 15kW 20HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD15N4CVariable speed drive ATV61 - 15kW 20HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD15N4Variable speed drive, Altivar 61, 15kW, 20hp, 380 to 480V, EMC filter, IP54
Schneider Electric
ATV61WD11N4CVariable speed drive ATV61 - 11kW 15HP - 380...480V - EMC filter - IP54
Schneider Electric
ATV61WD11N4Variable speed drive, Altivar 61, 11kW, 15hp, 380 to 480V, EMC filter, IP54
Compare Altivar 61
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor power kW | Motor power hp | Maximum transient current | Net weight | Product certifications |
|---|---|---|---|---|---|
| ATV61WD37N4A24 | 37 kW, 3 phases at 380...480 V | 50 hp, 3 phases at 380...480 V | 78.6 A for 60 s, 3 phases | 64 kg | NOM 117; UL; CSA; C-Tick; GOST; DNV |
| ATV61WD37N4 | 37 kW, 3 phases at 380...480 V | 50 hp, 3 phases at 380...480 V | 78.6 A for 60 s, 3 phases | 64 kg | UL; NOM 117; C-Tick; GOST; DNV; CSA |
| ATV61WD30N4ZH28 | 30 kW, 3 phases at 380...480 V | 40 hp, 3 phases at 380...480 V | 64.3 A for 60 s, 3 phases | 51 kg | CSA; GOST; DNV; C-Tick; NOM 117; UL |
| ATV61WD30N4CZH28 | 30 kW, 3 phases at 380...480 V | 40 hp, 3 phases at 380...480 V | 64.3 A for 60 s, 3 phases | 68 kg | GOST; CSA; UL; C-Tick; DNV; NOM 117 |
| ATV61WD30N4C | 30 kW, 3 phases at 380...480 V | 40 hp, 3 phases at 380...480 V | 64.3 A for 60 s, 3 phases | 68 kg | C-Tick; GOST; UL; CSA; NOM 117; DNV |
| ATV61WD22N4ZH28 | 22 kW, 3 phases at 380...480 V | 30 hp, 3 phases at 380...480 V | 47.8 A for 60 s, 3 phases | 36 kg | NOM 117; CSA; GOST; UL; DNV; C-Tick |
| ATV61WD30N4 | 30 kW, 3 phases at 380...480 V | 40 hp, 3 phases at 380...480 V | 64.3 A for 60 s, 3 phases | 51 kg | DNV; C-Tick; GOST; NOM 117; UL; CSA |
| ATV61WD22N4CZH28 | 22 kW, 3 phases at 380...480 V | 30 hp, 3 phases at 380...480 V | 47.8 A for 60 s, 3 phases | 50 kg | UL; NOM 117; GOST; CSA; C-Tick; DNV |
| ATV61WD22N4C | 22 kW, 3 phases at 380...480 V | 30 hp, 3 phases at 380...480 V | 47.8 A for 60 s, 3 phases | 50 kg | NOM 117; GOST; DNV; UL; CSA; C-Tick |
| ATV61WD22N4A24 | 22 kW, 3 phases at 380...480 V | 30 hp, 3 phases at 380...480 V | 47.8 A for 60 s, 3 phases | 36 kg | GOST; CSA; NOM 117; UL; DNV; C-Tick |
| ATV61WD22N4 | 22 kW, 3 phases at 380...480 V | 30 hp, 3 phases at 380...480 V | 47.8 A for 60 s, 3 phases | 36 kg | UL; DNV; CSA; C-Tick; NOM 117; GOST |
| ATV61WD18N4CZH28 | 18.5 kW, 3 phases at 380...480 V | 25 hp, 3 phases at 380...480 V | 40.7 A for 60 s, 3 phases | 51 kg | UL; DNV; GOST; C-Tick; CSA; NOM 117 |
| ATV61WD18N4C | 18.5 kW, 3 phases at 380...480 V | 25 hp, 3 phases at 380...480 V | 40.7 A for 60 s, 3 phases | 51 kg | C-Tick; UL; GOST; NOM 117; DNV; CSA |
| ATV61WD18N4A24 | 18.5 kW, 3 phases at 380...480 V | 25 hp, 3 phases at 380...480 V | 40.7 A for 60 s, 3 phases | 36 kg | C-Tick; NOM 117; DNV; GOST; CSA; UL |
| ATV61WD18N4 | 18.5 kW, 3 phases at 380...480 V | 25 hp, 3 phases at 380...480 V | 40.7 A for 60 s, 3 phases | 36 kg | UL; C-Tick; DNV; NOM 117; CSA; GOST |
| ATV61WD15N4ZH28 | 15 kW, 3 phases at 380...480 V | 20 hp, 3 phases at 380...480 V | 33.5 A for 60 s, 3 phases | 28 kg | GOST; DNV; C-Tick; UL; CSA; NOM 117 |
| ATV61WD15N4CZH28 | 15 kW, 3 phases at 380...480 V | 20 hp, 3 phases at 380...480 V | 33.5 A for 60 s, 3 phases | 40 kg | GOST; DNV; C-Tick; NOM 117; UL; CSA |
| ATV61WD15N4A24 | 15 kW, 3 phases at 380...480 V | 20 hp, 3 phases at 380...480 V | 33.5 A for 60 s, 3 phases | 28 kg | GOST; CSA; UL; DNV; NOM 117; C-Tick |
| ATV61WD15N4C | 15 kW, 3 phases at 380...480 V | 20 hp, 3 phases at 380...480 V | 33.5 A for 60 s, 3 phases | 40 kg | CSA; DNV; C-Tick; NOM 117; UL; GOST |
| ATV61WD15N4 | 15 kW, 3 phases at 380...480 V | 20 hp, 3 phases at 380...480 V | 33.5 A for 60 s, 3 phases | 28 kg | GOST; NOM 117; UL; DNV; CSA; C-Tick |
| ATV61WD11N4CZH28 | 11 kW, 3 phases at 380...480 V | 15 hp, 3 phases at 380...480 V | 24.7 A for 60 s, 3 phases | 32 kg | GOST; C-Tick; CSA; DNV; UL; NOM 117 |
| ATV61WD11N4ZH28 | 11 kW, 3 phases at 380...480 V | 15 hp, 3 phases at 380...480 V | 24.7 A for 60 s, 3 phases | 22 kg | DNV; GOST; UL; C-Tick; NOM 117; CSA |
| ATV61WD11N4C | 11 kW, 3 phases at 380...480 V | 15 hp, 3 phases at 380...480 V | 24.7 A for 60 s, 3 phases | 32 kg | C-Tick; UL; GOST; NOM 117; CSA; DNV |
| ATV61WD11N4 | 11 kW, 3 phases at 380...480 V | 15 hp, 3 phases at 380...480 V | 24.7 A for 60 s, 3 phases | 22 kg | C-Tick; NOM 117; GOST; CSA; UL; DNV |
Common to all listed parts
| Range of product | Altivar 61 |
| Product or component type | Variable speed drive |
| Product specific application | Pumping and ventilation machine |
| Component name | ATV61 |
| power supply voltage | 380...480 V - 15...10 % |
| supply number of phases | 3 phases |
| Assembly style | Enclosed |
| maximum prospective line Isc | 22 kA for 3 phases |
