Altivar 61 Parts

Schneider Electric

ATV61WU15N4C

Variable speed drive ATV61 - 1.5kW 2HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WU15N4

Variable speed drive ATV61 - 1.5kW 2HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD90N4ZH28

ATV61 IP54 90 kW 3 ph 380...480V class A EMC

Schneider Electric

ATV61WD90N4CZH28

ATV61 IP54 90 kW 3 ph 380...480V class B EMC

Schneider Electric

ATV61WD90N4C

Variable speed drive ATV61 - 90kW 125HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD90N4

Variable speed drive, Altivar 61, 90kW, 125hp, 380 to 480V, EMC filter, IP54

Schneider Electric

ATV61WD90N4A24

Variable speed drive ATV61 - 90kW 125HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD75N4ZH28

ATV61 IP54 75kW 3 ph 380-480V class A EMC

Schneider Electric

ATV61WD75N4CZH28

ATV61 IP54 75kW 3 ph 380-480V class B EMC

Schneider Electric

ATV61WD75N4C

Variable speed drive ATV61 - 75kW 100HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD75N4A24

Variable speed drive ATV61 - 75kW 100HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD75N4

Variable speed drive, Altivar 61, 75kW, 100hp, 380 to 480V, EMC filter, IP54

Schneider Electric

ATV61WD55N4ZH28

ATV61 IP54 55kW 3 ph 380-480V class A EMC

Schneider Electric

ATV61WD55N4CZH28

ATV61 IP54 55kW 3 ph 380-480V class B EMC

Schneider Electric

ATV61WD55N4C

Variable speed drive ATV61 - 55kW 75HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD55N4A24

Variable speed drive ATV61 - 55kW 75HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD55N4

Variable speed drive, Altivar 61, 55kW, 75hp, 380 to 480V, EMC filter, IP54

Schneider Electric

ATV61WD45N4C

Variable speed drive ATV61 - 45kW 60HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD45N4CZH28

ATV61 IP54 45kW 3 ph 380-480V class B EMC

Schneider Electric

ATV61WD45N4A24

Variable speed drive ATV61 - 45kW 60HP - 380...480V - EMC filter - IP54

Schneider Electric

ATV61WD45N4

Variable speed drive, Altivar 61, 45kW, 60hp, 380 to 480V, EMC filter, IP54

Schneider Electric

ATV61WD37N4ZH28

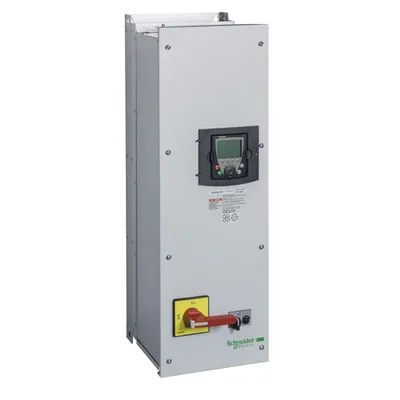

ATV61 37kW 400V 3PH EMC A IP54 Equipement

Schneider Electric

ATV61WD37N4CZH28

ATV61 IP54 37kW 3 ph 380-480V class B EMC

Schneider Electric

ATV61WD37N4C

Variable speed drive ATV61 - 37kW 50HP - 380...480V - EMC filter - IP54

Compare Altivar 61

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor power kW	Motor power hp	Maximum transient current	Net weight	Product certifications
ATV61WU15N4C	1.5 kW, 3 phases at 380...480 V	2 hp, 3 phases at 380...480 V	4.5 A for 60 s, 3 phases	19 kg	GOST; C-Tick; NOM 117; DNV; CSA; UL
ATV61WU15N4	1.5 kW, 3 phases at 380...480 V	2 hp, 3 phases at 380...480 V	4.5 A for 60 s, 3 phases	13 kg	DNV; GOST; NOM 117; UL; CSA; C-Tick
ATV61WD90N4ZH28	90 kW, 3 phases at 380...480 V	125 hp, 3 phases at 380...480 V	179.3 A for 60 s, 3 phases	92 kg	DNV; GOST; CSA; UL; C-Tick; NOM 117
ATV61WD90N4CZH28	90 kW, 3 phases at 380...480 V	125 hp, 3 phases at 380...480 V	179.3 A for 60 s, 3 phases	119 kg	UL; GOST; NOM 117; C-Tick; DNV; CSA
ATV61WD90N4C	90 kW, 3 phases at 380...480 V	125 hp, 3 phases at 380...480 V	179.3 A for 60 s, 3 phases	119 kg	CSA; UL; NOM 117; DNV; C-Tick; GOST
ATV61WD90N4	90 kW, 3 phases at 380...480 V	125 hp, 3 phases at 380...480 V	179.3 A for 60 s, 3 phases	92 kg	DNV; UL; C-Tick; CSA; NOM 117; GOST
ATV61WD90N4A24	90 kW, 3 phases at 380...480 V	125 hp, 3 phases at 380...480 V	179.3 A for 60 s, 3 phases	92 kg	UL; GOST; CSA; C-Tick; DNV; NOM 117
ATV61WD75N4ZH28	75 kW, 3 phases at 380...480 V	100 hp, 3 phases at 380...480 V	150.7 A for 60 s, 3 phases	92 kg	C-Tick; GOST; CSA; NOM 117; DNV; UL
ATV61WD75N4CZH28	75 kW, 3 phases at 380...480 V	100 hp, 3 phases at 380...480 V	150.7 A for 60 s, 3 phases	119 kg	CSA; NOM 117; C-Tick; DNV; GOST; UL
ATV61WD75N4C	75 kW, 3 phases at 380...480 V	100 hp, 3 phases at 380...480 V	150.7 A for 60 s, 3 phases	119 kg	C-Tick; GOST; DNV; UL; NOM 117; CSA
ATV61WD75N4A24	75 kW, 3 phases at 380...480 V	100 hp, 3 phases at 380...480 V	150.7 A for 60 s, 3 phases	92 kg	CSA; UL; C-Tick; DNV; NOM 117; GOST
ATV61WD75N4	75 kW, 3 phases at 380...480 V	100 hp, 3 phases at 380...480 V	150.7 A for 60 s, 3 phases	92 kg	UL; C-Tick; DNV; GOST; NOM 117; CSA
ATV61WD55N4ZH28	55 kW, 3 phases at 380...480 V	75 hp, 3 phases at 380...480 V	113.3 A for 60 s, 3 phases	92 kg	CSA; C-Tick; NOM 117; UL; DNV; GOST
ATV61WD55N4CZH28	55 kW, 3 phases at 380...480 V	75 hp, 3 phases at 380...480 V	113.3 A for 60 s, 3 phases	119 kg	GOST; CSA; NOM 117; UL; C-Tick; DNV
ATV61WD55N4C	55 kW, 3 phases at 380...480 V	75 hp, 3 phases at 380...480 V	113.3 A for 60 s, 3 phases	119 kg	UL; CSA; GOST; DNV; C-Tick; NOM 117
ATV61WD55N4A24	55 kW, 3 phases at 380...480 V	75 hp, 3 phases at 380...480 V	113.3 A for 60 s, 3 phases	92 kg	CSA; DNV; UL; NOM 117; GOST; C-Tick
ATV61WD55N4	55 kW, 3 phases at 380...480 V	75 hp, 3 phases at 380...480 V	113.3 A for 60 s, 3 phases	92 kg	CSA; DNV; C-Tick; GOST; UL; NOM 117
ATV61WD45N4C	45 kW, 3 phases at 380...480 V	60 hp, 3 phases at 380...480 V	93.5 A for 60 s, 3 phases	85 kg	DNV; CSA; NOM 117; C-Tick; UL; GOST
ATV61WD45N4CZH28	45 kW, 3 phases at 380...480 V	60 hp, 3 phases at 380...480 V	93.5 A for 60 s, 3 phases	85 kg	UL; CSA; C-Tick; DNV; NOM 117; GOST
ATV61WD45N4A24	45 kW, 3 phases at 380...480 V	60 hp, 3 phases at 380...480 V	93.5 A for 60 s, 3 phases	65 kg	NOM 117; C-Tick; CSA; DNV; UL; GOST
ATV61WD45N4	45 kW, 3 phases at 380...480 V	60 hp, 3 phases at 380...480 V	93.5 A for 60 s, 3 phases	65 kg	DNV; CSA; C-Tick; NOM 117; UL; GOST
ATV61WD37N4ZH28	37 kW, 3 phases at 380...480 V	50 hp, 3 phases at 380...480 V	78.6 A for 60 s, 3 phases	64 kg	CSA; GOST; NOM 117; UL; DNV; C-Tick
ATV61WD37N4CZH28	37 kW, 3 phases at 380...480 V	50 hp, 3 phases at 380...480 V	78.6 A for 60 s, 3 phases	85 kg	C-Tick; CSA; NOM 117; UL; GOST; DNV
ATV61WD37N4C	37 kW, 3 phases at 380...480 V	50 hp, 3 phases at 380...480 V	78.6 A for 60 s, 3 phases	85 kg	DNV; C-Tick; GOST; NOM 117; CSA; UL

Common to all listed parts

Range of product	Altivar 61
Product or component type	Variable speed drive
Product specific application	Pumping and ventilation machine
Component name	ATV61
power supply voltage	380...480 V - 15...10 %
supply number of phases	3 phases
Assembly style	Enclosed
Switching frequency	2...16 kHz adjustable; 8...16 kHz with derating factor
