800F 22 mm Round Operators Parts
Compare 800F 22 mm Round Operators
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Contact block configuration | Operator cap/button size | Operator cap color | Operator function | Operator type |
|---|---|---|---|---|---|

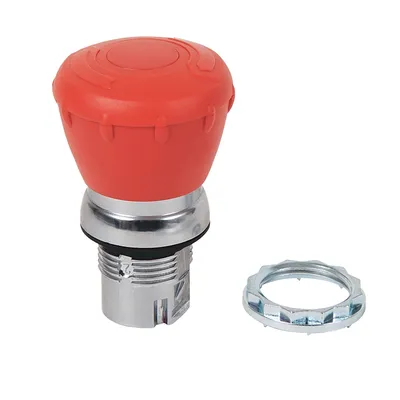

| 800FM-MT44MX12L | 1 NO/2 NC | 40 mm twist to release | Red | 22 mm twist to release E-stop | 40 mm twist to release |
| 800FM-MT34MX10 | 1 NO | 30 mm twist to release | Red | 22 mm twist to release E-stop | 30 mm twist to release |
| 800FM-MP42MX10V | 1 NO | 40 mm push-pull | Black | 22 mm push pull operator | 40 mm push-pull |
| 800FM-MP44MX22S | 2 NO/2 NC | 40 mm push-pull | Red | 22 mm push pull operator | 40 mm push-pull |

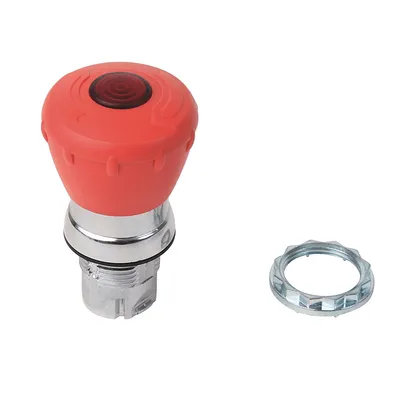

| 800FM-LMT44MN3RX02L | 2 NC | 40 mm twist to release lit | Red | 22 mm twist to release E-stop | 40 mm twist to release lit |
| 800FM-MP44MX04V | 4 NC | 40 mm push-pull | Red | 22 mm push pull operator | 40 mm push-pull |

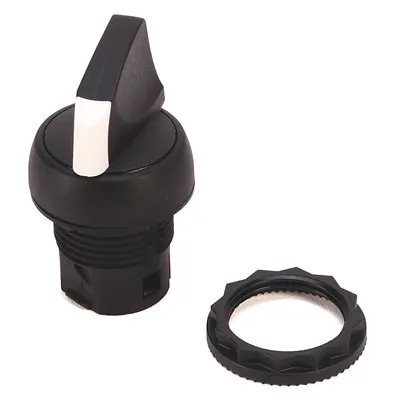

| 800FM-SL22PX21 | 2 NO/1 NC | — | Black | Spring return from left, 2 position | Selector switch - standard knob |
| 800FM-LMM44PN5RX11 | 1 NO/1 NC | — | — | 22 mm momentary push button | Push button |
| 800FM-LMP44PN3RX12L | 1 NO/2 NC | 40 mm illuminated push-pull | Red | 22 mm push pull operator | 40 mm illuminated push-pull |
| 800FM-MT44PX01L | 1 NC | 40 mm twist to release | Red | 22 mm twist to release E-stop | 40 mm twist to release |
| 800FM-MT64PX01S | 1 NC | 60 mm twist to release | Red | 22 mm twist to release E-stop | 60 mm twist to release |
| 800FM-MT44EMX22 | 2 NO/2 NC | 40 mm twist to release | Red with White EMO text | 22 mm twist to release E-stop | 40 mm twist to release |
| 800FM-MT34MX02V | 2 NC | 30 mm twist to release | Red | 22 mm twist to release E-stop | 30 mm twist to release |
| 800FM-MT64MX11L | 1 NO/1 NC | 60 mm twist to release | Red | 22 mm twist to release E-stop | 60 mm twist to release |
| 800FM-MT44MX20 | 2 NO | 40 mm twist to release | Red | 22 mm twist to release E-stop | 40 mm twist to release |
| 800FM-MT44PQ01 | 1 NC | 40 mm twist to release | Red | 22 mm twist to release E-stop | 40 mm twist to release |

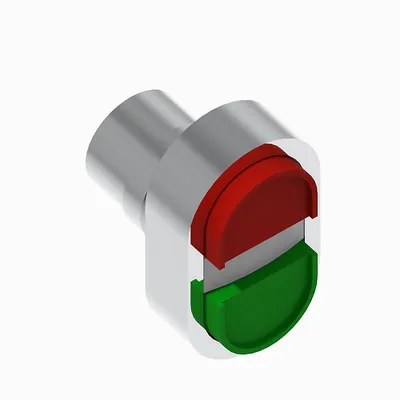

| 800FM-LU2E3E4 | — | — | — | 2 position multi-operator illuminated | Push button |
| 800FM-MM44MX01L | 1 NC | — | — | 22 mm momentary push button | Push button |
| 800FM-MP45MX12 | 1 NO/2 NC | 40 mm push-pull | Yellow | 22 mm push pull operator | 40 mm push-pull |
| 800FM-MM44MQ10 | 1 NO | — | — | 22 mm momentary push button | Push button |
| 800FM-MM42MX22 | 2 NO/2 NC | — | — | 22 mm momentary push button | Push button |

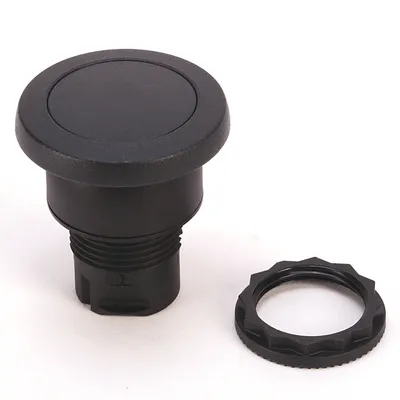

| 800FM-MM45MX20 | 2 NO | — | — | 22 mm momentary push button | Push button |

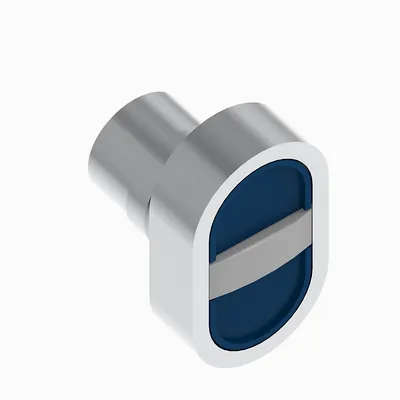

| 800FM-LU2F6F6 | — | — | — | 2 position multi-operator illuminated | Push button |

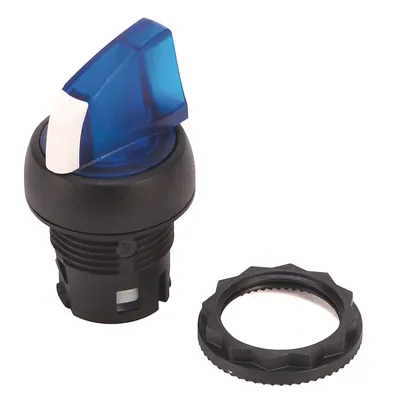

| 800FM-LSM36MQ3WX20 | 2 NO | — | Blue | Maintained, 3 position | Illuminated selector switch |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Operating temperature | -25 °C |
| Operator construction/material | Metal |
| Storage temperature | -40 °C |
