800F 22 mm Round Operators Parts
Compare 800F 22 mm Round Operators
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operator function | Operator type | Contact block configuration | Operator cap type | Operator cap color (lens) |
|---|---|---|---|---|---|
| 800FM-KR3529R | Spring return from right, 3 position | Keyed selector switch | — | — | — |
| 800FM-MT64MX03L | 22 mm twist to release E-stop | 60 mm twist to release | 3 NC | Mushroom head | — |
| 800FM-MT64MX01S | 22 mm twist to release E-stop | 60 mm twist to release | 1 NC | Mushroom head | — |
| 800FM-KM3504R | Maintained, 3 position | Keyed selector switch | — | — | — |
| 800FM-HR32CR | Spring return from right, 3 position | Knob lever selector switch | — | — | — |

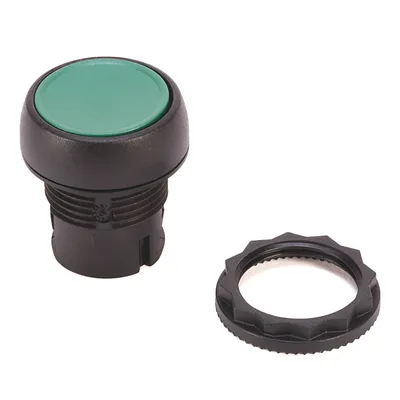

| 800FM-F1MQ10 | 22 mm momentary push button | Push button | 1 NO | Flush push-button | White |
| 800FM-F609 | 22 mm momentary push button | Push button | — | Flush push-button | Blue |
| 800FM-F509 | 22 mm momentary push button | Push button | — | Flush push-button | Yellow |

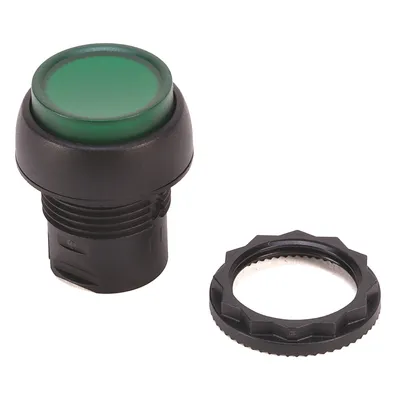

| 800FM-LE5PN5WX11 | 22 mm momentary push button | Push button | 1 NO/1 NC | Illuminated extended | Yellow |

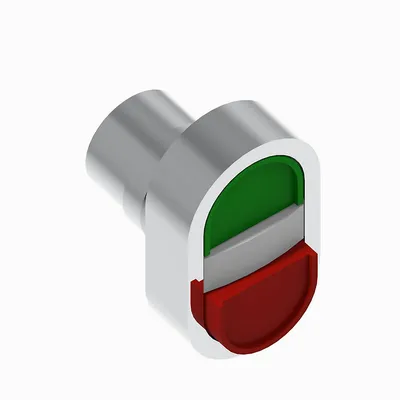

| 800FM-LU2E4FA | 2 position multi-operator illuminated | Push button | — | — | — |

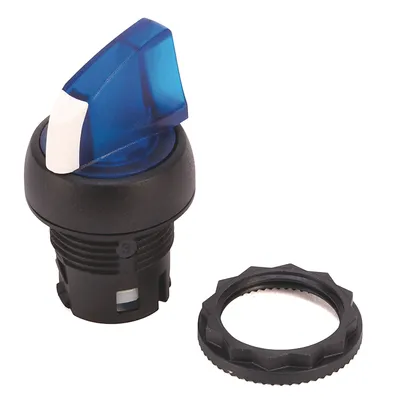

| 800FM-LSB37MN5WX22 | Spring return from both, 3 position | Illuminated selector switch | 2 NO/2 NC | — | — |

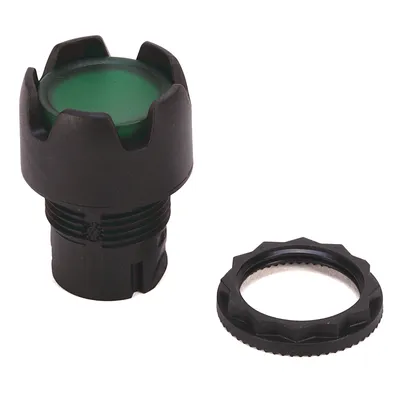

| 800FM-LG7MN3WQ20 | 22 mm momentary push button | Push button | 2 NO | Illuminated guarded | Clear |

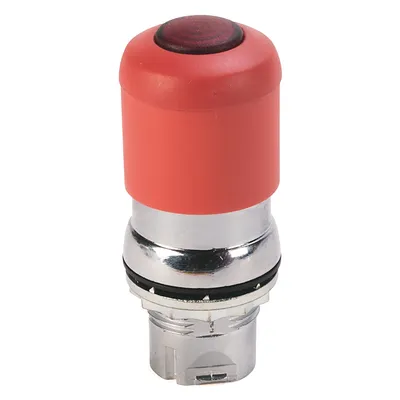

| 800FM-LMP34MN3RX12L | 22 mm push pull operator | 30 mm illuminated push-pull | 1 NO/2 NC | Mushroom head | — |
| 800FM-MM43MX21 | 22 mm momentary push button | Push button | 2 NO/1 NC | Momentary mushroom, 40mm | Green |
| 800FM-MM63MX10 | 22 mm momentary push button | Push button | 1 NO | Momentary mushroom, 60mm | Green |
| 800FM-MM44PX11 | 22 mm momentary push button | Push button | 1 NO/1 NC | Momentary mushroom, 40mm | Red |
| 800FM-MM44MX22 | 22 mm momentary push button | Push button | 2 NO/2 NC | Momentary mushroom, 40mm | Red |
| 800FM-MK44MX22 | 22 mm twist to release E-stop | 40 mm twist to release keyed | 2 NO/2 NC | Mushroom head | — |
| 800FM-MM44MX11V | 22 mm momentary push button | Push button | 1 NO/1 NC | Momentary mushroom, 40mm | Red |
| 800FM-MM43MX10V | 22 mm momentary push button | Push button | 1 NO | Momentary mushroom, 40mm | Green |
| 800FM-MM42MX01 | 22 mm momentary push button | Push button | 1 NC | Momentary mushroom, 40mm | Black |

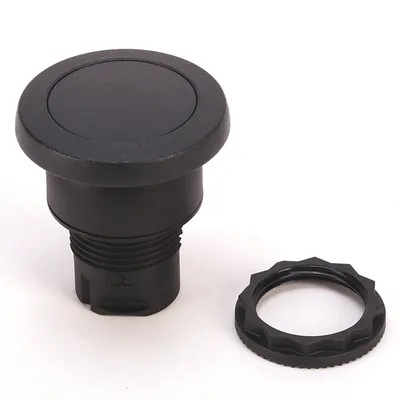

| 800FM-MM42MQ10 | 22 mm momentary push button | Push button | 1 NO | Momentary mushroom, 40mm | Black |
| 800FM-MM65PX10 | 22 mm momentary push button | Push button | 1 NO | Momentary mushroom, 60mm | Yellow |
| 800FM-MM65MX01 | 22 mm momentary push button | Push button | 1 NC | Momentary mushroom, 60mm | Yellow |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Operating temperature | -25 °C |
| Operator construction/material | Metal |
| Storage temperature | -40 °C |
