LB (Zone 2, Class I/Div. 2) Parts
Compare LB (Zone 2, Class I/Div. 2)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Power dissipation | Power consumption | Input: Voltage | Input: Current |
|---|---|---|---|---|---|

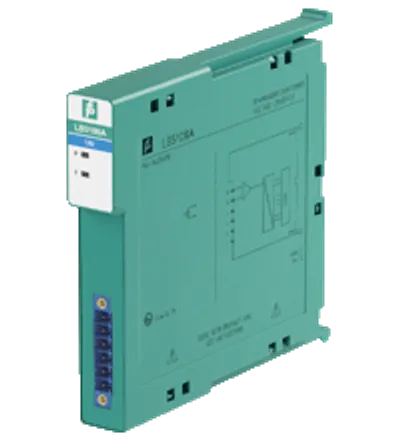

| LB5106A | 70182513 | 0.4 W | 0.4 W | 0.9 V Uo | 0.2 mA Io |

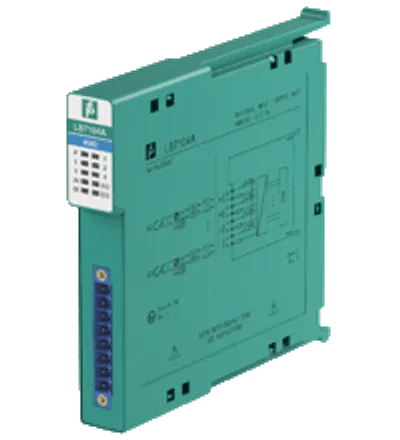

| LB7104E | 70176490 | 2 W | 3 W | 27 V Uo | 87 mA Io |

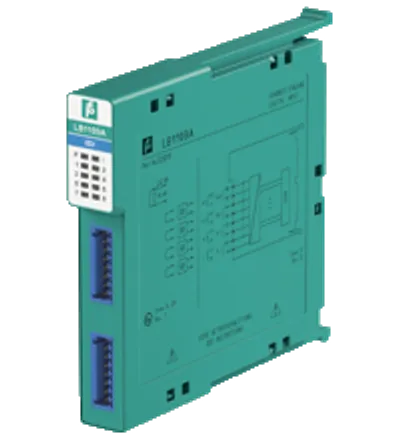

| LB1109A | 223078 | 1.55 W | 1.55 W | 10 V Uo | 13 mA Io |
| LB7104A | 254847 | 2 W | 3 W | 27 V Uo | 87 mA Io |

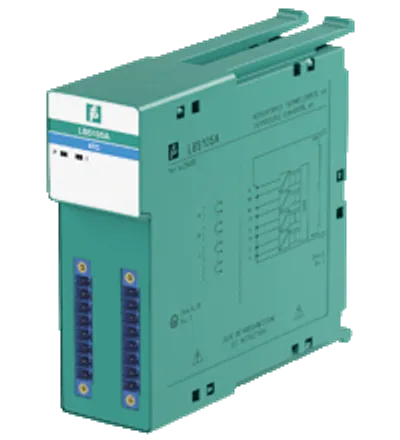

| LB5105A | 254813 | 0.75 W | 0.75 W | 1 V Uo | 71 mA Io |

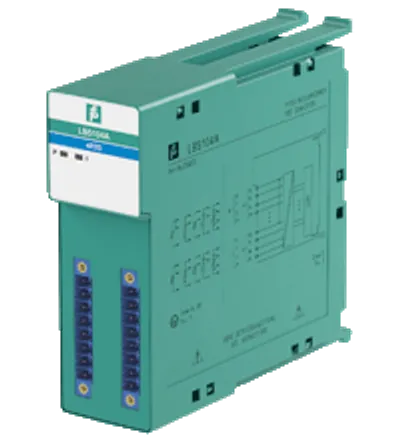

| LB5104A | 254810 | 0.35 W | 0.35 W | 7.14 V Uo | 70 mA Io |
| LB5102A | 254808 | 0.45 W | 0.45 W | 1.8 V Uo | 43 mA Io |

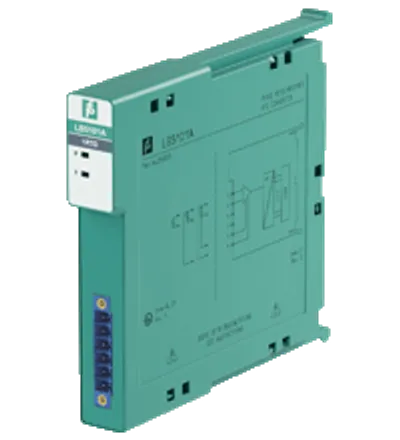

| LB5101A | 254805 | 0.4 W | 0.4 W | 2.7 V Uo | 43 mA Io |

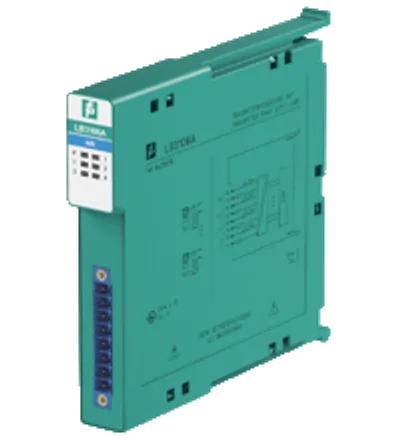

| LB3106A | 254716 | 1.5 W | 2.7 W | — | — |

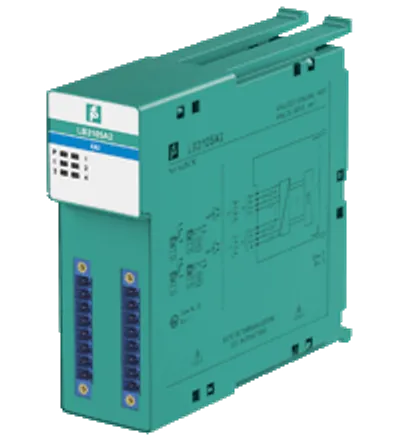

| LB3105A2 | 254710 | 1.5 W | 2.7 W | 0.7 V Uo | 2.78 mA Io |

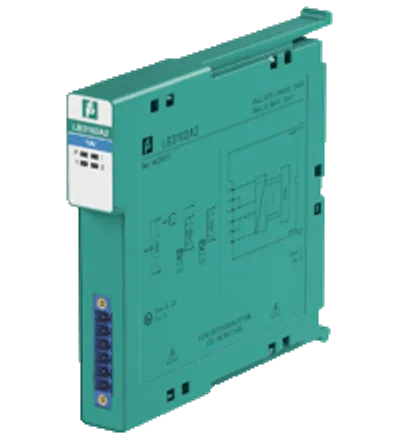

| LB3102A2 | 254707 | 0.75 W | 1.1 W | 0.7 V Uo | 7 mA Io |

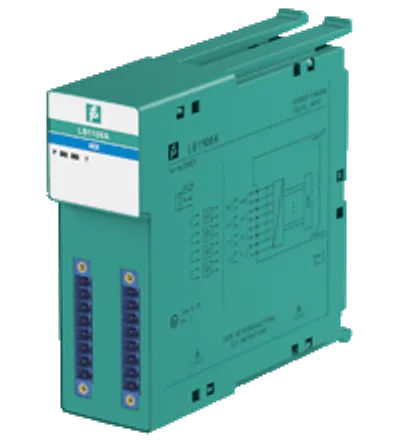

| LB1108A | 254631 | 0.95 W | 0.95 W | 14.9 V Uo | 15.7 mA Io |

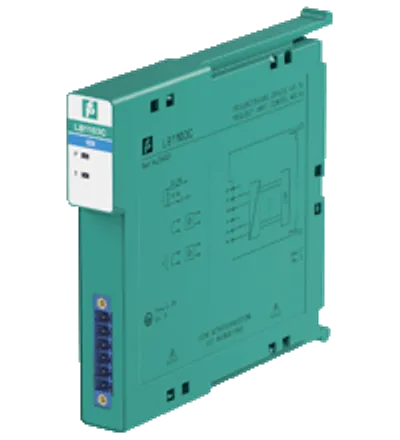

| LB1103A | 254622 | 0.65 W | 0.65 W | 10.5 V Uo | 23.3 mA Io |

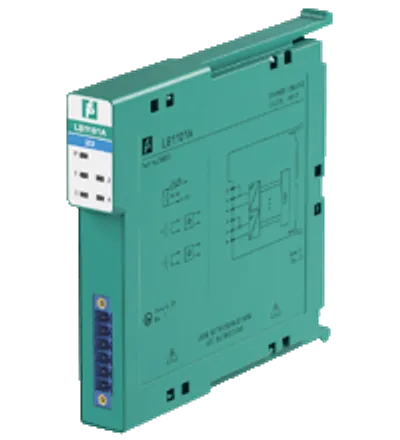

| LB1101A | 254620 | 0.65 W | 0.65 W | 12.6 V Uo | 12.8 mA Io |

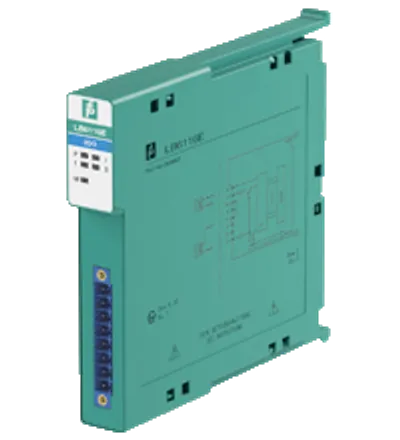

| LB6116E | 263862 | 1.95 W | 2.9 W | — | — |

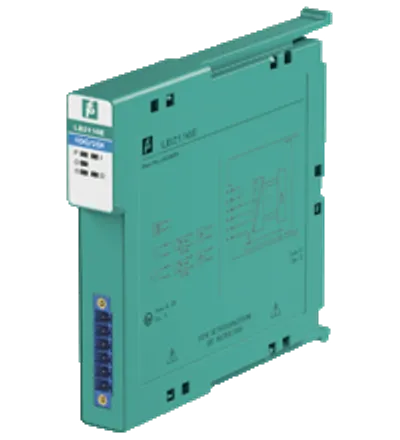

| LB2116E | 263859 | 1.3 W | 1.85 W | 10 V Uo | 13 mA Io |
| LB6117E | 263864 | 1.7 W | 2.7 W | — | — |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Connection | backplane bus |
| Interface | manufacturer-specific bus to standard com unit |
| Coding | optional mechanical coding via front socket |
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Altitude | max. 2000 m |
| Dimensions: Height | 100 mm |
