Control Stations (Ex e) Parts
Compare Control Stations (Ex e)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Operating current | Enclosure cover | Cover seal |
|---|---|---|---|---|---|
| SR.CS2* | T208065 | 250 V AC max. | 5 A max. | fully detachable , hinged | silicone |

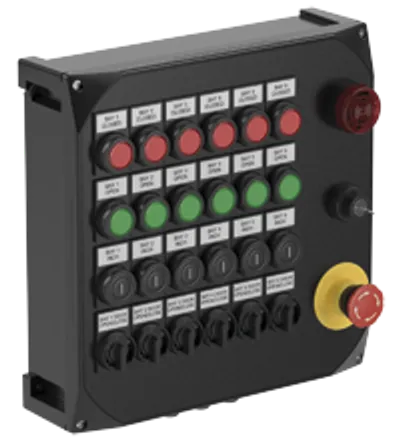

| GR.CS* | T189602 | 400 V AC max. | 16 A max. | fully detachable | foamed silicone |
| SR.CS* | T199946 | 400 V AC max. | 16 A max. | fully detachable | silicone |
| FXLS*.CS | — | 250 V AC max. | 16 A max. | fully detachable , concealed hinges | one piece closed cell silicone |
Common to all listed parts
| Terminal capacity | 2.5 mm2 |
| Cable entry | cable glands as per specification |
| Dimensions | see data table |
