Pepperl Fuchs SR.CS*

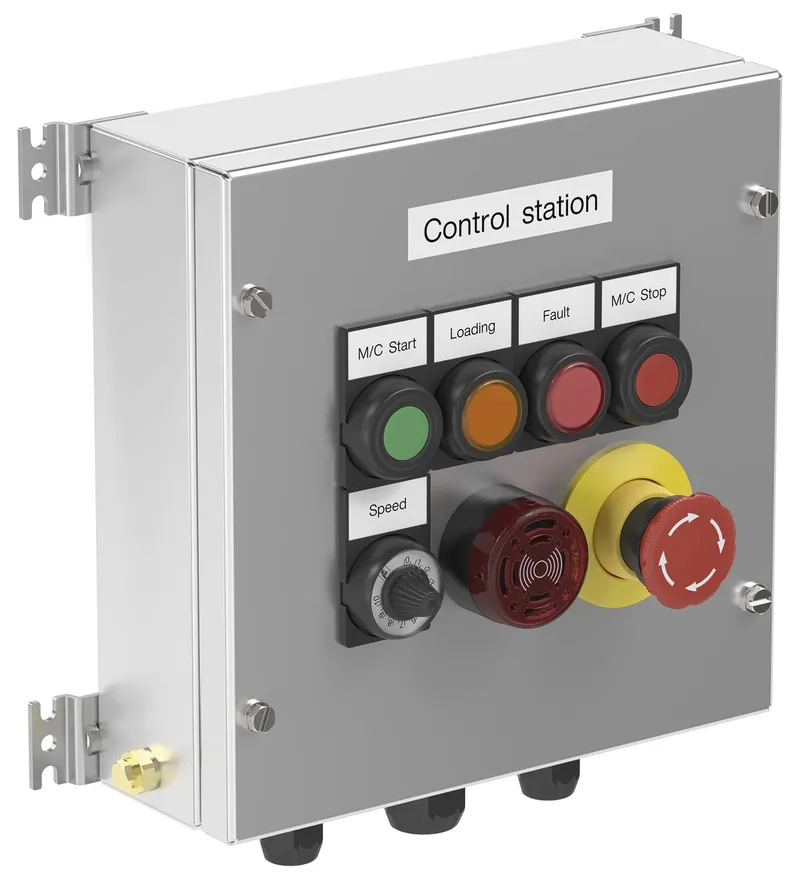

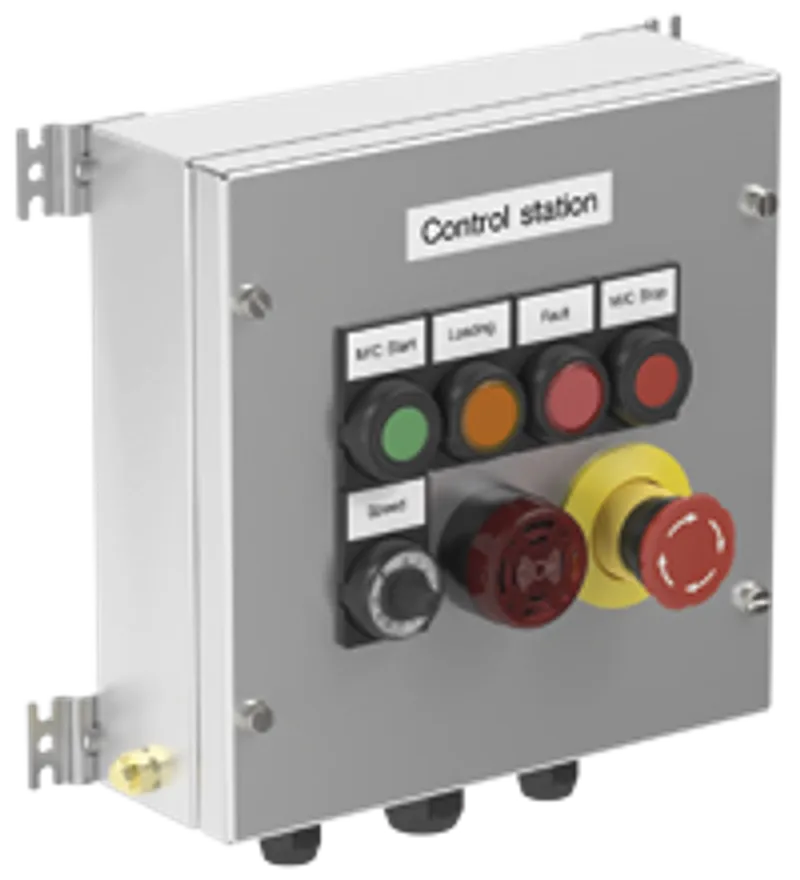

Control Stations Ex e, Stainless Steel, cover-mounted contact modules. Stainless Steel enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex db eb, Ex ib and Ex tb certified, Up to 102 operators per control station, 5 enclosure size options, Return Flange Sealing provides Drain Channel, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Customizable configuration of gland plates, ground bolt and hinges as per specification, Option for vertical or horizontal mounting provides high flexibility. Operating voltage: 400 V AC max.. Operating current: 16 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw , optional quarter-turn key locks. Cover seal: silicone. Degree of protection: IP66. Cable entry: cable glands as per specification. Gland plate on face(s)optional: . Gland plate on face(s): optional. Material: . Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plateoptional 3 mm or 6 mm AISI 316L (1.4404) stainless steelFinishbrushed: . Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Gland plate: optional 3 mm or 6 mm AISI 316L (1.4404) stainless steel. Finish: brushed. Mass: see data table valid for empty enclosure, will increase according to integrated components. Dimensions: see data table. Mounting: screws , optional mounting brackets enclosed. Grounding: M6 internal/external brass nickel-plated grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to enclosure body. Ambient temperature: -50 ... 55 °C (-58 ... 131 °F) depending on integrated components. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb IIC T* Gb, Ex tb IIIC T** Db orEx db eb mb IIC T* Gb, Ex tb IIIC T** Db orEx db eb op pr IIC T* Gb, Ex tb IIIC T** Db orEx ib IIC T* Gb, Ex tb IIIC T** Db orEx db eb ib mb op pr IIC T* Gb, Ex tb IIIC T** Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C: . Marking: II 2 GD Ex db eb IIC T* Gb, Ex tb IIIC T** Db orEx db eb mb IIC T* Gb, Ex tb IIIC T** Db orEx db eb op pr IIC T* Gb, Ex tb IIIC T** Db orEx ib IIC T* Gb, Ex tb IIIC T** Db orEx db eb ib mb op pr IIC T* Gb, Ex tb IIIC T** Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C T4/T130 °C @ Ta +55 °C. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. ECAS approval: 24-11-132356/E24-11-137186/NB0002. IA approval: MASC S/22-8362X. CCC approval: 2020322304002545. Degree of protection: EN60529. CE marking: 2829. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: Mounting plate M6 internal/external stainless steel grounding bolt cover hinges stainless steel AISI 316L gland plate 3 mm AISI 316L (1.4404) stainless steelgland plate 6 mm AISI 316L (1.4404) stainless steel M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks stainless steel A4 (V4A) engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label cover padlock facility eyebolts door handles. Control elements: small footprint max. 102 see data table all NC contacts have a direct opening action for emergency stop functions
